PAR 36 LED Lights

Models 11.8516 / 11.8534 / 11.8552

  • Replace conventional halogen and incandescent PAR 36 bulbs with energy-efficient, long-lasting LEDs.
  • Available in three intensities - each designed to accommodate different budgets and applications.
  • Created for both exterior and interior mounting with fully-encapsulated electronics that resist moisture, vibration and corrosion. A clear lens protects LEDs from dust and debris.
  • Single color LED arrays are available in your choice of amber, blue, green, red or white.
  • A remote flasher is required (sold separately) although a steady burn option is available upon request. (If an internal flasher is desired, please consider our All-in-One PAR 36 lamps.)

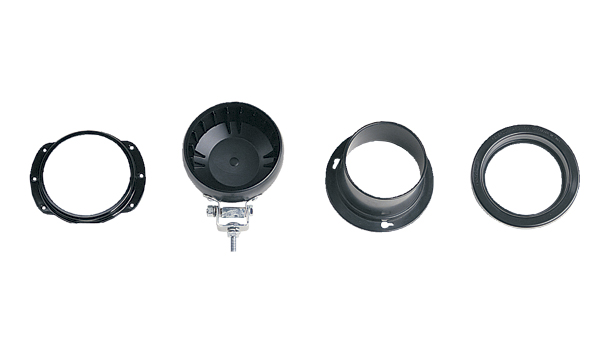

  • A variety of mounting options is offered - each sold separately.
  • Measures 1-1/4" deep with a diameter of 4-3/8".
  • Standard 18" pigtail wiring / Back exit
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs Features
11.8516 0.20A 16 Black waterproof base
11.8534 0.30A 34 Metalized / waterproof base
11.8552 0.65A 52 Black waterproof base
Suggested Retail Price
Suggested retail price
11.8516 PAR 36 LED Light - Standard $   57.86
11.8534 PAR 36 LED Light - Mega-Bright $   76.30
11.8552 PAR 36 LED Light - Ultra-Bright $ 110.52

PAR 36 LED Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch $ 43.78
11.1005 Flasher - 7 Basic Patterns $ 41.32
11.1005SF Flasher - 7 Strobe Patterns $ 41.32
11.1005.STT Flasher - Stop / Tail / Turn $ 55.36
11.1005STT.BTL Tail Light Flasher $  55.36
11.1010SF 4-Output LED Flasher $ 70.28
11.1012 LED Micro Switch $ 53.76
11.1025.006 6 O/P Rotary Switch w/flasher $ 98.06
11.1025.008 8 O/P Rotary Switch w/flasher $ 98.06
11.1032 LED Micro Switch w/flasher $ 81.18
11.6051 Double-Stick Tape - per foot $   4.04
11.6436BLK Flush Mount Ring & Gasket $ 23.14
17.0846 Stud-Mount Housing $ 20.98
90.6175 Sun Visor Mounting Ring $   6.66
90.6756 Recessed Rubber Ring $   2.68
Instructions
11.8516 PAR 36 LED Light - Standard View PDF
11.8552 PAR 36 LED Light - Ultra-Bright View PDF
