SHO-OFF® All-in-One
PAR 36 LED Lamp

Model 12.8512

  • All-in-One design simplifies installation - no separate flasher to install.
  • Internal flasher has 29 user-selectable patterns. Selected pattern resumes after power interruption.
  • Two 18W LED modules produce ultra-bright light.
  • Wide-angle reflector disperses light even in bright sunshine.
  • Designed to permit synchronization of multiple lamps.
  • Available in solid or split arrays of amber, blue, green, red or white LED modules.
  • Clear lens cover protects LEDs from dust and debris.
  • Five year warranty on LEDs.
  • Made in the USA.
Specifications
Voltage: 12 volt
Amperage: 0.5 amps max
Dimensions: 1-1/4" D x 4-3/8" Diameter
Wiring: 15' power cable
Suggested Retail Price
Suggested retail price
12.8512 All-in-One Par 36 LED Lamp $ 213.56
Parts and Accessories
11.1002 LED Double Switch $  42.50
11.1012 LED Micro Switch $  52.20
11.6051 Double Stick Tape $    3.92
11.6436BLK Flush-Mount Ring $  22.46
17.0846 Stud-Mount Rubber Housing $  20.36
90.6175 Sun Visor Mounting Ring $    6.46
90.6756 Recessed Rubber Ring $    2.60

All-in-One PAR 36 LED Lamp

Click on thumbnail image to open enlarged view.

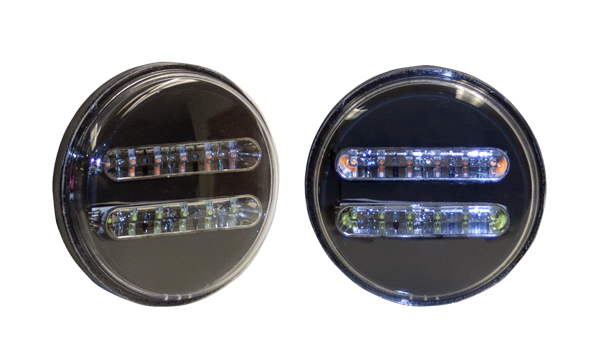

All-in-One PAR 36 LED with internal flasher

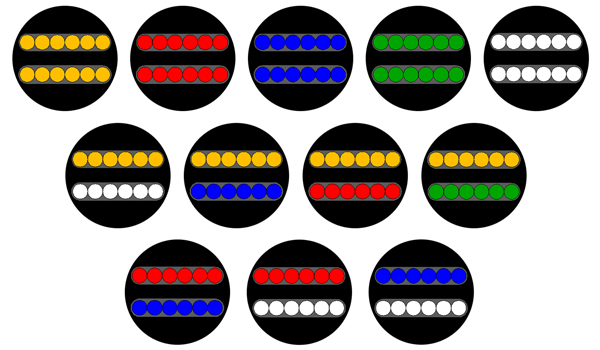

Available in solid and split LED arrays

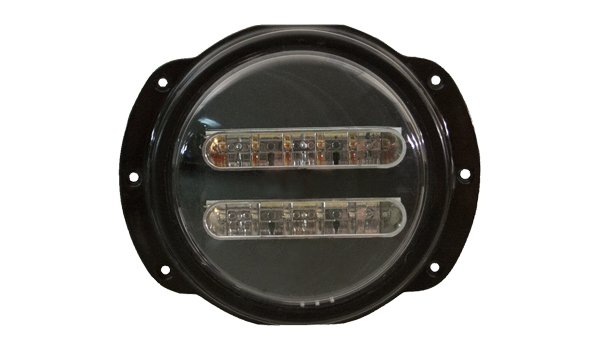

All-in-One PAR 36 in Flush-Mount Bracket

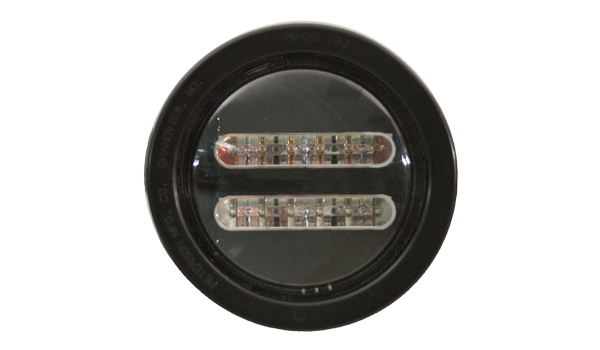

All-in-One PAR 36 in Recessed Ring

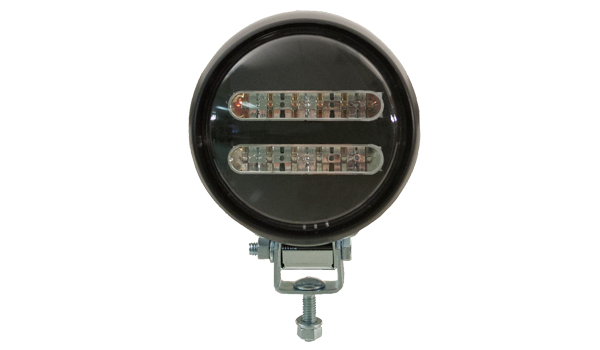

All-in-One PAR 36 in Stud-Mount Housing

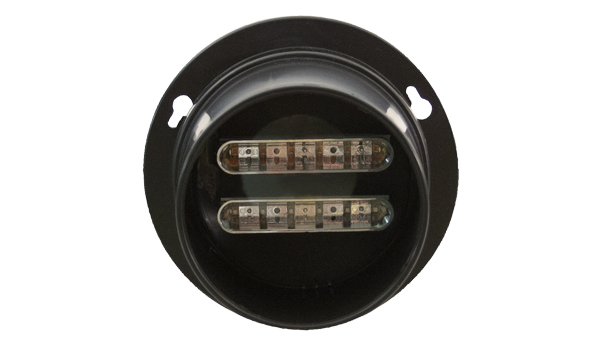

All-in-One PAR 36 in Sun Visor Mounting Ring


Flash Patterns
1. Single (all) 16. Quad ON (split)
2. Double (all) 17. Triple (split)
3. Quad (all) 18. 12 Flash (split)
4. 8 Flash (all) 19. Random 11-18
5. Double ON (all) 20. ½ Steady / ½ Single
6. Quad ON (all) 21. ½ Steady / ½ Double
7. Triple (all) 22. ½ Steady / ½ Quad
8. 12 Flash (all) 23. ½ Steady / ½ 8 Flash
9. Steady (all) 24. ½ Steady / ½ Dbl - ON
10. Random 1-8 25. ½ Steady / ½ Quad - ON
11. Single (split) 26. ½ Steady / ½ Triple
12. Double (split) 27. ½ Steady / ½ 12 Flash
13. Quad (split) 28. Random 20-27
14. 8 Flash (split) 29. Random 1-8, 11-18, 20-27
15. Double ON (split)
Instructions
12.8512 Instructions View PDF
