LED Double Switch

Model 11.1002 / 11.1002GSM

  • Reliable and compact, this 12V double switch panel provides a simple way to control LED lights or accessories.
  • A powder-coated, L-shaped, aluminum bracket houses (1) 20A lighted ON/OFF switch and (1) 15A momentary MODE switch.
  • Model 11.1002 has a positive POWER rocker switch and a positive MODE momentary switch.
  • Model 11.1002GSM has a positive POWER rocker switch and a ground-switched MODE momentary switch for use with flashers or lights requiring ground-switched mode selection.
  • Mounts under dash with screws (provided).
  • Comes with a pre-attached 10-foot wiring harness.
  • Overall dimensions: 2" H x 1-3/4" D x 2" L.
  • Made in the U.S.A.
Specifications
Model Power Mode Total
11.1002 20A Max (+) 15A Max (+) 20A Max
11.1002GSM 20A Max (+) 15A Max (-) 20A Max
Model and Description
Call for pricing
11.1002 LED Double Switch
11.1002GSM LED Double Switch w/
Ground-Switching Momentary

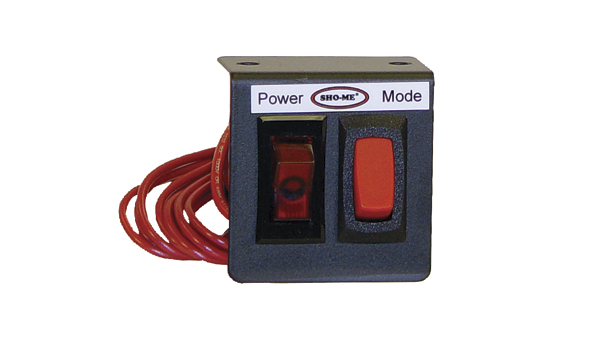

LED Double Switch

Click on thumbnail image to open enlarged view.

Link to larger image.







Instructions
11.1002 LED Double Switch View PDF
11.1002GSM LED Double Switch w/
Ground-Switching Momentary		 View PDF
