Bi-Color PAR 36 LED Light Kit

Model 12.84201

  • Dual function, spot-flood LED lights in rubber housings.
  • Low amperage lights with traditional styling replace conventional halogen & incandescent PAR 36 bulbs.
  • Features an outer ring of 20 high-intensity LEDs in a metallized array and a single 5W LED in the center.
  • The center LED can be wired to flash alternately or simultaneously with the outer ring of LEDs.

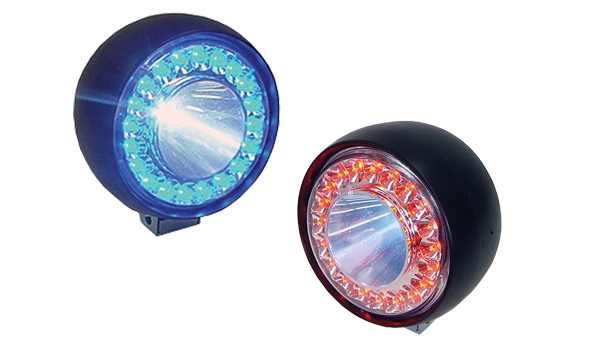

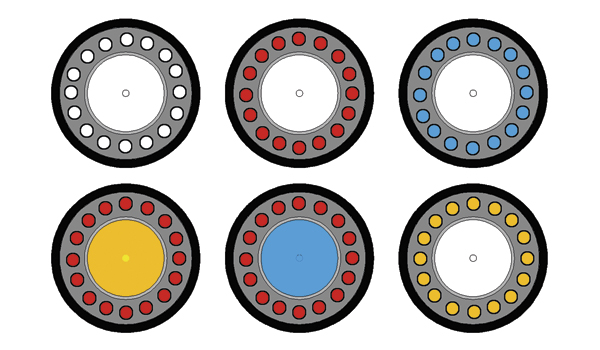

  • All LEDs are available in amber, blue, green, red or white.
  • Weather-resistant black rubber housings have adjustable pedestal brackets.
  • Clear polycarbonate lenses.
  • Five year warranty on LEDs.

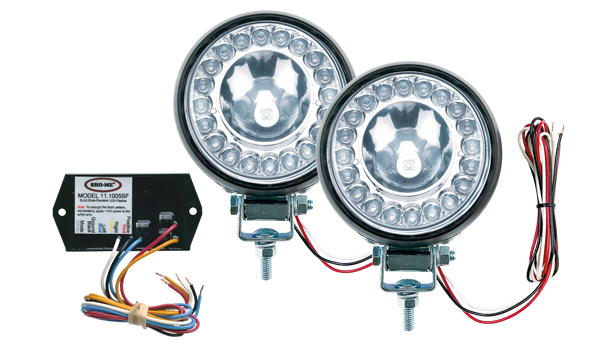

  • All kits include (2) Bi-Color PAR 36 LED lights with rubber housings and adjustable brackets and (1) LED flasher with seven strobe-style flash patterns. Switch sold separately.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 0.5A max
Dimensions: 6" H x 4-3/4" W x 4" D (mounted)
Suggested Retail Price
Suggested retail price
12.84201 2-Light Kit $  307.98
Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch $    42.50
11.1012 LED Micro Switch $    52.20

Bi-Color PAR 36 LED Kit

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.




Flash Patterns
1. Double Simultaneous Flash
2. Quad Simultaneous Flash
3. Double Alternating Flash
4. Quad Alternating Flash
5. Quint Alternating Flash
6. MEGA Alternating Flash
7. Random
Instructions
12.84201 Instructions View PDF
