PAR 36 LED Kits

Models 11.1740 / 11.1742 / 11.1744
Models 11.1741 / 11.1743 / 11.1745 with switch

  • Low amperage lights with traditional styling replace conventional halogen & incandescent PAR 36 bulbs.

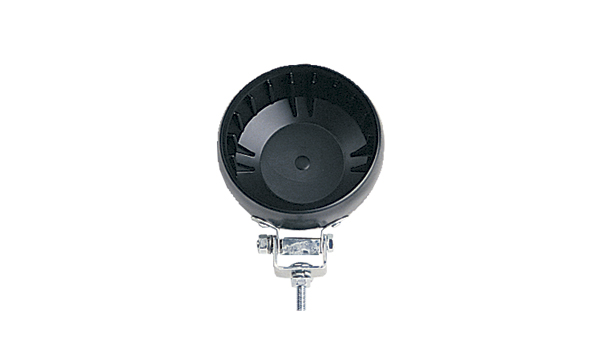

  • Waterproof LED lamps and flashers are housed in weather-proof rubber housings with adjustable brackets.

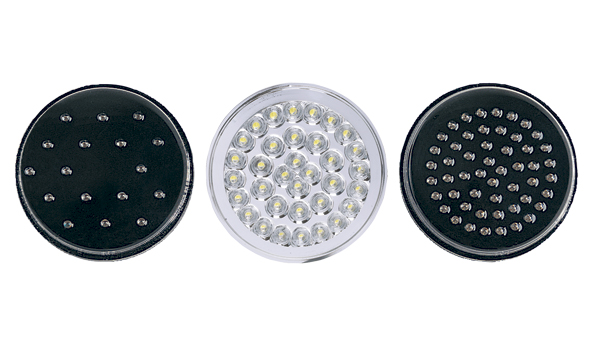

  • LED arrays are available in three intensities: Standard intensity has 16 LEDs in a waterproof base; Mega-Bright intensity has 34 LEDs in reflective chambers in a waterproof base; and Ultra-Bright intensity has 52 LEDs in a waterproof base.
  • Seven selectable flash patterns.

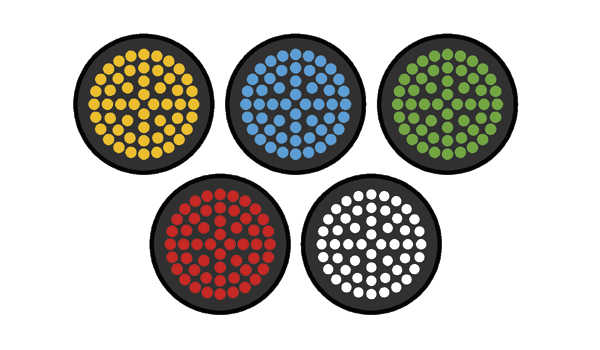

  • Cool-burning, long-lasting LEDs are available in amber, blue, green, red or white.
  • Polycarbonate outer lenses protect LEDS and are available in amber, blue, clear, green or red.

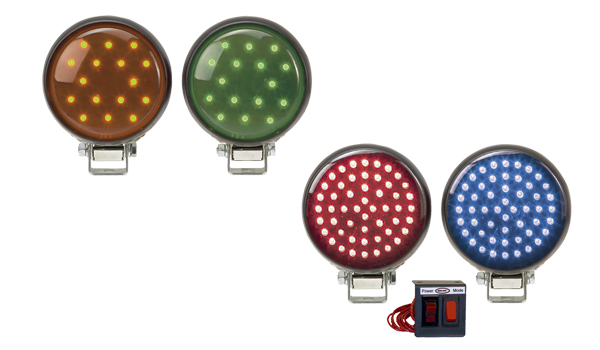

  • All kits include (2) Standard, Ultra-Bright or Mega-Bright PAR 36 LED lamps, flashers, rubber housings with adjustable brackets and pigtail wiring.

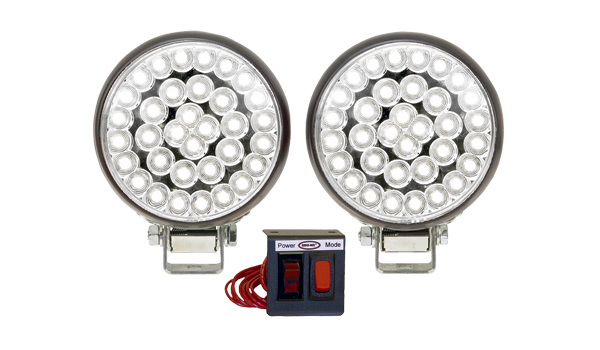

  • Models 11.1741, 11.1743 and 11.1745 also include (1) Model 11.1002 LED Double Switch.
  • Individual lamps measure 6" H x 4" D x 4-3/4" L.
  • 12V standard, also available in 24V upon request.
  • Made in the U.S.A.
Specifications
Model Amps LEDs
11.1740 / 11.1741 0.2 Max per Light 16 per Light
11.1742 / 11.1743 0.65 Max per Light 52 per Light
11.1744 / 11.1745 0.3 Max per Light 34 per Light
Suggested Retail Price
Suggested retail price
11.1740 (2) Standard PAR 36 LED Lamps $ 199.06
11.1741 (2) Standard Lamps, Switch $ 243.68
11.1742 (2) Ultra-Bright PAR 36 LED Lamps $ 304.42
11.1743 2) Ultra-Bright Lamps, Switch $ 349.06
11.1744 (2) Mega-Bright PAR 36 Lamps $ 280.54
11.1745 (2) Mega-Bright Lamps, Switch $ 324.26
Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch $  43.78
11.1012 LED Micro Switch $  53.76

PAR 36 LED Kits

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Seven Flash Patterns
1. Double Alternating
2. Quad Alternating
3. Quint Alternating
4. Double Simultaneous
5. Quad Simultaneous
6. MEGA Alternating
7. Random
Instructions
11.1740 (2) Standard PAR 36 LED Lamps PDF
11.1741 (2) Standard Lamps, Switch PDF
11.1742 (2) Ultra-Bright PAR 36 LED Lamps PDF
11.1743 2) Ultra-Bright Lamps, Switch PDF
11.1744 (2) Mega-Bright PAR 36 LED Lamps PDF
11.1745 (2) Mega-Bright Lamps, Switch PDF
