LED Flasher with
Basic Patterns

Model 11.1005

  • Create an effective warning system with this dependable, solid-state, two-output LED flasher with seven basic flash patterns.
  • Epoxy-sealed electronics provide reliable operation and protection against moisture, vibration and shock.
  • Standard 12V; also available in 24V upon request.
  • Surface mounts with screws (provided).
  • Measures 2" H x 1/2" D x 4" L
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps per O/P Total Amps
11.1005 2 3A Max each 6A Max
Instructions
11.1005 LED Flasher - Basic Patterns View PDF

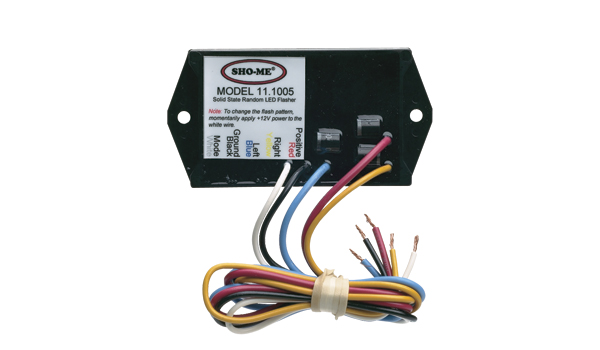

LED Flasher with Basic Patterns

Click on thumbnail image to open enlarged view.

Link to larger image.







Flash Patterns
1. Single Flash
2. Double Flash
3. Quad Flash
4. Alternating Flash
5. Alternating Variable Speed
6. Simultaneous Variable Speed
7. Random
