Stop / Tail / Turn
LED Flashers

Models 11.1005STT / 11.1010STT

  • Solid-state LED flashers coordinate auxiliary lights with brake lights, tail lights and turn signals.
  • Vehicle brake and turn light functions override the auxiliary light strobe-flash patterns permitting normal function of the brake lights and turn signals.
  • Seven flash patterns are available for auxiliary lights.
  • Anytime the vehicle brake lights are on, the auxiliary lights burn steadily at high-intensity.
  • Anytime a turn signal is on, the corresponding auxiliary lights flash at the same rate at high intensity.
  • If the auxiliary lights are flashing when the tail lights activate, the auxiliary lights continue to flash at high intensity. If the auxiliary lights are turned off when the vehicle tail lights activate, the auxiliary lights burn steadily at low intensity.
  • Epoxy-sealed to ensure reliable operation and protect against moisture, vibration and shock.
  • Surface mounts with screws (provided).
  • Standard 12V; also available in 24V upon request.
  • Model 11.1005STT measures 2" H x 1/2" D x 4" W. Model 11.1010STT is 3-3/4" H x 7/8" D x 3-5/8" W.
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps per O/P Total Amps
11.1005STT 2 3A Max each 6A Max
11.1010STT 4 2A Max each 6A Max
Suggested Retail Price
Suggested retail price
11.1005STT 2 O/P Flasher - Stop / Tail / Turn $  59.30
11.1010STT 4 O/P Flasher - Stop / Tail / Turn $  64.78

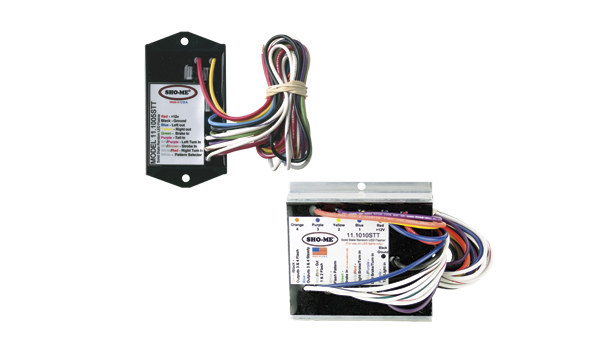

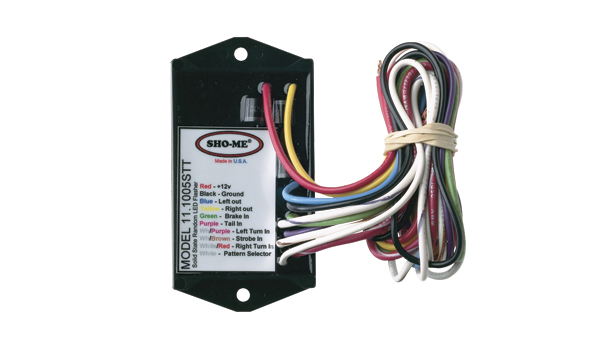

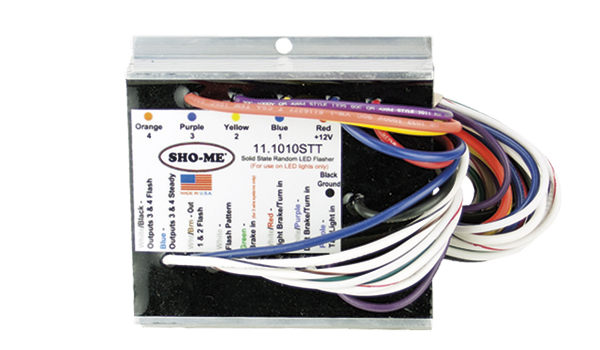

Stop / Tail / Turn LED Flashers

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.





Flash Patterns
1. Quad Alternating
2. MEGA Alternating
3. Double Alternating
4. Quint Alternating
5. Double Simultaneous
6. Quad Simultaneous
7. Random
Instructions
11.1005STT 2 O/P Flasher - Stop / Tail / Turn PDF
11.1010STT 4 O/P Flasher - Stop / Tail / Turn PDF
