LED By the Inch Lights

Model 11.8300 Series and 11.8300F Series

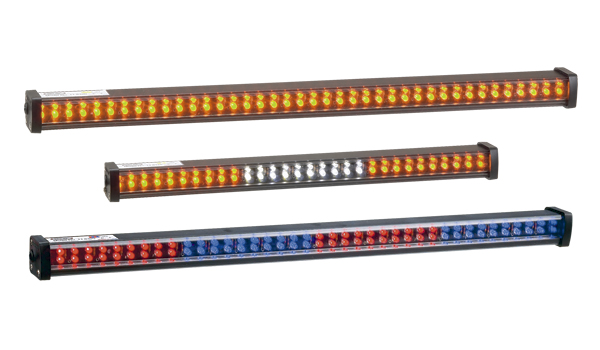

  • These versatile BTI LED Lights are available in 1" increments from 5 to 60 inches long. Each inch has four high-intensity LEDs.

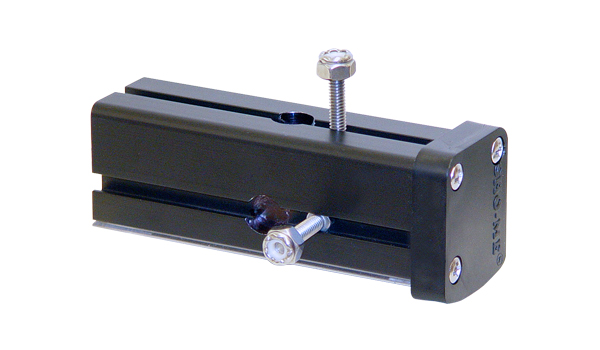

  • A rugged aluminum housing has T-slot mounting channels on the back and underside to simplify installation.

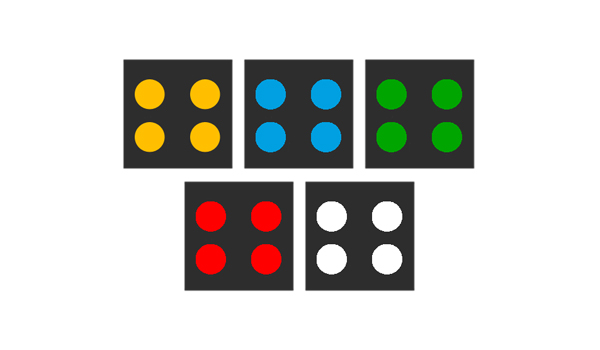

  • Solid or split arrays of amber, blue, green, red or white LEDs. Choose one color for every four LEDs.
  • Model 11.8300 is steady burning. A remote switch and LED flasher or signal stick controller is required. (Sold separately.)
  • Model 11.8300F has a seven pattern internal flasher. Remote switch sold separately. Hardwire standard - optional adapter plug.

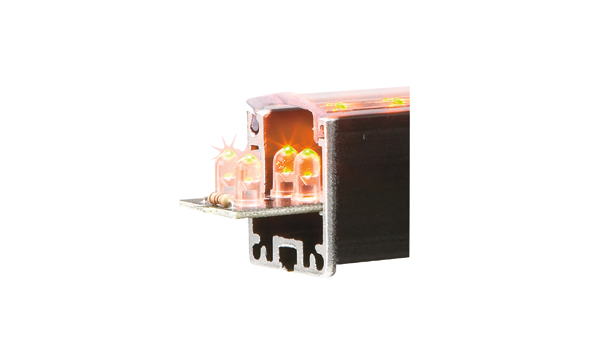

  • A clear lens cover protects LEDs from dust and damage.
  • L brackets are provided with every light.
  • Optional potting permits installation in wet locations. (Available upon request at no extra charge.)
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 0.05 amps max per inch
Dimensions: 1-3/8" H x 1-1/2" D x 5" to 60" L
Wiring: Standard 10' power cord (minimum)
Suggested Retail Price
Aluminum Housing / No Flasher
Suggested retail price
11.8305 5" Minimum Length $   75.16
  For each additional inch: $   12.42
Aluminum Housing / Internal Flasher
11.8305F 5" Minimum Length $ 115.30
  For each additional inch: $   12.42

By The Inch Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns - 11.8300F Models Only
1. Alternating Double
2. Alternating Quad
3. Alternating Quint
4. Alternating MEGA
5. Simultaneous Double
6. Simultaneous Quad
7. Random
Parts and Accessories
Suggested Retail Price
*  Flashers required for 11.8300 Models only.
11.1000 * Signal Stick Controller $ 357.76
11.1002 LED Double Switch $  42.50
11.1005 * Flasher - Original Patterns $  40.12
11.1005SF * Flasher - 7 Strobe Patterns $  40.12
11.1005SF-27 * 27 Pattern LED Flasher $  52.94
11.1005.STT * Flasher - Stop/Turn/Tail $  53.74
11.1005STT.BTL *Flshr (Stop, Turn, Bright Tail) $  53.74
11.1010SF * 4-Output LED Flasher $  68.24
11.1012 LED Micro Switch $  52.20
11.1025 * Micro-Rotary Switch/Flsher $  95.20
11.1032 * Micro Switch w/ Flasher $  78.82
11.4471 Flat Glass Bracket with Tape $  21.86
11.4472.BTI L Brackets - pair $    8.10
11.4475 Glass Bracket - pair $    6.60
11.8310BRKT Dash Bracket $  15.58
11.8325BRKT Headliner Bracket $  17.76
Instructions
11.8300 Positive Switched View PDF
11.8300F Internal Flasher View PDF
11.8300GS Negative Switched View PDF
