Original BTI LED Lights

Model 11.8200 Series and 11.8200F Series

  • These lights can fit almost anywhere!
  • Waterproof, variable-length, strip lights fit in narrow spaces from 1" to 60" long. Ideal for under tailgates and running boards, as well as in small spaces on ATVs, snowmobiles, motorcycles and RVs.
  • Each inch of ABS plastic housing contains four epoxy-encapsulated LEDs which are moisture, vibration and corrosion resistant.

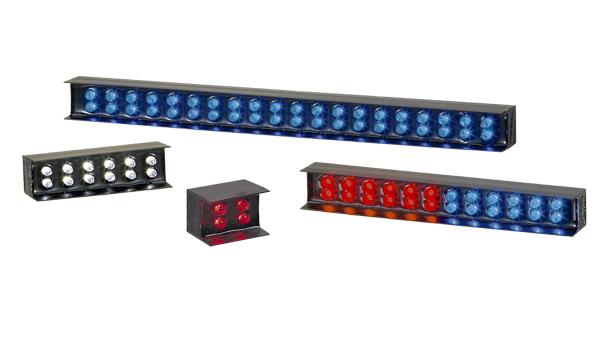

  • Customize your lighting with solid or split arrays of amber, blue, green, red or white LEDs. (Lengths of 1" to 5" are available in single colors only.)
  • Model 11.8200 Series must be connected to a remote switch and LED flasher or a signal stick controller. (Sold separately.) These lights are available in 1" increments from 1" to 60" long. Comes with a 10" power cord (minimum) for permanent installation.
  • Model 11.8200F Series has a seven pattern internal flasher. These lights are available in 1" increments from a minimum length of 4" to an incredible 60" long. Comes with a 10" power cord (minimum length) for permanent installation. An optional adapter plug is also available.

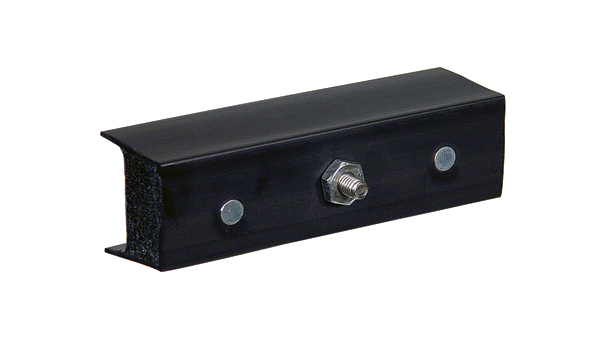

  • Integral mounting bolts that extend from the back of the housing facilitate a variety of mounting options.

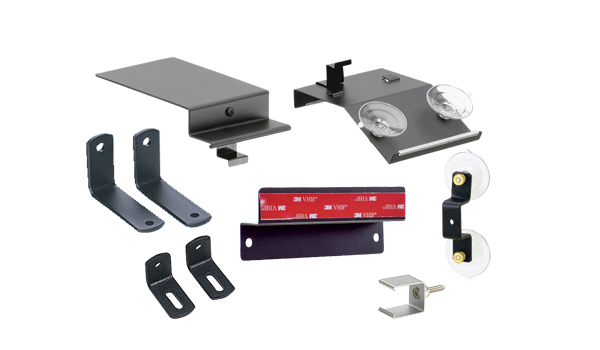

  • L brackets are included for lengths over two inches. A variety of other mounting brackets are sold separately.
  • For added durability consider optional metal housings.
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amp Dimensions
11.8200 Series 0.04A/ inch 1" H x 1" D x 1" - 60" L
11.8200F Series 0.04A/ inch 1" H x 1" D x 4" - 60" L
Suggested Retail Price
Suggested retail price
11.8201 BTI Light Steady-Burn - 1"
$   23.84
  For each additional inch: $   11.64
11.8204F BTI Light w/ Internal Flasher - 4"
$ 100.08
  For each additional inch: $   11.64

Original By The Inch Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns - 11.8200F Series Only
1. Alternating Double
2. Alternating Quad
3. Alternating Quint
4. Alternating MEGA
5. Simultaneous Double
6. Simultaneous Quad
7. Random
Parts and Accessories
Suggested Retail Price
*  Flashers required for 11.8200 Series only.
11.1000 Signal Stick Controller $ 368.50
11.1002 LED Double Switch $  43.78
11.1005 Flasher - 7 Basic Patterns $  41.32
11.1005SF Flasher - 7 Strobe Patterns $  41.32
11.1005SF-27 27 Pattern LED Flasher $  54.52
11.1005.STT Flasher - Stop/Tail/Turn $  55.36
11.1005STT.BTL Tail Light Flasher $  55.36
11.1010SF 4-Output LED Flasher $  70.28
11.1012 LED Micro Switch $  53.76
11.1025 Micro-Rotary Switch/Flasher $  98.06
11.1032 Micro Switch w/ Flasher $  81.18
11.4471 Flat Glass Bracket with Tape $  22.52
11.4472 L Brackets - pair $    8.34
11.4474 Windshield L Brackets - pair $  11.00
11.4475 Glass Bracket - pair $    6.80
11.6051 Double-Stick Tape (per foot) $    4.04
11.8200 Dash Bracket $  15.34
11.8225BRKT Headliner Bracket $  18.30
90.4243 Clip-On Stud Brackets $    5.04
Instructions
11.8200 Series BTI - (+) Switched View PDF
11.8200F Series BTI - Internal Flasher View PDF
11.8200GS Series BTI - (-) Switched View PDF
