SHO-OFF® LED Low-Profile
Stretch Light Bars

Models 12.1327S / 12.1327D / 12.1337S / 12.1337D / 12.1347S / 12.1347D / 12.1357S / 12.1357D / Custom Lengths

  • Maximize your lighting options with the Stretch series of LED Light Bars. Choose the length of light bar your installation requires, then pick either a single or double tier of SHO-OFF LEDs for the intensity you desire.

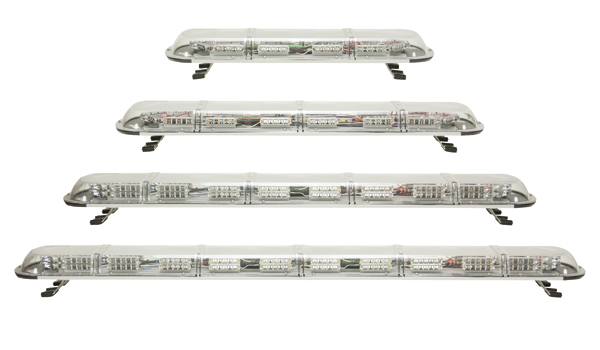

  • Four basic lengths (27" 37", 47" and 57") are suitable for a wide variety of vehicles. Additional lengths ranging in 10" increments from 67" to 97" accommodate large vehicles.
  • Exceptionally bright 3W LEDs with reflectors provide highly visible, wide-angle light even in bright sunlight.
  • Individual modules containing (6) 3W SHO-OFF® LEDS are available in standard warning colors: amber, blue, green, red and white. The modules can be grouped into custom arrangements according to your specifications.
  • Basic models have a standard flasher with fifteen selectable patterns.
  • On basic double tier models, the deluxe flasher enables both tiers to operate simultaneously or each tier to operate independently. Arrow patterns can continue operating while the remaining LEDs function in the selected pattern.
  • Customize any length light bar with optional features (available for an extra charge).
  • Optional alley and take-down lights improve operator and public safety.
  • Optional Stop / Tail / Turn feature coordinates the light bar with vehicle functions.
  • Optional LED Signal Stick function provides four arrow patterns to improve traffic control: left arrow, right arrow, center out and random.
  • The low-profile, UV-resistant, polycarbon dome is aerodynamically designed to improve fuel efficiency.
  • A heavy-duty extruded aluminum base provides a rigid structure that won't warp or bend. A clear anodized coating covers the aluminum to inhibit corrosion.
  • Each SHO-OFF® Stretch Bar includes a single or double tier of 3W LED modules, mounting kit, standard adapter brackets and a 15' hardwire cable.
  • Specify driver- or passenger-side cable exit.
  • Low-Profile Stretch Bars are also available with Luminator LEDs and with Standard LEDs.
  • 12V standard / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs Dimensions
12.1327S 18A Max 72 4" H x 9-1/8" W x 27" L
12.1327D 18A Max 144 4" H x 9-1/8" W x 27" L
12.1337S 24A Max 96 4" H x 9-1/8" W x 37" L
12.1337D 24A Max 192 4" H x 9-1/8" W x 37" L
12.1347S 30A Max 120 4" H x 9-1/8" W x 47" L
12.1347D 30A Max 240 4" H x 9-1/8" W x 47" L
12.1357S 36A Max 144 4" H x 9-1/8" W x 57" L
12.1357D 36A Max 288 4" H x 9-1/8" W x 57" L
Custom Varies Varies 67" - 97" L
Suggested Retail Price
Suggested retail price
12.1327S Basic 27" Single Tier $  1,699.74
12.1327D Basic 27" Double Tier $  3,123.46
12.1337S Basic 37" Single Tier $  2,230.20
12.1337D Basic 37" Double Tier $  4,089.08
12.1347S Basic 47" Single Tier $  2,730.00
12.1347D Basic 47" Double Tier $  5,024.02
12.1357S Basic 57" Single Tier $  3,337.58
12.1357D Basic 57" Double Tier $  6,115.58
Custom Models Prices vary with length and options.
Parts and Accessories
Suggested Retail Price
11.1227D 27" Replacement Dome $  107.44
11.1237D 37" Replacement Dome $  161.18
11.1247D 47" Replacement Dome $  214.92
11.1257D 57" Replacement Dome $  268.64
11.4959 Hi-Rise Legs - pair (2-3/8" H) $    45.58
33.0870 Headache Rack Brackets - (2) $  100.28

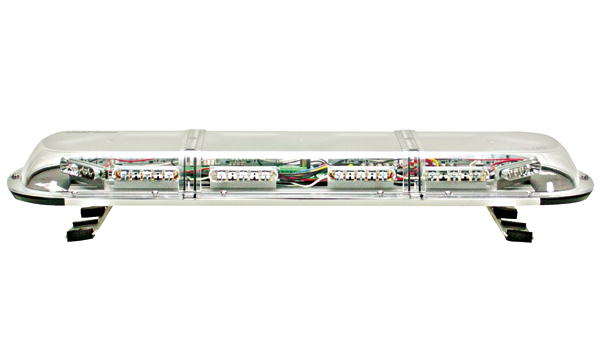

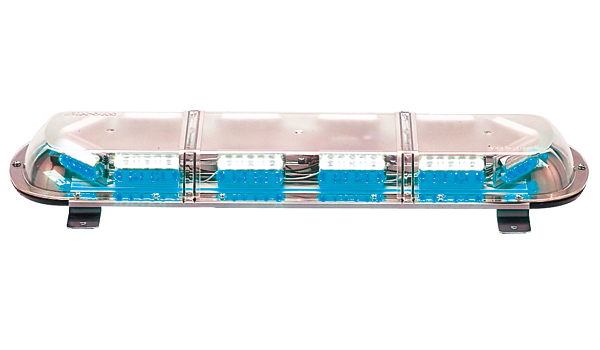

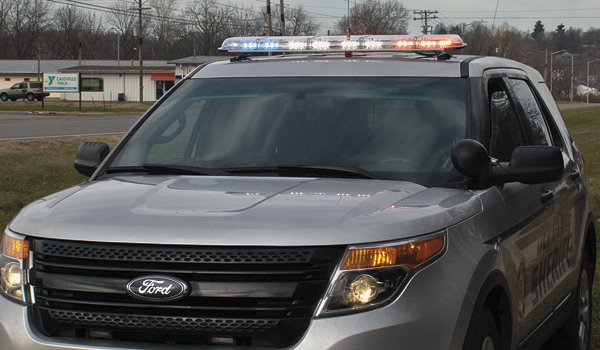

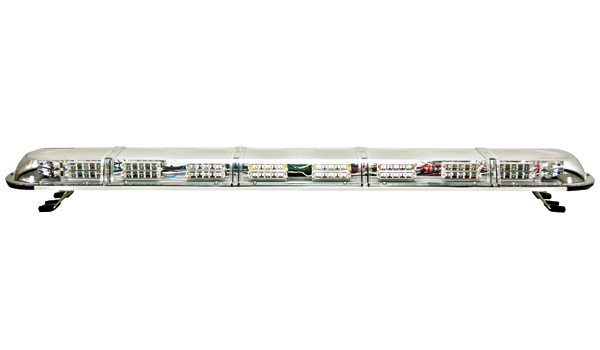

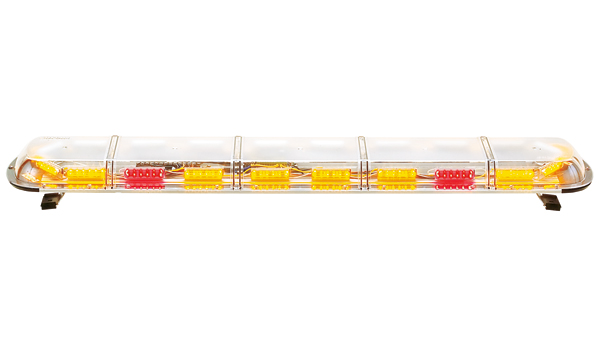

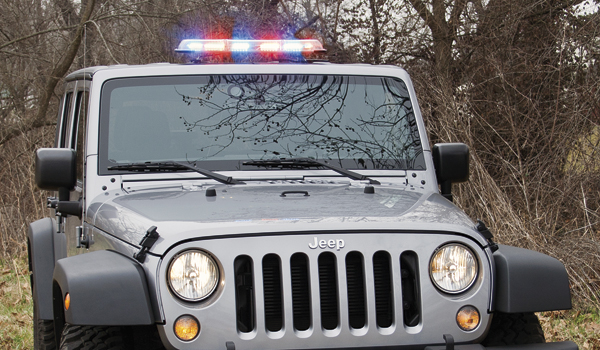

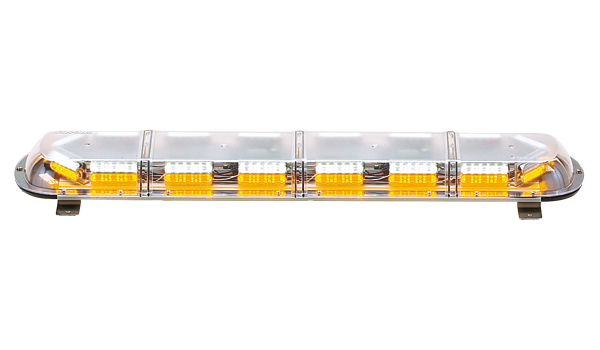

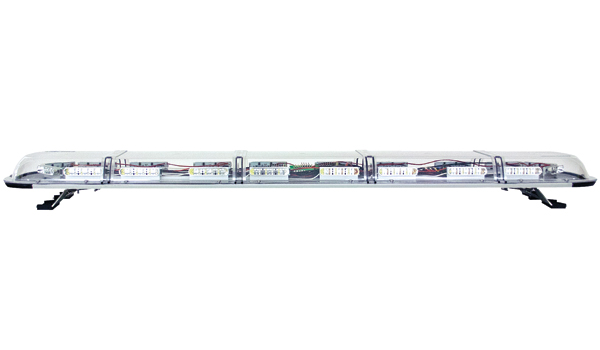

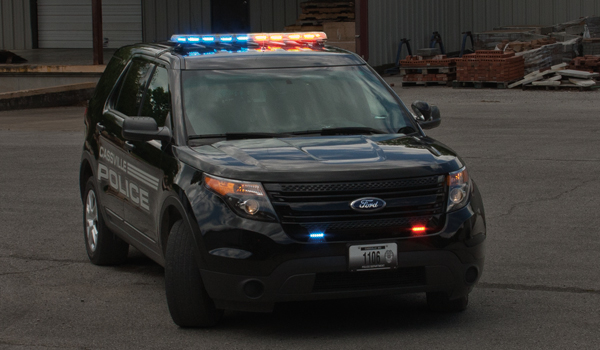

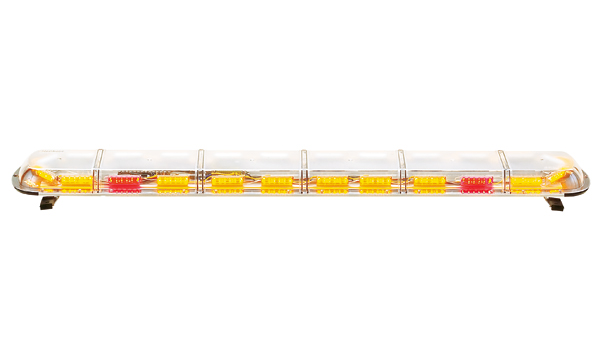

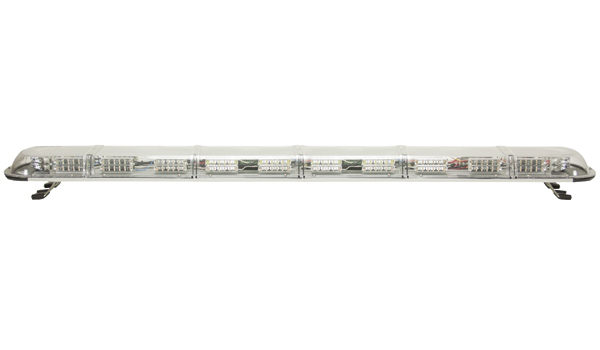

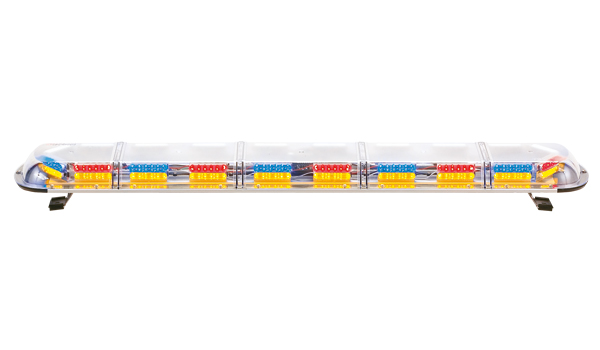

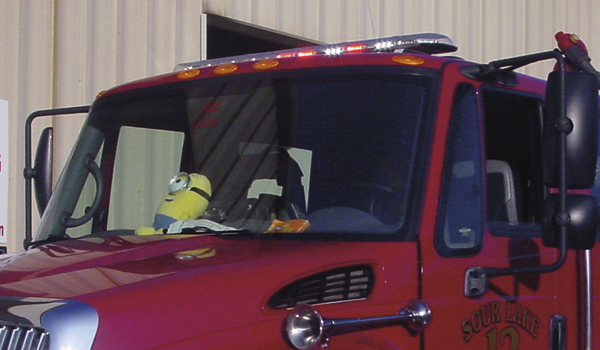

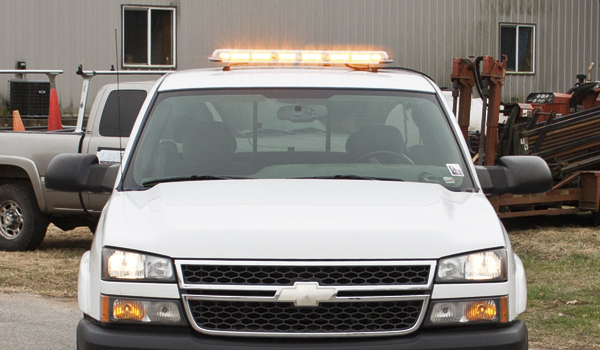

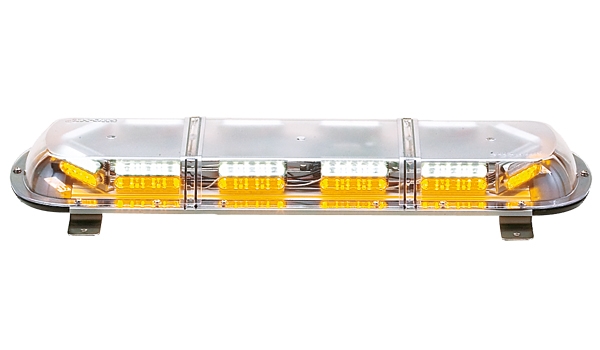

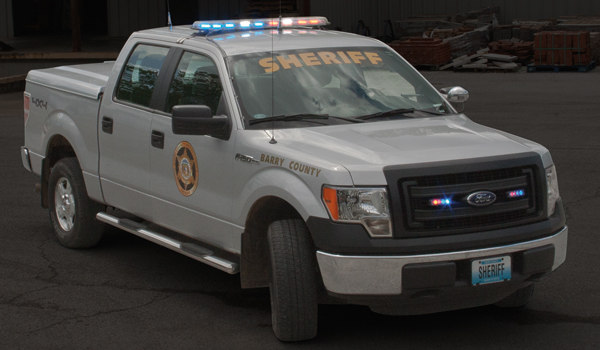

SHO-OFF LED Stretch Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
 1. Quad Alternating
 2. Single - 120 FPM
 3. Single - 240 FPM
 4. Dual Light Rotating Flash
 5. Single Light Rotating Flash - Fast
 6. Sequence All then Steady
 7. Single Scan 2
 8. 25 millisecond ON / 25 millisecond OFF
 9. Beacon Fade
10. Single Alternating - 90 FPM
11. Double Flash - ON
12. Quad Flash - ON
13. SuperMEGA then Steady
14. Random - All Non Sequential Patterns
15. Random - All Patterns
Instructions
12.1327S Basic 27" Single Tier Instructions
12.1327S Basic 27" Single Tier Layout
12.1327D Basic 27" Double Tier Instructions
12.1327D Basic 27" Double Tier Layout
12.1337S Basic 37" Single Tier Instructions
12.1337S Basic 37" Single Tier Layout
12.1337D Basic 37" Double Tier Instructions
12.1337D Basic 37" Double Tier Layout
12.1347S Basic 47" Single Tier Instructions
12.1347S Basic 47" Single Tier Layout
12.1347D Basic 47" Double Tier Instructions
12.1347D Basic 47" Double Tier Layout
12.1357S Basic 57" Single Tier Instructions
12.1357S Basic 57" Single Tier Layout
12.1357D Basic 57" Double Tier Instructions
12.1357D Basic 57" Double Tier Layout
