Luminator LED Low-Profile
Stretch Light Bars

Models 12.1227 / 12.1237 / 12.1247 / 12.1257
Custom Models

  • You can depend on the proven performance and reliability of Luminator LED Low-Profile Stretch Light Bars. Aerodynamically-designed housings are packed with 3W LEDs that are arranged to provide complete 360° coverage.

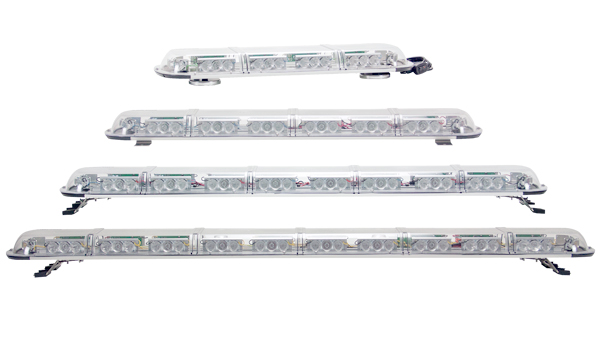

  • Four basic lengths (27" 37", 47" and 57") are suitable for a wide variety of vehicles. Additional lengths ranging (in 10" increments) from 67" to 97" will accommodate large size vehicles.
  • All models have 3W Luminator LEDs with Total Internal Reflection optics for intensely bright light. Diffusing lenses on two-thirds of the Luminator LEDs disperse light horizontally. The remaining third provide concentrated forward light.

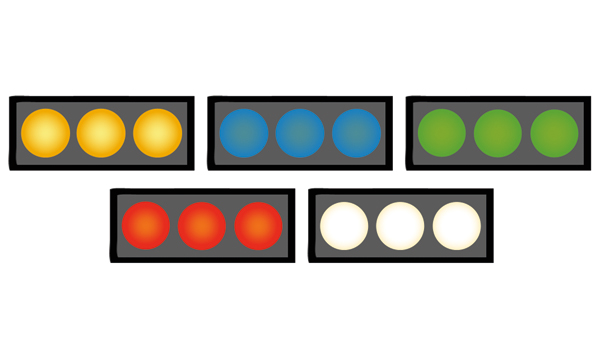

  • Individual modules of (3) 3W Luminator LEDS are available in standard warning colors: amber, blue, green, red and white. The modules can be grouped into custom arrangements according to your specifications.
  • All basic models have Luminator LEDs and a built-in flasher with 15 selectable patterns.

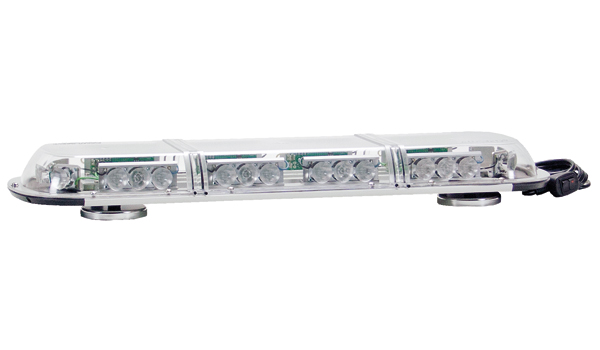

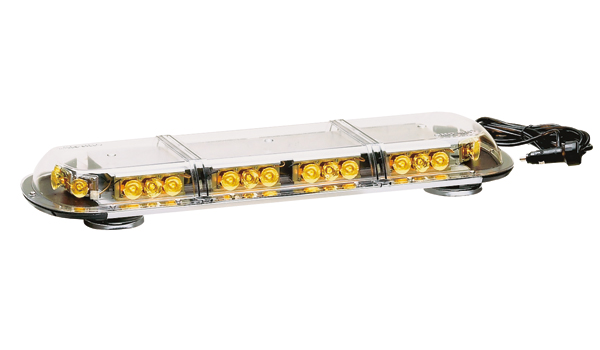

  • Model 12.1227.008 has a 15' straight power cord with a fused cigarette lighter plug with POWER & MODE switches, and four 90 lb - pull magnets.

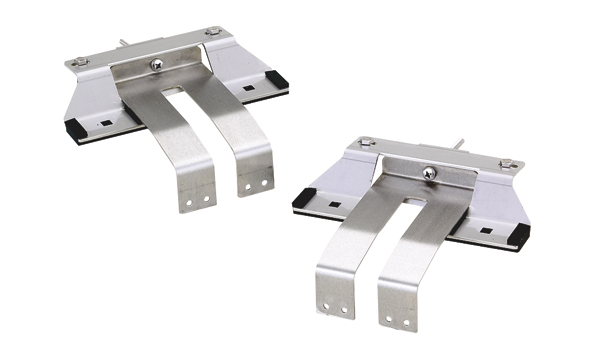

  • All hardwire models have a 15' power cable and include your choice of vehicle-specific mounting kit, mounting feet or headache rack brackets.
  • Customize any length light bar with optional features (available for an extra charge).
  • Optional alley and take-down lights improve operator and public safety.
  • Optional Stop / Tail / Turn feature coordinates the light bar with vehicle functions.
  • Optional LED Signal Stick controller provides additional arrow patterns for improved traffic control.
  • The low-profile, UV-resistant, polycarbon dome is aerodynamically designed to improve fuel efficiency.
  • A heavy-duty extruded aluminum base provides a rigid structure that won't warp or bend. A clear anodized coating covers the aluminum to inhibit corrosion.
  • Specify driver- or passenger-side cable exit.
  • Low-Profile Stretch Bars are also available with SHO-OFF LEDs and with Standard LEDs.
  • 12V standard; also available in 24V upon request.
  • 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs Dimensions
12.1227.000 7.5A 30 4" H x 9-1/8" W x 27" L
12.1227.008 7.5A 30 3" H x 9-1/8" W x 27" L
12.1237 10.5A 42 4" H x 9-1/8" W x 37" L

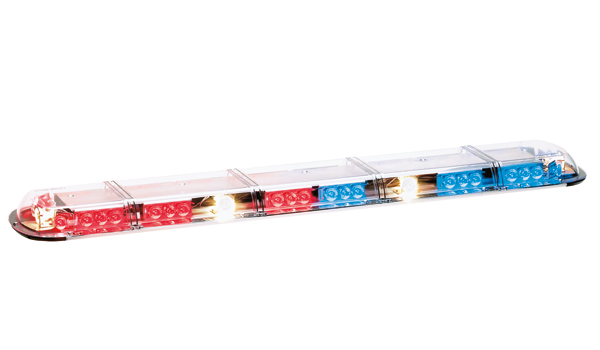

12.1247 13.5A 54 4" H x 9-1/8" W x 47" L

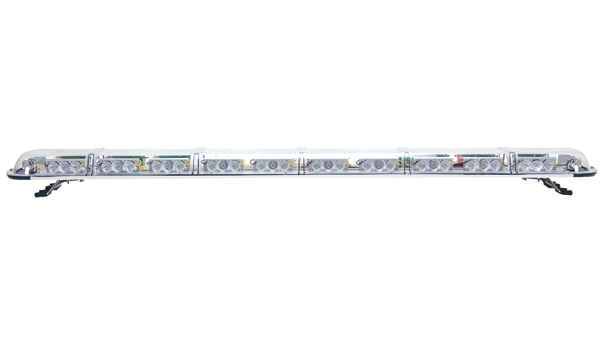

12.1257 16.5A 66 4" H x 9-1/8" W x 57" L
Custom Varies Varies 67" - 97" L
Suggested Retail Price
Suggested retail price
12.1227.000 Basic 27" - Hardwire $ 1,307.64
12.1227.008 Basic 27" - Plug-In $ 1,347.64
12.1237 Basic 37" - Hardwire $ 1,785.18
12.1247 Basic 47" - Hardwire $ 2,232.08
12.1257 Basic 57" - Hardwire $ 2,669.92
Custom Models Prices vary with length and options.
Parts and Accessories
Suggested Retail Price
11.0308 Replacement Magnets $   21.34
11.1227D 27" Replacement Dome $ 107.44
11.1237D 37" Replacement Dome $ 161.18
11.1247D 47" Replacement Dome $ 214.92
11.1257D 57" Replacement Dome $ 268.64
11.4959 Hi-Rise Legs - pair (2-3/8" H) $   45.58
33.0870 Headache Rack Brackets - (2) $ 100.28
90.3281.GRMT Cord, Dbl Switch, Grommet $   37.38

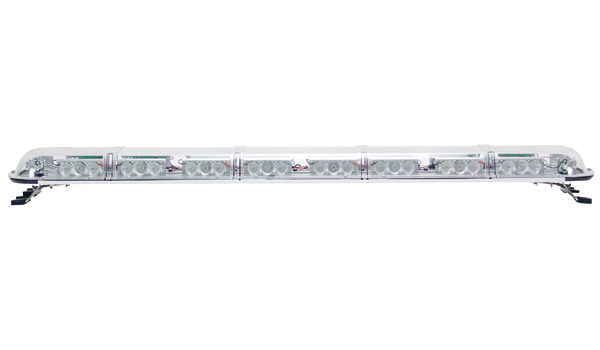

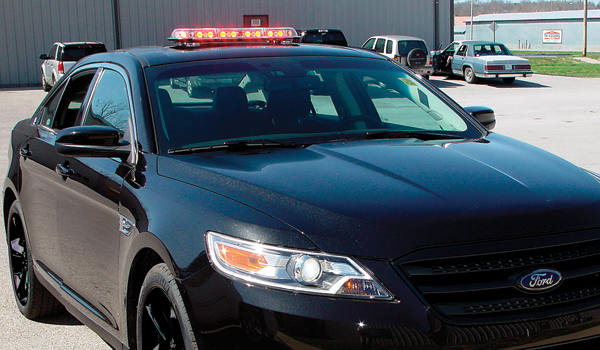

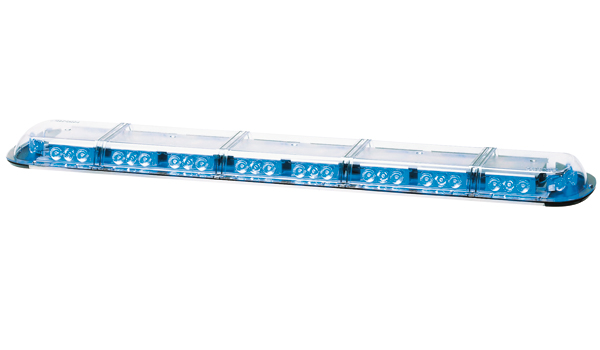

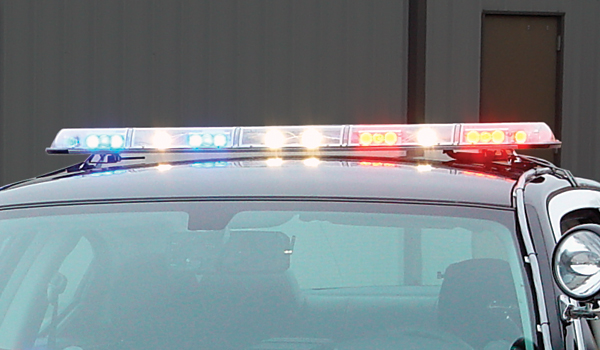

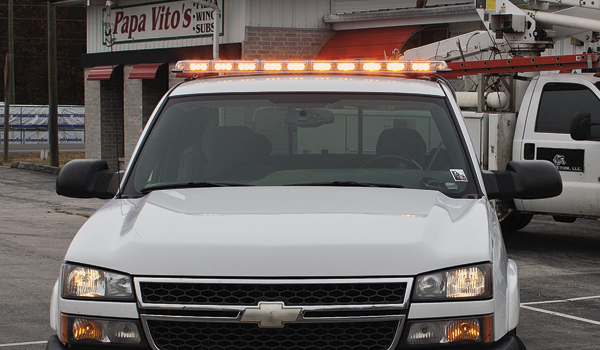

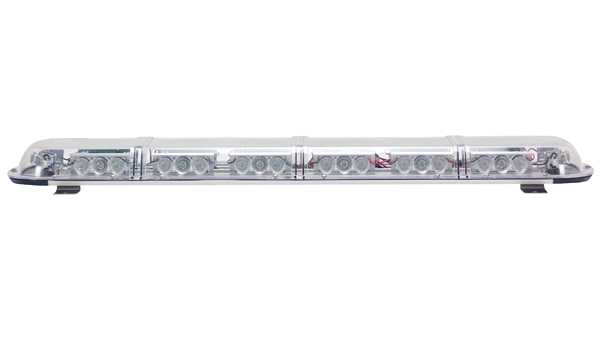

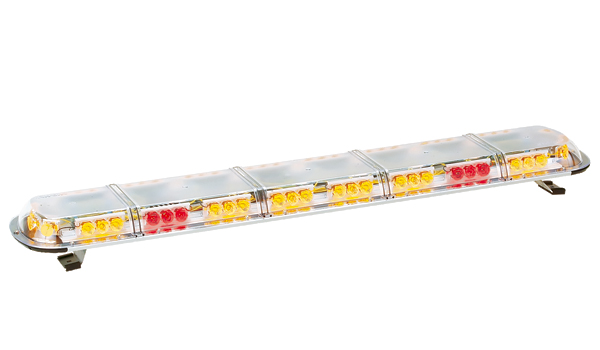

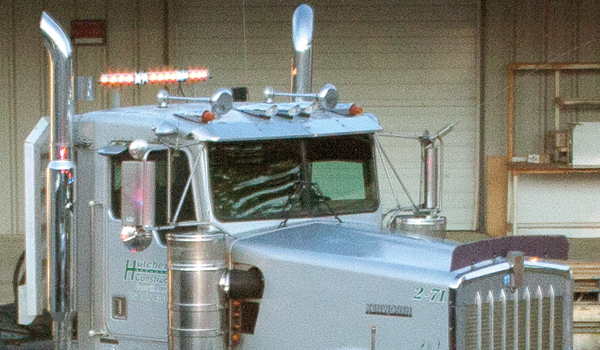

Low-Profile Luminator LED Stretch Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Standard Flash Patterns
1. Quad Flash Alternating
2. Single Flash - 120 FPM
3. Single Flash - 240 FPM
4. Double Chase
5. Back & Forth
6. Left Steady - Right Steady
7. Single Chase
8. Hyper Flash - all
9. Steady Fade
10. Single Flash Alternating - 90 FPM
11. Double Flash All
12. Quad Flash All
13. Super MEGA - Steady
14. Random Non Sequential
15. Random All
Instructions
12.1227.000 Basic 27" - Hardwire Instructions
12.1227.008 Basic 27" - Plug-In Instructions
12.1227.000 Basic 27" - Hardwire Layout
12.1237 Basic 37" - Hardwire Instructions
12.1237 Basic 37" - Hardwire Layout
12.1247 Basic 47" - Hardwire Instructions
12.1247 Basic 47" - Hardwire Layout
12.1257 Basic 57" - Hardwire Instructions
12.1257 Basic 57" - Hardwire Layout
12.1267 Basic 67" - Hardwire Layout
12.1277 Basic 77" - Hardwire Layout
12.1287 Basic 87" - Hardwire Layout
12.1297 Basic 97" - Hardwire Layout
