LED Low-Profile
Stretch Light Bars

Models 11.1227 / 11.1237 / 11.1247 / 11.1257
Custom Models

  • Experience the superior visibility and 360° warning capability of a Low-Profile Stretch LED Light Bar.

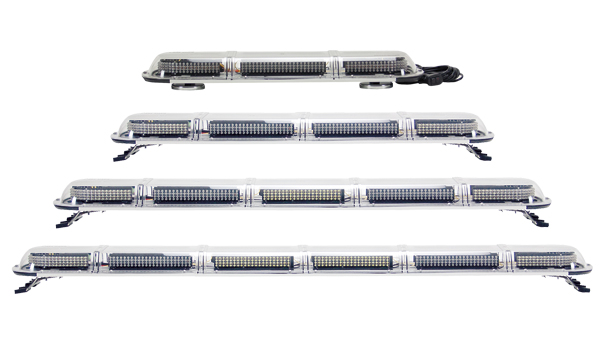

  • Available in four standard lengths (27", 37", 47" and 57") which are suitable for a wide variety of vehicles. Additional lengths (ranging in 10" increments) from 67" to 97" accommodate larger-sized vehicles.

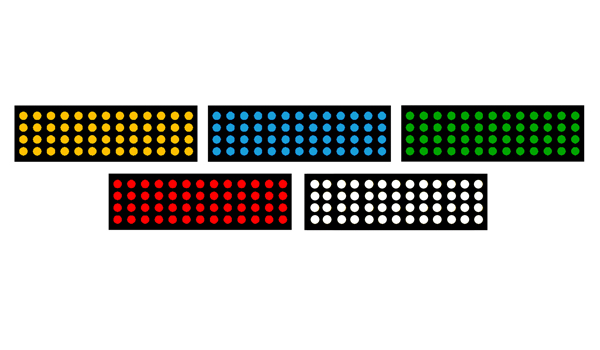

  • Standard high-intensity, energy-efficient LEDs are available in amber, blue, green, red and white.
  • The heavy-duty extruded aluminum base provides a rigid structure that won't warp or bend. A clear anodized coating covers the aluminum to inhibit corrosion.
  • The low-profile, UV-resistant, polycarbon dome is aerodynamically designed to improve fuel efficiency.
  • Basic models have Standard LEDs and a flasher with selectable patterns. All 27" basic models have a seven-pattern flasher. (Shown in list as patterns 1 - 7.) Longer basic models have flashers with fifteen selectable patterns. (Shown in list as patterns 7 - 21.)

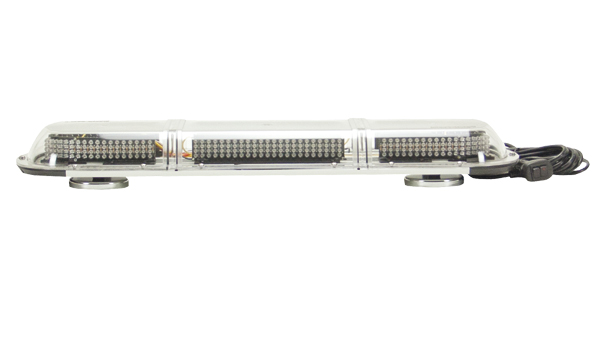

  • Model 11.1227.008 has a 15' straight power cord with a fused cigarette lighter plug with POWER & MODE switches, and four 90 lb.- pull magnets.
  • All other model lengths have a 15' power cable and include your choice of vehicle-specific mounting kit, mounting feet or headache rack brackets.
  • Customize any length light bar with optional features (available for an extra charge).
  • Optional alley and take-down lights improve officer and public safety.
  • Optional Stop / Tail / Turn feature coordinates the light bar with vehicle functions.
  • Optional LED Signal Stick controller provides additional arrow patterns for improved traffic control.
  • Specify driver- or passenger-side cable exit.
  • Low-Profile Stretch Bars are also available with Luminator LEDs and with SHO-OFF LEDs.
  • 12V standard; also available in 24V upon request.
  • Made in the U.S.A.
Specifications
Model Amps LEDs Dimensions
11.1227.000 2.5 Max 504 4" H x 9-1/8" W x 27" L
11.1227.008 2.5 Max 504 3" H x 9-1/8" W x 27" L
11.1237 3.5 Max 672 4" H x 9-1/8" W x 37" L
11.1247 4.4 Max 840 4" H x 9-1/8" W x 47" L
11.1257 5.3 Max 1008 4" H x 9-1/8" W x 57" L
Custom Vary Vary 67" - 97" L
Suggested Retail Price
Suggested retail price
11.1227.000 Basic 27" - Hardwire $    952.50
11.1227.008 Basic 27" - Plug-In $    992.50
11.1237 Basic 37" - Hardwire $ 1,281.54
11.1247 Basic 47" - Hardwire $ 1,580.78
11.1257 Basic 57" - Hardwire $ 1,871.34
Custom Models Length & options vary.
Parts and Accessories
Suggested Retail Price
11.0308 Replacement Magnet $  20.72
11.1227D 27" Replacement Dome $104.32
11.1237D 37" Replacement Dome $156.48
11.1247D 47" Replacement Dome $208.66
11.1257D 57" Replacement Dome $260.82
11.4959 Hi-Rise Legs - pair (2-3/8" H) $  44.26
33.0870 Headache Rack Brackets - (2) $  97.36
90.3281.GRMT Cord, Dbl Switch, Grommet $  36.30

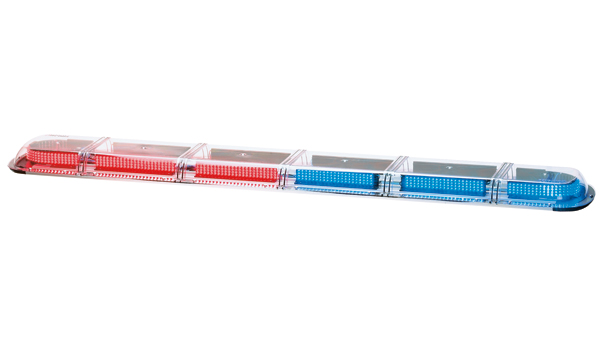

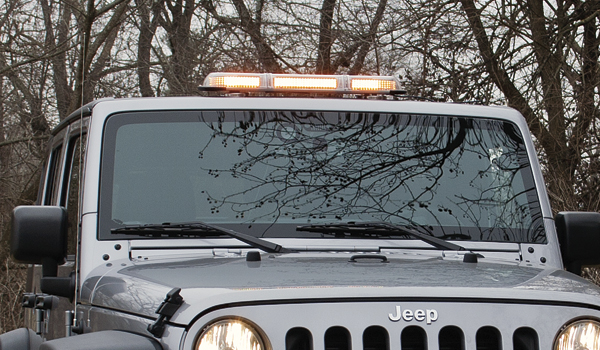

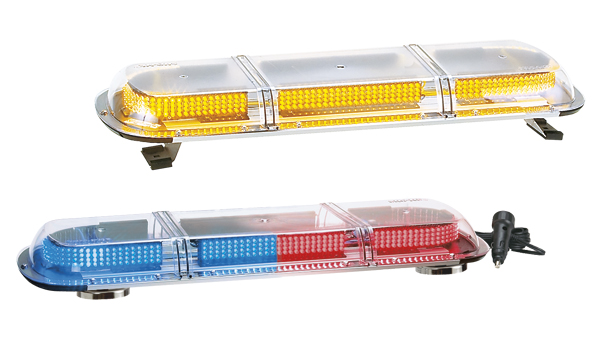

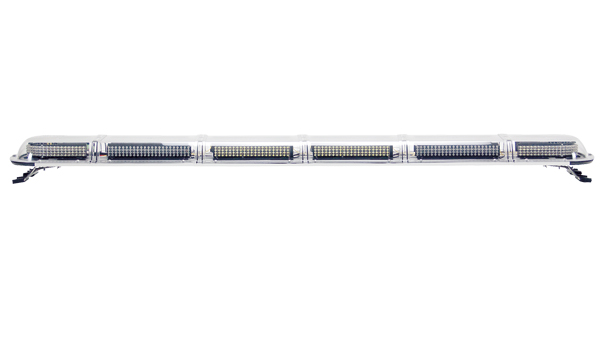

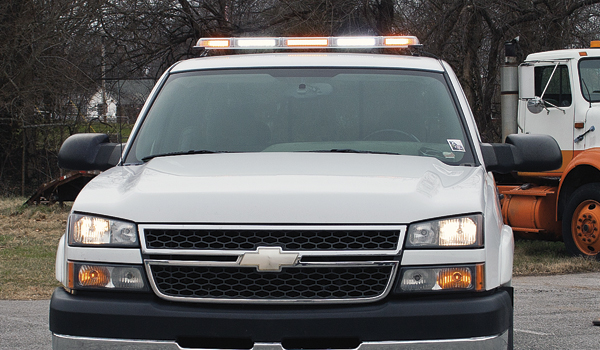

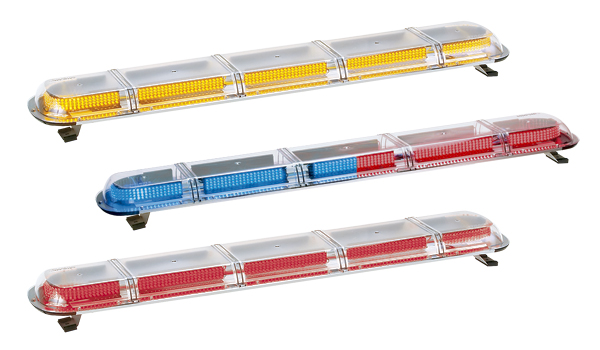

Basic LED Low-Profile Stretch Light Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Quad Alternating - Ends / Middle
2. Quad Simultaneous
3. Quad Alternating
4. Single Alternating - Ends / Middle
5. Sequential
6. Double Alternating - Ends / Middle
7. Random
8. Quad Flash Alternating
9. Single Flash - 120 FPM
10. Single Flash - 240 FPM
11. Double Chase
12. Back & Forth
13. Left Steady - Right Steady
14. Single Chase
15. Hyper Flash - all
16. Steady Fade
17. Single Flash Alternating - 90 FPM
18. Double Flash All
19. Quad Flash All
20. Super MEGA - Steady
21. Random Non Sequential
Instructions
11.1227.000 Basic 27" - Hardwire Instructions
11.1227.008 Basic 27" - Plug-In Instructions
11.1227 Basic 27" - Hardwire Layout
11.1237 Basic 37" - Hardwire Instructions
11.1237 Basic 37" - Hardwire Layout
11.1247 Basic 47" - Hardwire Instructions
11.1247 Basic 47" - Hardwire Layout
11.1257 Basic 57" - Hardwire Instructions
11.1257 Basic 57" - Hardwire Layout
11.1267 Basic 67" - Hardwire Instructions
11.1277 Basic 77" - Hardwire Layout
11.1287 Basic 87" - Hardwire Layout
11.1297 Basic 97" - Hardwire Layout
