SHO-OFF®
LED Mini Light Bars

Models 12.1306 / 12.1308 / 12.1316

  • Be seen for miles with blazingly-bright SHO-OFF® LEDs! Each module on these compact mini bars has six 3W LEDs which are intensified by metallized reflectors.
  • Available in single tier, double tier or budget models so you can choose the style that fits your needs and finances.
  • All models have 12 selectable flash patterns including the popular chase, scan and fade patterns. Built-in pattern memory recalls the last pattern used.
  • On double tier models, the deluxe flasher enables both tiers to operate simultaneously or each tier to operate independently.
  • SHO-OFF® LEDS are available in standard warning colors: amber, blue, green, red and white. The modules can be grouped into custom arrangements according to your specifications.
  • The low-profile, UV-resistant, polycarbon dome is aerodynamically designed to improve fuel efficiency.
  • A heavy-duty extruded aluminum base provides a rigid structure that won't warp or bend. A clear anodized coating covers the aluminum to inhibit corrosion.
  • Available in either hardwire for permanent installation or plug-in for portability between vehicles.
  • ALL plug-in models have a 15’ straight power cord with an accessory plug with POWER & MODE switches, and four 90 lb-pull magnets.
  • Double-tier plug-in models have a push-button pattern selection switch on the underside of the mini bar. Tier selection and power are controlled with a double-switched adapter plug.
  • ALL hardwire models include a 15' cable and mounting hardware.
  • End power cord location.
  • 12V standard / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs H x W x L
12.1306.000 4A 36 2-3/4" x 9-1/8" x 17-1/4"
12.1306.008 4A 36 3" x 9-1/8" x 17-1/4"
12.1308.000 6A 48 2-3/4" x 9-1/8" x 17-1/4"
12.1308.008 6A 48 3" x 9-1/8" x 17-1/4"
12.1316.000 6A 96 2-3/4" x 9-1/8" x 17-1/4"
12.1316.008 6A 96 3" x 9-1/8" x 17-1/4"
Suggested Retail Price
Suggested retail price
12.1306.000 Budget Bar - Hardwire $    578.00
12.1306.008 Budget Bar - Plug In $    618.00
12.1308.000 Single Tier - Hardwire $    708.00
12.1308.008 Single Tier - Plug In $    748.00
12.1316.000 Double Tier - Hardwire $ 1,244.00
12.1316.008 Double Tier - Plug In $ 1,284.00
Parts and Accessories
Suggested Retail Price
11.0308 Replacement Magnet w/Hardware $   21.34
11.1002 LED Double Switch $   43.78
11.4959 Hi-Rise Legs - pair (2-3/8" high) $   45.58
33.0870 Headache Rack Brackets - (2) $ 100.28
90.6127 Replacement Dome $   20.10

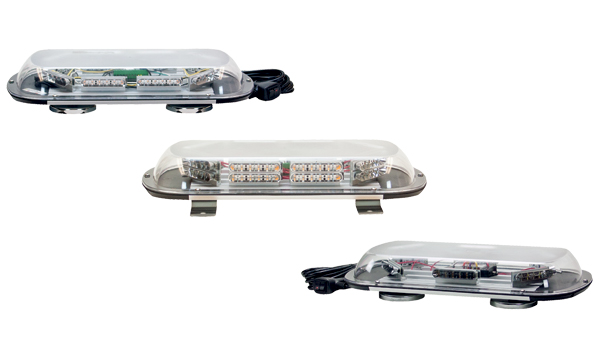

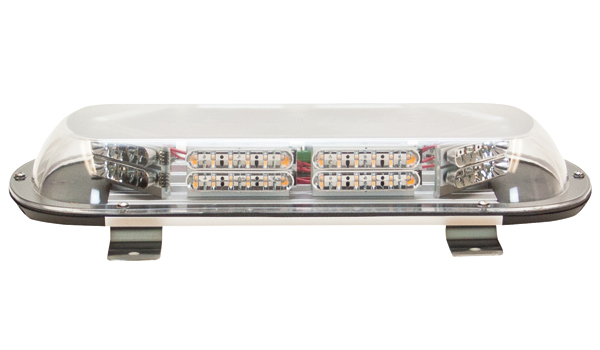

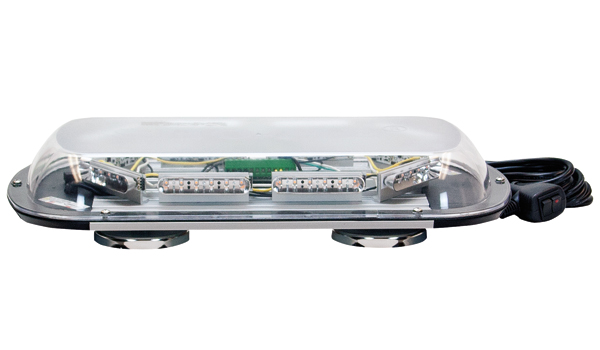

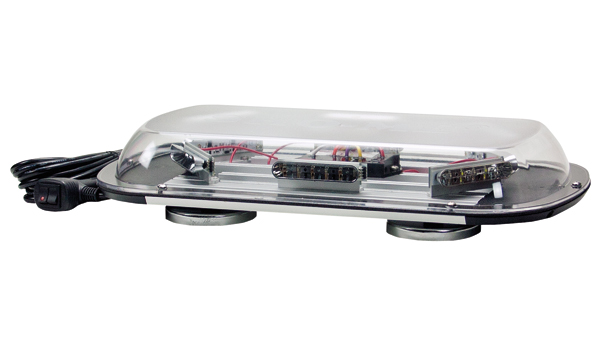

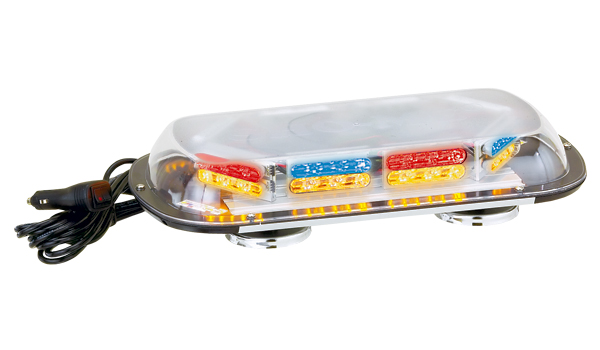

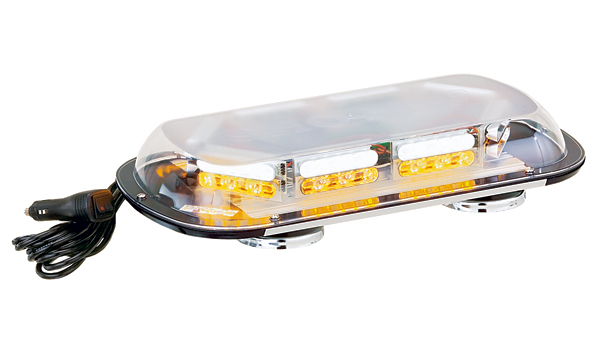

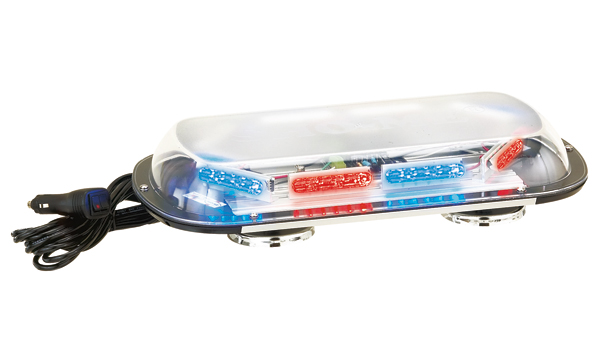

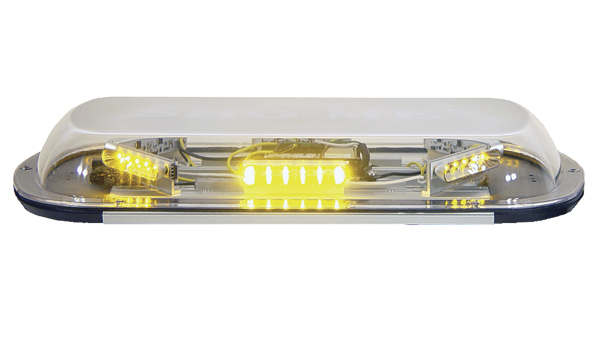

SHO-OFF LED Mini Light Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Quad Flash
2. Chase
3. Scan
4. Quad Alternating
5. Single Flash Slow
6. Single Flash Medium
7. Single Flash Fast
8. Fade
9. Crossfire
10. Quad Quad Single
11. Double Flash
12. Random
Instructions
12.1306.000 Budget Bar - Hardwire Instructions
12.1306.008 Budget Bar - Plug In Instructions
12.1308.000 Single Tier - Hardwire Instructions
12.1308.000 Single Tier - Hardwire Layout
12.1308.008 Single Tier - Plug In Instructions
12.1308.008 Single Tier - Plug In Layout
12.1316.000 Double Tier - Hardwire Instructions
12.1316.000 Double Tier - Hardwire Layout
12.1316.008 Double Tier - Plug In Instructions
12.1316.008 Double Tier - Plug In Layout

   ©Able 2 Products Company
