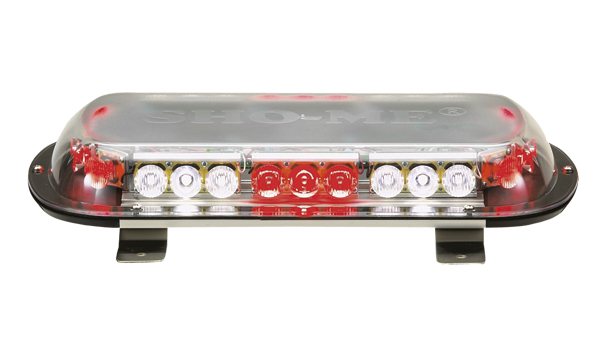

Low-Profile LED Mini Bars

Models 11.1200.000 / 11.1200.008
Models 12.1224.000 / 12.1224.008

  • These low-profile workhorses have wrap-around LEDs that are highly visible from all angles.
  • Available with either 368 standard high-intensity LEDs or 24 3W Luminator LEDs with Total Reflection optics.
  • LED arrays are available in your choice of amber, blue, green, red and white.

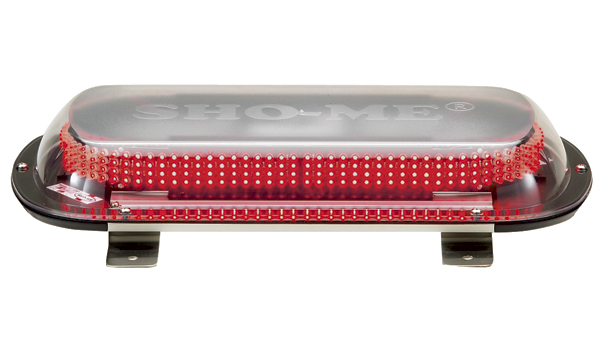

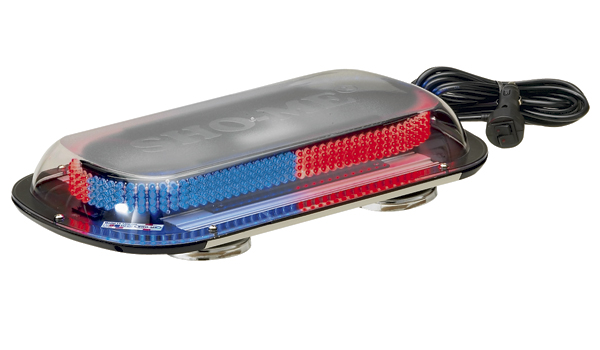

  • Model 11.1200 has a solid-state flasher with seven selectable patterns. LEDs flash in quadrants. Choose up to four colors per mini bar.

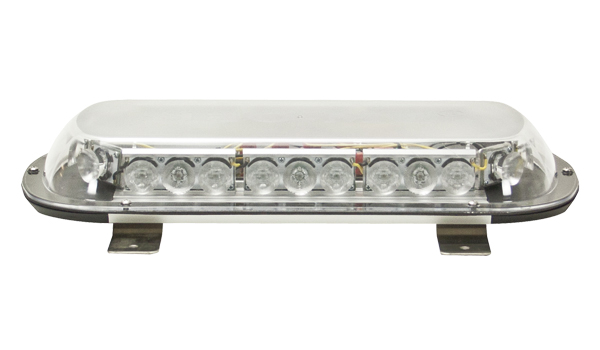

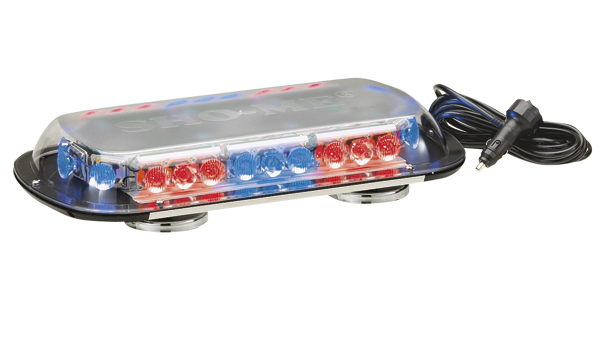

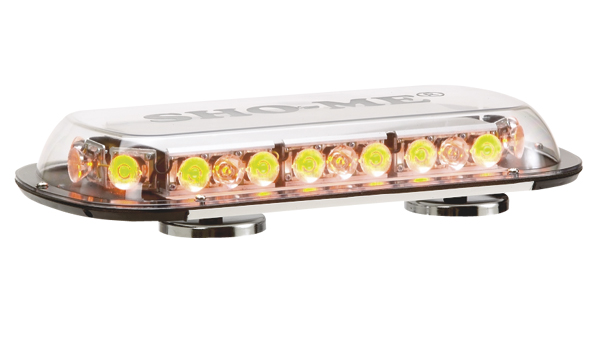

  • Model 12.1224 has a solid-state flasher with twelve selectable patterns. Pick one color for each group of three Luminator LEDs.
  • Low-profile design improves fuel efficiency.
  • UV-resistant polycarbon dome protects electronics.
  • Rigid, heavy-duty aluminum base won't warp or bend.
  • Hardwire models have a 15' power cable and measure 2-3/4" H x 9-1/8" W x 17-1/4" L.

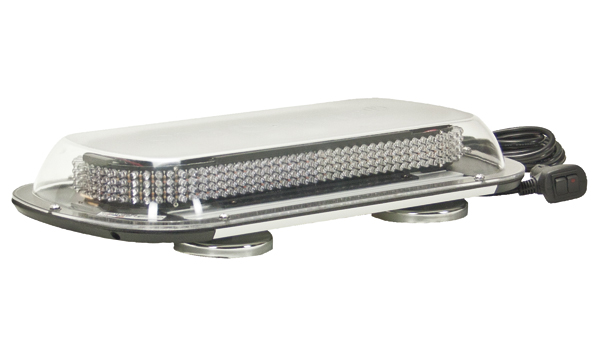

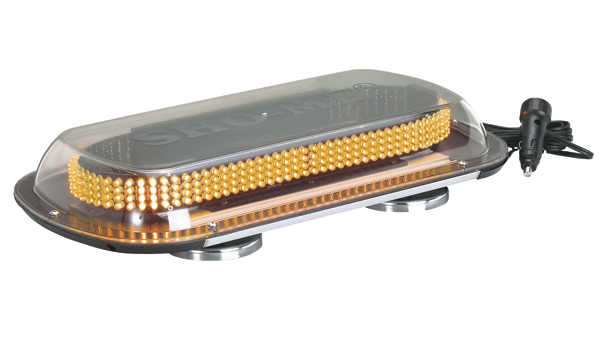

  • Plug-In models have a 15' straight power cord with a fused adapter plug with POWER & MODE switches, and four 90 lb-pull magnets. Plug-In models measure 3" H x 9-1/8" W x 17-1/4" L.
  • End power cord location.
  • 12V standard, also available in 24V upon request.
  • Made in the USA.
Specifications
Model Amps LEDs Flash Patterns
11.1200 1.8 - 3.7 Max 368 7 Selectable
12.1224 6.0 Max 24 3W 12 Selectable
Suggested Retail Price
Suggested retail price
11.1200.000 Standard LEDs - Hardwire $ 563.90
11.1200.008 Standard LEDs - Plug-In $ 603.90
12.1224.000 Luminator LEDs - Hardwire $ 671.56
12.1224.008 Luminator LEDs - Plug-In $ 711.56
Parts and Accessories
Suggested Retail Price
11.0308 Replacement Magnet with Hardware $  21.34
11.1002 LED Double Switch - Hardwire Models $  43.78
11.4959 Hi-Rise Legs - pair (2-3/8" high) $  45.58
33.0870 Headache Rack Brackets $100.28
90.6127 Replacement Dome $  20.10
Instructions
11.1200.000 Standard LEDs - Hardwire Instructions
11.1200.008 Standard LEDs - Plug-In Instructions
11.1200 Standard LEDs Layout
12.1224.000 Luminator LEDs - Hardwire Instructions
12.1224.008 Luminator LEDs - Plug-In Instructions
12.1224 Luminator LEDs Layout

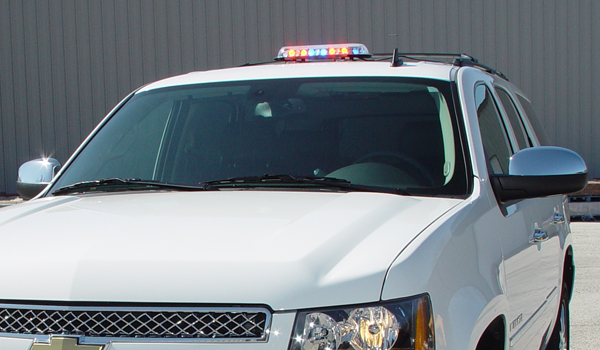

Low-Profile LED Mini Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
11.1200 Series Mini Bars
 1. Alternating - Double Flash
 2. Alternating - Quad Flash
 3. Alternating - Quint Flash
 4. Simultaneous - Double Flash
 5. Simultaneous - Quad Flash
 6. Alternating - MEGA Flash
 7. Random
12.1224 Series Mini Bars
1. Quad Flash
2. Chase
3. Scan
4. Quad Alternating
5. Single Flash Slow
6. Single Flash Medium
7. Single Flash Fast
8. Fade
9. Crossfire
10. Quad Quad Single
11. Double Flash
12. Random
