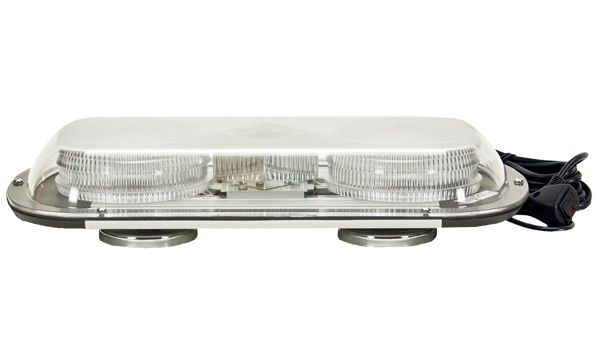

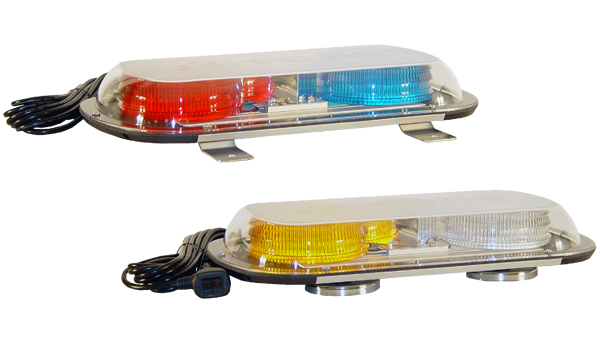

Dual Head LED Mini Bars

Models 12.0312.000 / 12.0312.008

  • Twelve 3W LEDs in two LED beacons provide 360° coverage ensuring visibility from all angles. A diamond-shaped mirror further enhances each flash.
  • The internal flasher has seven selectable flash patterns that effectively alert motorists and pedestrians.

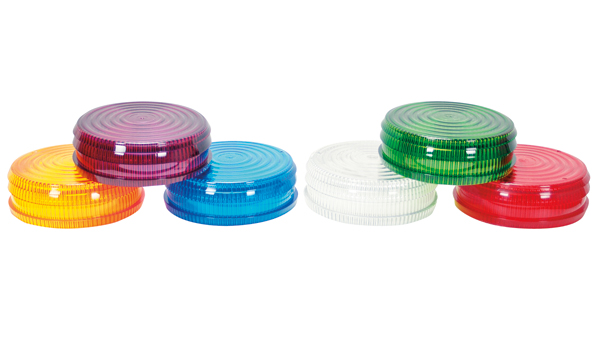

  • Inner fresnel lenses are available in amber, blue, clear, green, red and violet.
  • UV-resistant polycarbon dome protects electronics.
  • Rigid, heavy-duty aluminum base won't warp or bend.
  • Model 12.0312.000 has a 15' power cable and mounting hardware. (Remote switch purchased separately.)
  • Model 12.0312.008 has a 15' straight power cord, fused adapter plug with POWER & MODE switches, and four 90 lb-pull magnets.
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps Dimensions
12.0312.000 3.0 Max 2-3/4" H x 9-1/8" W x 17-1/4" L
12.0312.008 3.0 Max 3" H x 9-1/8" W x 17-1/4" L
Suggested Retail Price
Suggested retail price
12.0312.000 Dual Head Mini Bar - Hardwire $ 420.00
12.0312.008 Dual Head Mini Bar - Plug-In $ 460.00
Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch for 12.0312.000 $  43.78
11.0308 Replacement Magnet with Hardware $  21.34
11.4959 Hi-Rise Legs - pair (2-3/8" high) $  45.58
12.0203 Inner Fresnel Lens $  24.50
90.6127 Replacement Dome $  19.52

Dual Head LED Mini Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.





Flash Patterns
1. Double Alternating
2. Quad Alternating
3. Quint Alternating
4. Double Simultaneous
5. Quad Simultaneous
6. MEGA Alternating
7. Random
Instructions
12.0312.000 Dual Head Mini Bar - Hardwire View
12.0312.008 Dual Head Mini Bar - Plug-In View
