LightStorm® LED Signal Sticks

12.6200 Series

  • Three-watt Luminator LEDs utilize Total Reflection optics to provide exceptionally bright light.
  • Diffusing lenses on two-thirds of the Luminator LEDs disperse light horizontally. The remaining third provide concentrated forward light.
  • Luminator LEDs are available in five colors: amber, blue, green, red and white. Choose one color for each section containing three adjoining LEDs.

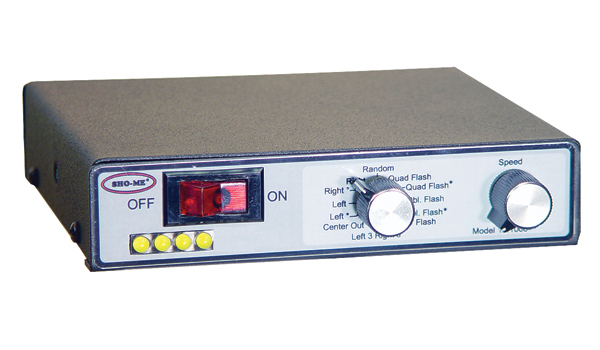

  • Comes with a deluxe controller with 12 selectable flash patterns, variable speed control dial & LED flash pattern indicator lights. Includes a remote switch wire for optional random flash.
  • Linear regulators eliminate RF interference.
  • Signal stick lengths range from 16-7/8" up to 37-7/8".
  • Black anodized aluminum housing has T-slot (slide bolt) mounting channels on back and underside.
  • Clear lens cover protects LEDs from dust and debris.
  • Plug-in connectors simplify installation.
  • End cable exit.
  • Suitable for interior or exterior use.
  • Includes controller, "L" brackets and 15' power cable.
  • Controller measures 1-3/8" H x 5-3/4" D x 6" L.
  • 12 Volt
  • Made in the U.S.A.
Specifications
Model 12.6204
(12) 3W LEDs in 4 Sections 3 Amps Max
2-1/4" H x 2-3/8" D x 16-7/8" L
Uses Controller Model 12.1004

Model 12.6205
(15) 3W LEDs in 5 Sections 3.75 Amps Max
2-1/4" H x 2-3/8" D x 20-3/8" L
Uses Controller Model 12.1005

Model 12.6206
(18) 3W LEDs in 6 Sections 4.5 Amps Max
2-1/4" H x 2-3/8" D x 23-7/8" L
Uses Controller Model 11.1006

Model 12.6207
(21) 3W LEDs in 7 Sections 5.25 Amps Max
2-1/4" H x 2-3/8" D x 27-3/8" L
Uses Controller Model 11.1007

Model 12.6208
(24) 3W LEDs in 8 Sections 6 Amps Max
2-1/4" H x 2-3/8" D x 30-7/8" L
Uses Controller Model 11.1000

Model 12.6209
(27) 3W LEDs in 9 Sections 6.75 Amps Max
2-1/4" H x 2-3/8" D x 34-3/8" L
Uses Controller Model 11.1007

Model 12.6210
(30) 3W LEDs in 10 Sections 7.5 Amps Max
2-1/4" H x 2-3/8" D x 37-7/8" L
Uses Controller Model 11.1000
Suggested Retail Price
Suggested retail price
12.6204 16-7/8" / all colors / controller $    631.96
12.6205 20-3/8" / all colors / controller $    740.18
12.6206 23-7/8" / all colors / controller $    848.38
12.6207 27-3/8" / all colors / controller $    956.60
12.6208 30-7/8" / all colors / controller $ 1,064.90
12.6209 34-3/8" / all colors / controller $ 1,173.02
12.6210 37-7/8" / all colors / controller $ 1,281.22

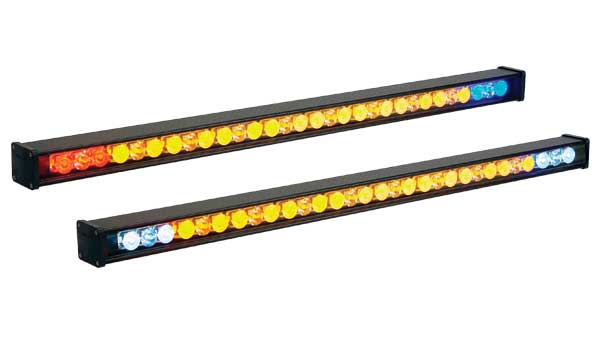

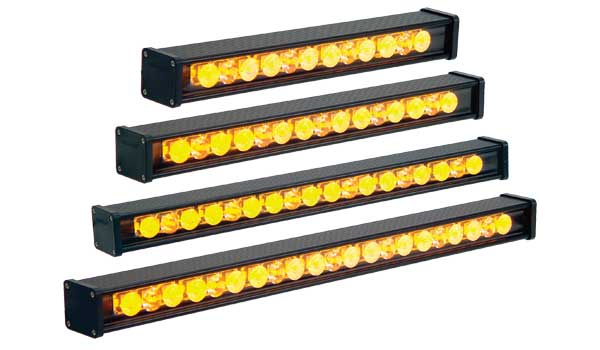

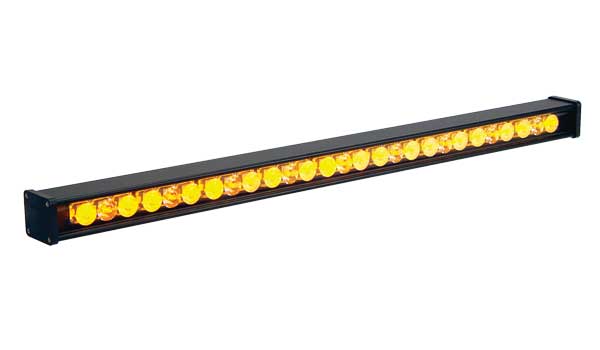

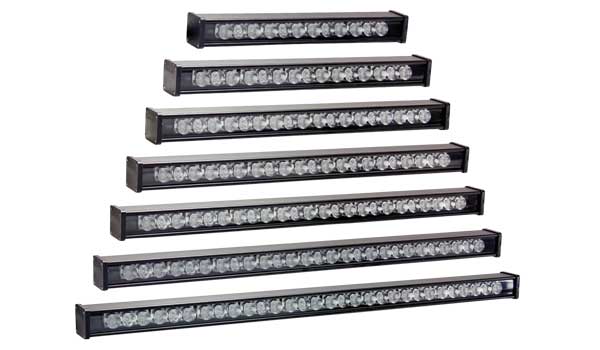

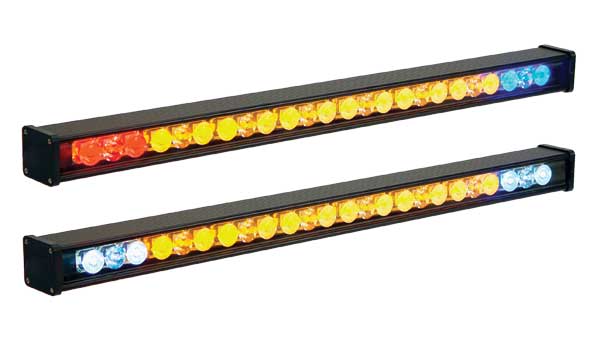

Grouping of Lightstorm LED Signal Sticks.

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
 1. Alternating Double Flash - Ends
2. Alternating Double Flash - Halves
3. Alternating Quad Flash - Ends
4. Alternating Quad Flash - Halves
5. Alternating Single Flash - Ends
6. Alternating Single Flash - Center / Ends
7. Random
8. Left Arrow
9. Left Arrow - Double Flash End
10. Right Arrow
11. Right Arrow - Double Flash End
12. Center Out
Parts and Accessories
Suggested Retail Price
11.1000 Controller for 12.6208 / .6210 $  357.76
11.1006 Controller for 12.6206 $  357.76
11.1007 Controller for 12.6207 / .6209 $  357.76
11.4473 L Brackets - pair $    11.06
12.1004 Controller for 12.6204 $  357.76
12.1005 Controller for 12.6205 $  357.76
Instructions
12.6204 16-7/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6205 20-3/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6206 23-7/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6207 27-3/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6208 30-7/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6209 34-3/8" Signal Stick Instructions View PDF
  Patterns View PDF
12.6210 37-7/8" Signal Stick Instructions View PDF
  Patterns View PDF
