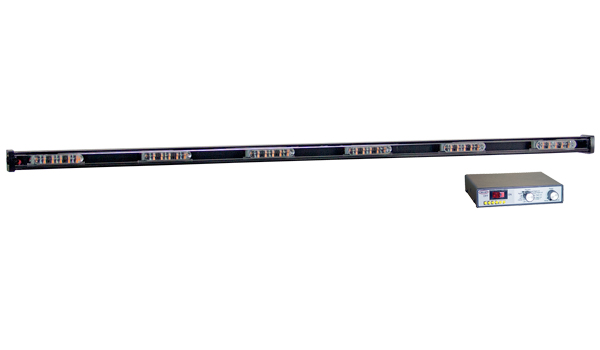

SHO-OFF® LED Signal Stick

Model 12.1340.A-CONT

  • Super-slim housing permits unobstructed driver view.
  • This super-slim directional light is only 1-3/8" in height so it can comfortably fit in narrow spaces without obstructing your view.
  • Effectively alert motorists of emergency conditions and changing traffic patterns with 3W amber LEDs functioning in 12 selectable flash patterns.
  • Six reflector modules amplify the output of (36) 3W LEDs to create a wide-angle, exceptionally bright light that is visible in bad weather, at sunrise and sunset, and even in bright sunlight.

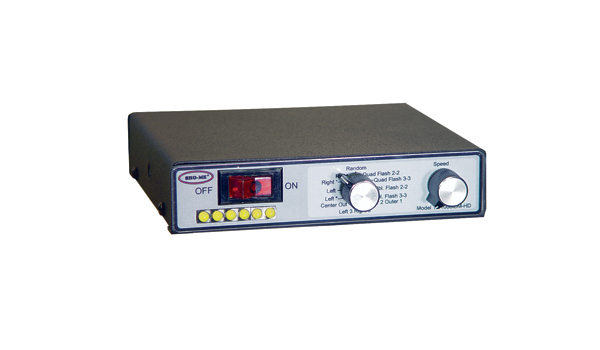

  • Comes with a deluxe controller that has a pattern control dial, a variable speed control dial and LED flash pattern indicator lights. Includes a remote switch wire for optional random flash. Controller measures 1-3/8" H x 5-3/4" D x 6" L.
  • User-friendly plug-in connectors simplify installation. Just connect the controller plug to the signal stick plug and click into place.

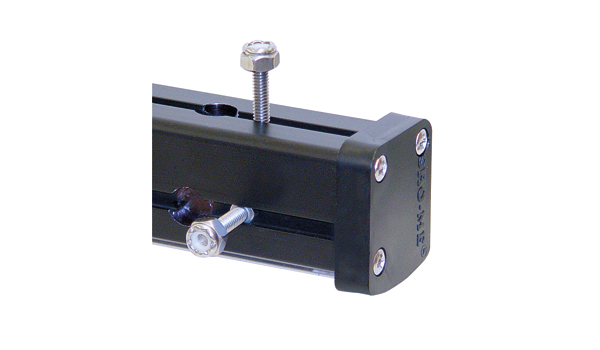

  • Integral T-slot mounting channels on the housing back and underside permit the positioning of mounting brackets anywhere along the length of the light.
  • The durable aluminum housing has a clear lens cover to protect LEDs from dust and debris.
  • Comes with a deluxe controller, plug-in connectors, heavy-duty "L" mounting brackets and a 15' cable.
  • End cable exit. / Mount in a dry location.
  • 12V standard / 5 year warranty
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 6.0 amps max
Dimensions: 1-3/8" H x 40" L x 1-1/2" D (light)
  1-3/8" H x 6" L x 5-3/4" D (controller)
Wiring: 15 ft. power cable
Specifications
Model Amps H x D x L
12.1312.A-CONT 6A Max 1-3/8" x 1-1/2" x 40"
Suggested Retail Price
Suggested retail price
12.1340.A-CONT SHO-OFF Signal Stick $  808.00

SHO-OFF LED Signal Stick

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Random Flash
2. Alternating Quad Flash: Left End - Right End
3. Alternating Quad Flash: Left Half - Right Half
4. Alternating Double Flash: Left End - Right End
5. Alternating Double Flash: Left Half - Right Half
6. Alternating Double Flash: Center - Ends
7. Alternating Single Flash: Left Half - Right Half
8. Center Out
9. Right Arrow: Double Flash End
10. Right Arrow
11. Left Arrow: Double Flash End
12. Left Arrow
View PDF of 12.1340.A-CONT Patterns.
Parts and Accessories
Suggested Retail Price
11.4471 Flat Glass Bracket w/ Tape $   22.52
11.4472.BTI L Brackets - pair $     8.34
11.4475 Glass Bracket $     6.80
11.8310.BKRT Dash Bracket $   16.04
11.8325BRKT Headliner Bracket $   18.30
12.1006IDM-HD Deluxe Controller $  368.50
Instructions
12.1340.A-CONT BTI Signal Stick View PDF
