Covert Headlight LEDs

Models 12.3810 / 12.3812

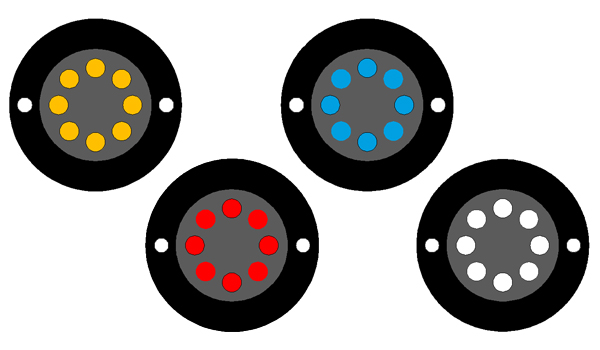

  • Eight four-watt LEDs in each lighthead. Available in solid colors: amber, blue, red and white.
  • Clear lens cover has been specially engineered for the wide-angle light distribution needed for headlight installations.
  • Self-contained multi-pattern flasher simplifies installation.
  • Includes synchronize feature to alternate or simultaneously flash multiple lightheads.
  • Lightheads install in 1" cut-outs in headlight housings.
  • A flush-mount flange is included to facilitate other mounting applications.
  • Aluminum lighthead housing features advanced thermal management capabilities.
  • Foam gasket protects lighthead from moisture.

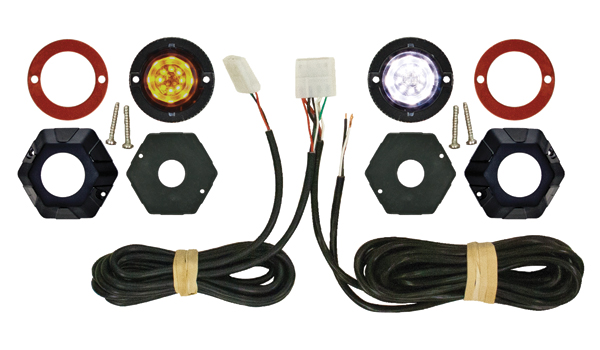

  • Kits include (2) self-contained LED light heads with gaskets, (2) mounting flanges, (1) 12' power cable and (1) 6' extension.
  • Multi-voltage input 12 - 24 VDC.
  • Two year warranty on LEDs.
Specifications
Voltage: 12 - 24 volt
Amperage: 0.5 amps max per lighthead
Dimensions: 1" Diameter x 1" H
Suggested Retail Price
Suggested retail price
12.3810 Kit - (2) Lamps w/ 8 LEDs ea. $ 259.40
12.3812 (1) Lamp with 8 LEDs $ 118.12
Parts and Accessories
11.1002GSM LED Double Switch $  42.50
11.1012 LED Micro Switch $  52.20
12.3302 Covert LED Bulb Bracket $  15.12
12.4506.BLK Black Flange $    7.22
Related Products
See more about Bi-Color Covert LEDs.
Bi-Color Covert LED

Covert Headlight LED Kit

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
1. Single Flash 120 FPM - all LEDs
2. Single Flash 120 FPM - ½ LEDs
3. Single Flash 120 FPM - alternating ½-½ LEDs
4. Single Flash 300 FPM - all LEDs
5. Single Flash 300 FPM - ½ LEDs
6. Single Flash 300 FPM - alternating ½-½ LEDs
7. Single Flash 75 FPM - all LEDs
8. Single Flash 75 FPM - ½ LEDs
9. Single Flash 75 FPM - alternating ½-½ LEDs
10. Double Flash 75 FPM - all LEDs
11. Double Flash 75 FPM - alternating ½-½ LEDs
12. Double Flash 120 FPM - all LEDs
13. Double 120 FPM - alternating ½-½ LEDs
14. Quad Flash 75 FPM - all LEDs
15. Quad Flash 75 FPM - ½ LEDs
16. Quad Flash 75 FPM - alternating ½-½ LEDs
17. Quad Flash 120 FPM - all LEDs
18. Quad Flash 120 FPM - ½ LEDs
19. Quad Flash 120 FPM - alternating ½-½ LEDs
20. Quint Flash 120 FPM - all LEDs
21. Quint Flash 120 FPM - alternating ½-½ LEDs
22. Alternating Module Flash - ½-½
23. Auto Run
24. Steady Burn
Instructions
12.3810 Instructions View PDF
