Bi-Color Covert LEDs

Models 12.4508 / 12.4516

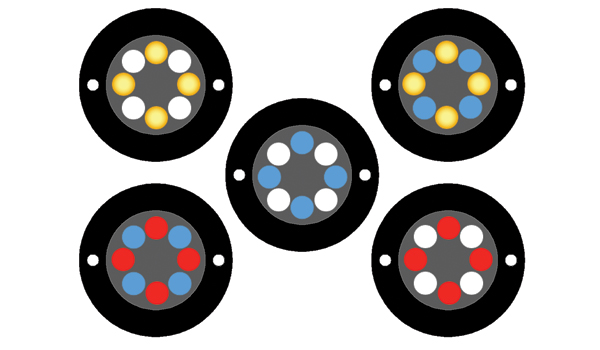

  • Eight 3W LEDs in each light head. Available in the following color combinations: amber-white, blue-white, red-white and red-blue.
  • Internal flasher controls 24 flash patterns.
  • Includes synchronize feature for alternating or simultaneous flash patterns.
  • Requires just a 1" cut-out in headlight, fog, corner and brake light housings or surface mount with flange.

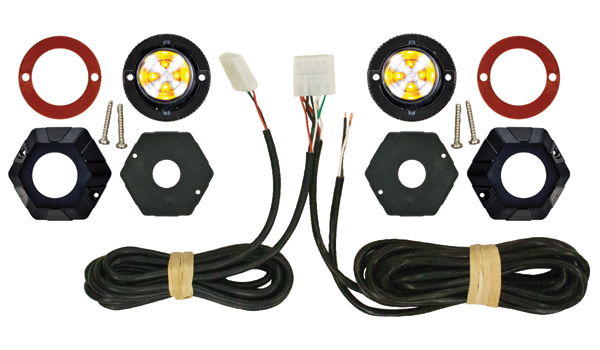

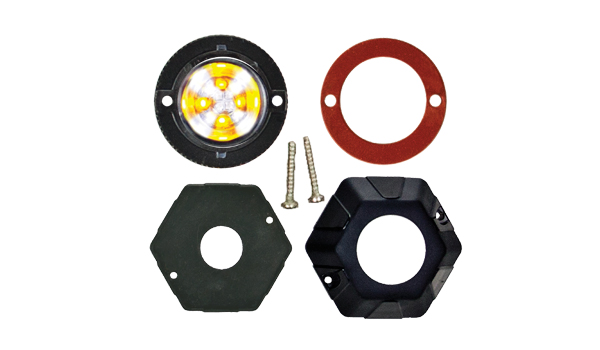

  • Kits include (2) LED light heads with internal flashers, (2) gaskets, (2) mounting flanges, (1) 12' power cable and (1) 8' cable.
  • Multi-voltage input 12 - 24 VDC.
  • Two year warranty on LEDs.
Specifications
Voltage: 12 - 24 volt
Amperage: 0.5 amps max per module
Dimensions: 1" Diameter x 1" H
Suggested Retail Price
Suggested retail price
12.4508 (1) Lighthead w/ flasher $  136.26
12.4516 (2) Lightheads w/ flashers $  252.10
Parts and Accessories
11.1002 LED Double Switch $  42.50
11.1012 LED Micro Switch $  52.20

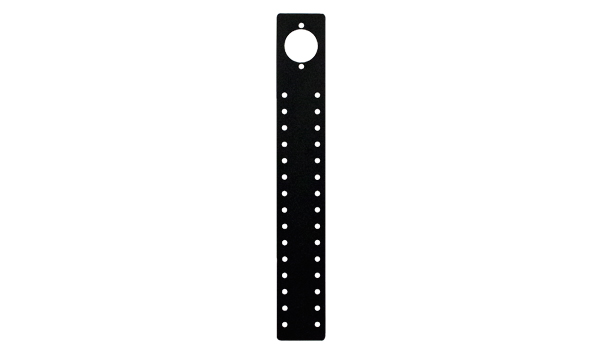

12.3302 Covert LED Bulb Bracket $  15.12

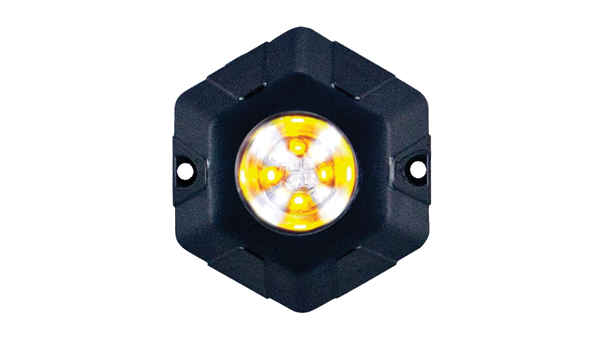

12.4506.BLK Mounting Flange - Black $    7.22
Instructions
12.4508 4-Wire Model View PDF
12.4508 5-Wire Model View PDF
Related Products
Link to Headlight Covert LEDs page.
Headlight Covert LEDs

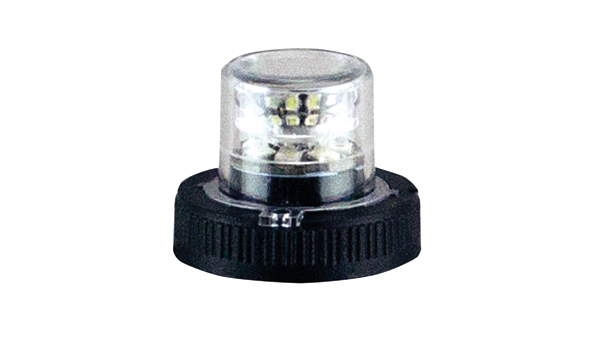

Model 12.4508 Bi-Color Covert LED

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Single Flash 120 FPM - all LEDs
2. Single Flash 120 FPM - ½ LEDs
3. Single Flash 120 FPM - alternating ½-½ LEDs
4. Single Flash 300 FPM - all LEDs
5. Single Flash 300 FPM - ½ LEDs
6. Single Flash 300 FPM - alternating ½-½ LEDs
7. Single Flash 75 FPM - all LEDs
8. Single Flash 75 FPM - ½ LEDs
9. Single Flash 75 FPM - alternating ½-½ LEDs
10. Double Flash 75 FPM - all LEDs
11. Double Flash 75 FPM - alternating ½-½ LEDs
12. Double Flash 120 FPM - all LEDs
13. Double 120 FPM - alternating ½-½ LEDs
14. Quad Flash 75 FPM - all LEDs
15. Quad Flash 75 FPM - ½ LEDs
16. Quad Flash 75 FPM - alternating ½-½ LEDs
17. Quad Flash 120 FPM - all LEDs
18. Quad Flash 120 FPM - ½ LEDs
19. Quad Flash 120 FPM - alternating ½-½ LEDs
20. Quint Flash 120 FPM - all LEDs
21. Quint Flash 120 FPM - alternating ½-½ LEDs
22. Alternating Module Flash - ½-½
23. Auto Run
24. Steady Burn
