Quadisc Compact
Mini Light Bars

Models 11.1193.000 / 11.1193.008
Models 12.1304.000 / 12.1304.008

  • Measuring only slightly larger than a sheet of copy paper, this powerful mini bar is useful in places where space is at a premium or where multiple lights are desired.

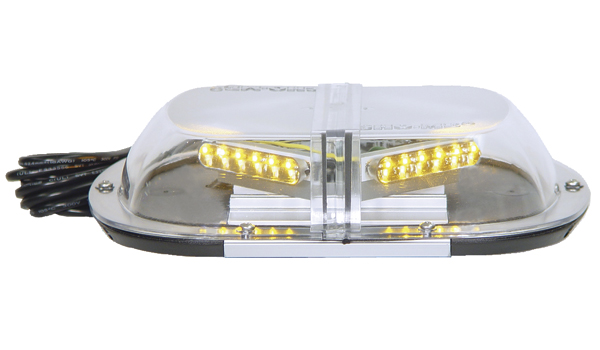

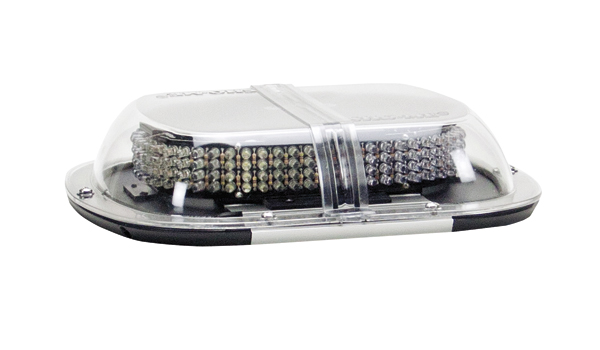

  • Take your pick of either 216 Standard LEDs or four SHO-OFF® LED modules with six 3W LEDs apiece (24 total) in plug-in or hardwire models.
  • Perfectly sized for motorcycles, ATVs, forklifts, and golf carts as well as utility, fire, security and mail delivery vehicles.
  • Models with Standard LEDs have an internal flasher with seven selectable patterns. (Listed in the table to the right as patterns 1 - 7.) Models with SHO-OFF® LEDs have an internal flasher with fifteen selectable patterns. (Shown in the table as patterns 7 - 21.)
  • Customize your mini bar with energy-efficient LEDs available in amber, blue, green, red and white. Choose up to four LED colors per mini bar.
  • The heavy-duty extruded aluminum base provides a rigid structure that won't warp or bend; plus a clear anodized coating covers the aluminum to inhibit corrosion.
  • A UV-resistant dome with gasket protects the LEDs and electronics from dust and debris. The aerodynamic, low-profile design improves fuel efficiency and saves money.

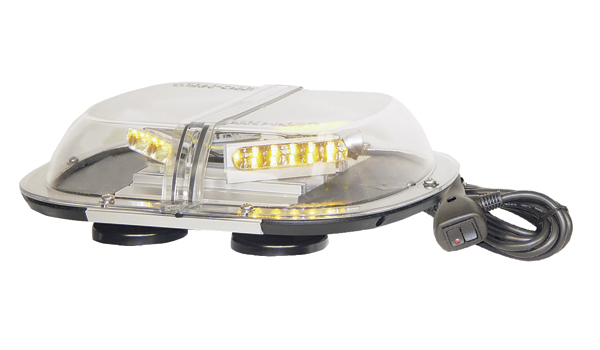

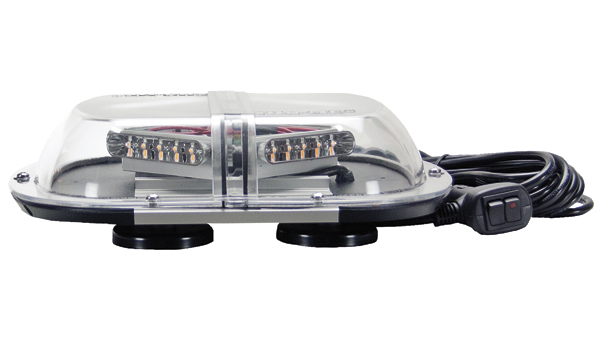

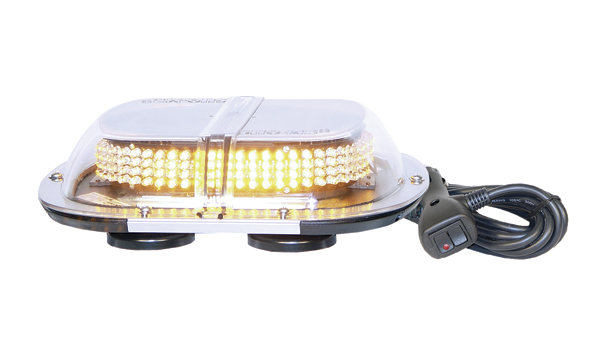

  • Plug-in models measure 3" H x 9-1/8" W x 10-3/4" L. They have a 15' straight power cord with a fused adapter plug with POWER & MODE switches, and four 60 lb-pull magnets.
  • Hardwire models measure 2-3/4" H x 9-1/8" W x 10-3/4" L. They come with a 15' power cable and mounting hardware. (Switch not included.)
  • Double stacked and interwoven SHO-OFF® LEDs are available upon request.
  • 12V standard, also available in 24V upon request.
  • 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs Wiring
11.1193.000 1.3A Max 216 Hardwire
11.1193.008 1.3A Max 216 Plug-In
12.1304.000 3A Max (24) 3W Hardwire
12.1304.008 3A Max (24) 3W Plug-In
Suggested Retail Price
Suggested retail price
11.1193.000 Standard LED / Hardwire $ 276.00
11.1193.008 Standard LED / Plug-In $ 316.00
12.1304.000 SHO-OFF® LED / Hardwire $ 446.00
12.1304.008 SHO-OFF® LED / Plug-In $ 486.00
Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch $   43.78
11.4959 Hi-Rise Legs - pair (2-3/8" H) $   45.58
33.0870 Headache Rack Brackets - (2) $ 100.28
90.3281.GRMT Cord, Dbl Switch, Grommet $   37.38

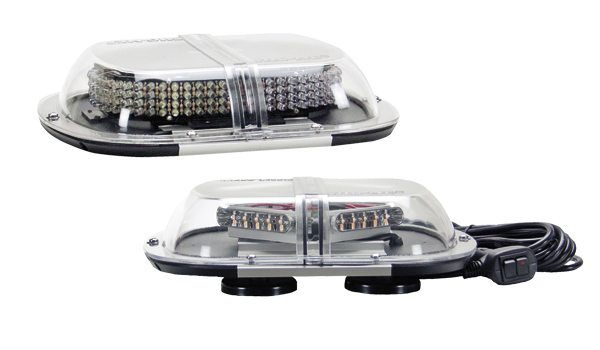

Quadisc Compact Mini Bars

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
 1. Alternating - Double Flash
 2. Alternating - Quad Flash
 3. Alternating - Quint Flash
 4. Simultaneous - Double Flash
 5. Simultaneous - Quad Flash
 6. Alternating - MEGA Flash
 7. Random
 8. Alternating Halves - Quad Flash
 9. Alternating Halves - 120 FPM
10. Alternating Halves - 240 FPM
11. Alternating Opposite Corners - Single Flash
12. Alternating Opposite Corners - 120 FPM
13. Alternating Opposite Corners - 240 FPM
14. Alternating Halves - Double Flash
15. Alternating Opposite Corners - Double Flash
16. Alternating Halves - Quad-ON
17. Alternating Halves - Double-ON
18. Alternating Opposite Corners - Quad-ON
19. Alternating Opposite Corners - Double-ON
20. Alternating Halves - MEGA
21. Alternating Opposite Corners - MEGA
Instructions
11.1193.000 Standard LED / Hardwire View PDF
11.1193.008 Standard LED / Plug-In View PDF
12.1304.000 SHO-OFF® LED / Hardwire View PDF
12.1304.008 SHO-OFF® LED / Plug-In View PDF
