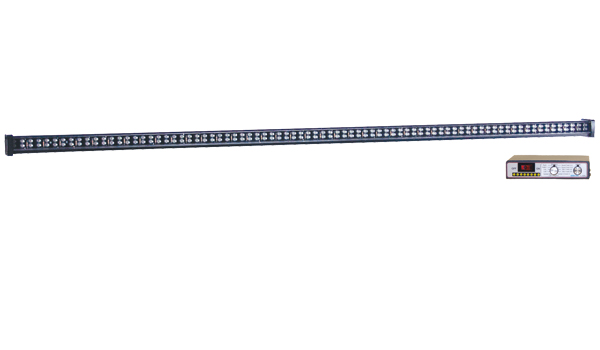

BTI LED Signal Stick

Model 11.8341.A-CONT

  • This super-slim directional light is only 1-3/8" in height so it can comfortably fit in narrow spaces without obstructing your view.

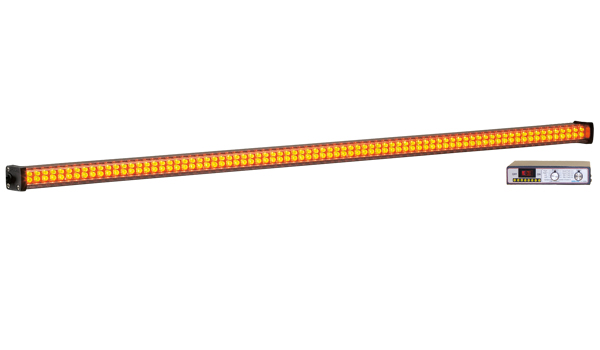

  • Direct traffic effectively and keep work zones safe with 164 high-intensity amber LEDs functioning in 12 selectable flash patterns.
  • Comes with a deluxe controller that has a pattern control dial, a variable speed control dial and LED flash pattern indicator lights. Includes a remote switch wire for optional random flash. Controller measures 1-3/8" H x 5-3/4" D x 6" L.
  • Built to last with an aluminum housing and a clear lens cover that protects LEDs from dust and debris. T-slot mounting channels on two sides facilitate different mounting configurations.
  • User-friendly plug-in connectors simplify installation. Just connect the controller end to the light end and click into place.
  • Includes controller, "L" brackets and 15' power cable.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amp H x D X L
11.8341.A-CONT 2.1A 1-3/8" x 1-1/2" x 40-3/8"
11.8341P.A-CONT 2.1A 1-3/8" x 1-1/2" x 40-3/8"
Suggested Retail Price
Suggested retail price
11.8341.A-CONT BTI LED Signal Stick $ 665.88
11.8341P.A-CONT BTI Signal Stick - WP $ 727.84

By The Inch Signal Stick

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Random Flash
2. Alternating Quad Flash: Left End - Right End
3. Alternating Quad Flash: Left Half - Right Half
4. Alternating Double Flash: Left End - Right End
5. Alternating Double Flash: Left Half - Right Half
6. Alternating Double Flash: Center - Ends
7. Alternating Single Flash: Left Half - Right Half
8. Center Out
9. Right Arrow: Double Flash End
10. Right Arrow
11. Left Arrow: Double Flash End
12. Left Arrow
View PDF of 11.8341.A-CONT Patterns.
Parts and Accessories
Suggested Retail Price
11.1000 Deluxe Controller $368.50
11.4471 Flat Glass Bracket with Tape $  22.52
11.4472.BTI L Brackets - pair $    8.34
11.4475 Glass Bracket $    6.80
11.8310.BKRT Dash Bracket $  16.04
11.8325BRKT Headliner Bracket $  18.30
Instructions
11.1000 Signal Stick Controller View PDF
11.8341.A-CONT BTI LED Signal Stick View PDF
