LED Signal Sticks

Models 11.2731 and 11.2741

  • Keep work zones safe with these directional lights.

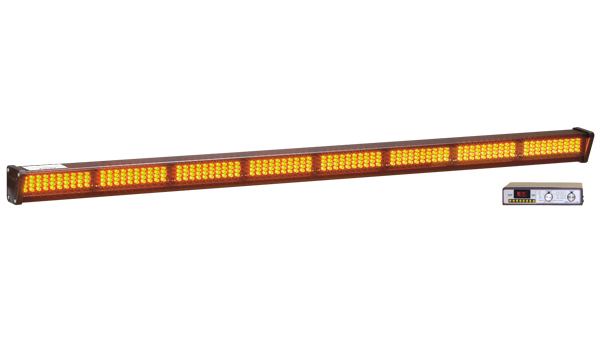

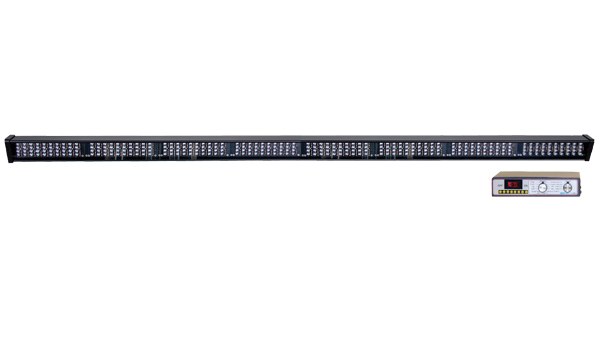

  • With an overall length of 41", Model 11.2741 has 320 high-intensity LEDs and fits in standard-sized vehicles.

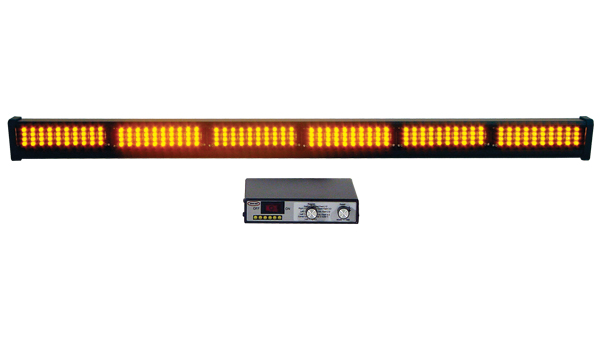

  • Model 11.2731 has an overall length of 31", 240 high-intensity LEDs, and fits in smaller-sized vehicles.
  • Reliable, long-lasting LEDs are energy-efficient, maintenance-free and available in five colors: amber, blue, green, red and white.
  • Comes with a deluxe controller that has 12 selectable flash patterns, a variable speed control dial & LED flash pattern indicator lights. Includes a remote switch wire for optional random flash.
  • Plug-in connectors and integral T-slot mounting channels on back and underside simplify installation.
  • Durable extruded aluminum housing has a clear lens cover to protect LEDs from dust and debris.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • Back cable exit.
  • Includes controller, "L" brackets and 15' power cable.
  • Controller measures 1-3/8" H x 5-3/4" D x 6" L.
  • 12 Volt
  • Made in the U.S.A.
Specifications

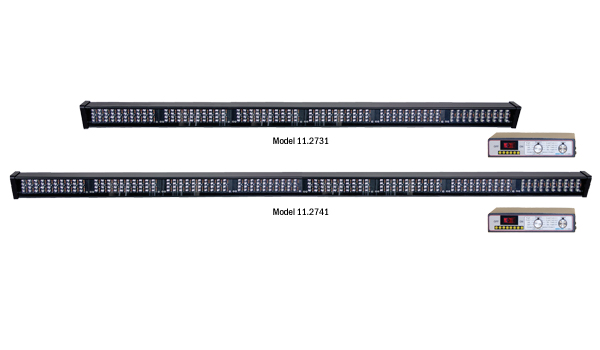

Model 11.2731
240 LEDs 4.0 Amps Max
1-7/8" H x 1-7/8" D x 31" L

Model 11.2741
320 LEDs 4.0 Amps Max
1-7/8" H x 1-7/8" D x 41" L
Suggested Retail Price
Suggested retail price
11.2731 All Colors $ 595.36
11.2731P Waterproof - All Colors $ 655.52
11.2741 All Colors $ 706.64
11.2741P Waterproof - All Colors $ 766.78

LED Signal Stick

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
1. Random Flash
2. Alternating Quad Flash: Left End - Right End
3. Alternating Quad Flash: Left Half - Right Half
4. Alternating Double Flash: Left End - Right End
5. Alternating Double Flash: Left Half - Right Half
6. Alternating Double Flash: Center - Ends
7. Alternating Single Flash: Left Half - Right Half
8. Center Out
9. Right Arrow: Double Flash End
10. Right Arrow
11. Left Arrow: Double Flash End
12. Left Arrow
View PDF of 11.2731 Patterns with Controller 11.1006.
View PDF of 11.2741 Patterns with Controller 11.1000.
Parts and Accessories
Suggested Retail Price
11.1000 Controller for 11.2741 $ 357.76
11.1006 Controller for 11.2731 $ 357.76
11.4473 L Brackets - pair $   11.06
11.4480 Glass Bracket for 11 Series $     9.62
Instructions
11.1000 Controller for 11.2741 Instructions
11.1006 Controller for 11.2731 Instructions
11.2731 31" LED Signal Stick Instructions
    Patterns
11.2741 41" LED Signal Stick Instructions
    Patterns
