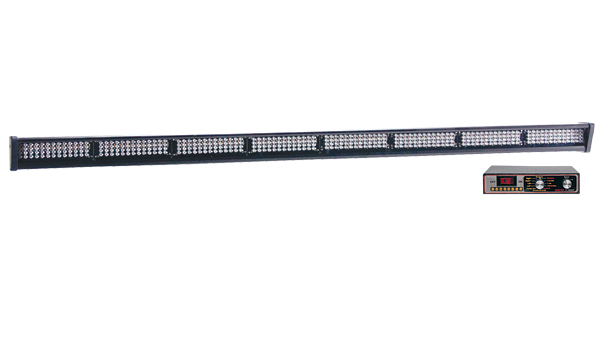

Chameleon LED Signal Stick

Model 11.2741CH

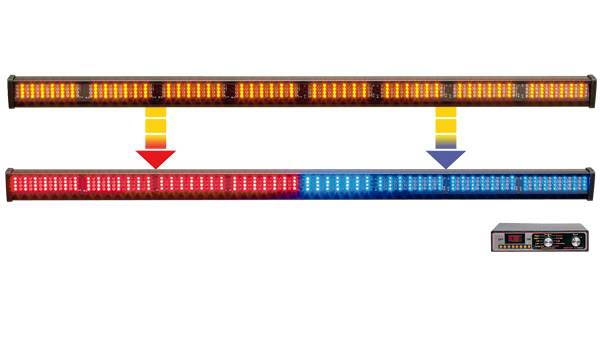

  • Directional and Warning Signal in ONE light!

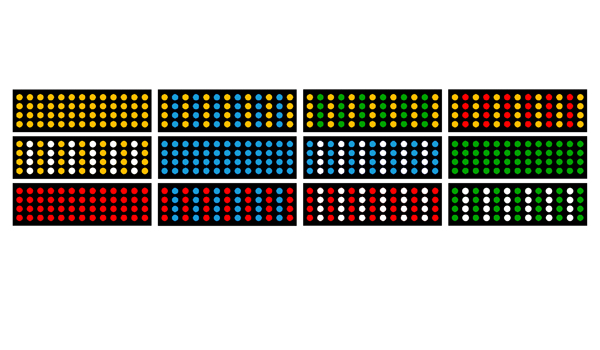

  • Two or three interwoven LED colors in each light. The Directional function uses 192 amber LEDs. The Warning function uses 224 LEDs in your choice of blue, green, red or white.

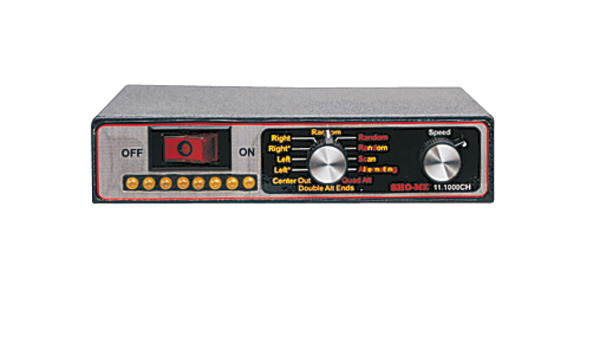

  • Comes with a deluxe controller that has 12 selectable flash patterns, a variable speed control dial and LED flash pattern indicator lights. Includes a remote switch wire for optional random flash.
  • Plug-in connectors and integral T-slot mounting channels on back and underside simplify installation.
  • Durable extruded aluminum housing has a clear lens cover to protect LEDs from dust and debris.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • Back cable exit.
  • Includes controller, "L" brackets and 15' power cable.
  • 12 Volt
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 5.2 amps max
Dimensions: 1-7/8" H x 1-7/8" D x 41"L
  1-3/8" H x 5-3/4" D x 6" L (controller)
Wiring: 15 ft. power cable
Suggested Retail Price
Suggested retail price
11.2741CH All Color Combinations $ 857.00
11.2741PCH Waterproof - All Color Combos $ 917.08

Chameleon LED Signal Stick

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
View PDF of Flash Patterns
Amber LEDs - Seven Directional Patterns
1. Right Arrow
2. Right Arrow*
3. Left Arrow
4. Left Arrow*
5. Center Out
6. Double Alternating Ends
7. Random
Warning LEDs - Two Patterns
1. Quad Alternating
2. Random
All LEDs - Three Patterns
1. Random
2. Scan
3. Alternating
Parts and Accessories
Suggested Retail Price
11.1000CH Deluxe Controller $ 405.50
11.4473 L Brackets - pair $   11.06
11.4480 Glass Bracket for 11 Series $     9.62
Instructions
11.2741CH LED Signal Stick View PDF
