LED Flashers with
Strobe-Style Patterns

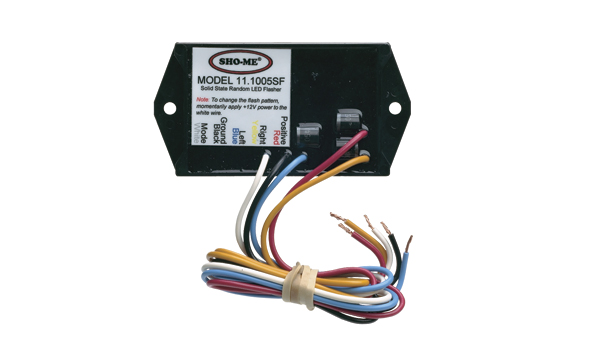

Models 11.1005SF / 11.1005SF.HD / 11.1005TSF

  • These reliable, solid-state, two-output LED flashers have seven strobe-style flash patterns that grab the attention of both motorists and passersby.
  • Epoxy-sealed electronics provide reliable operation and protection against moisture, vibration and shock. Excellent for applications requiring exterior mounting.

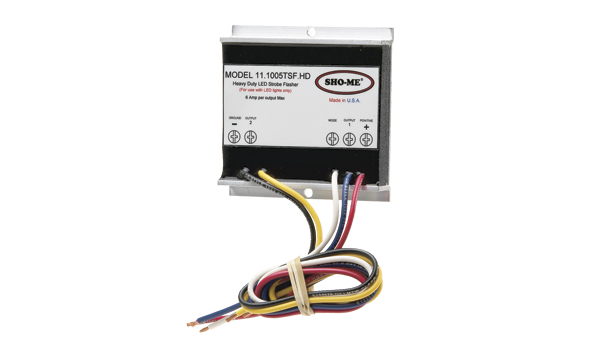

  • Model 11.1005SF.HD has two outputs with heavy-duty amperage making it ideal for multi-light systems.

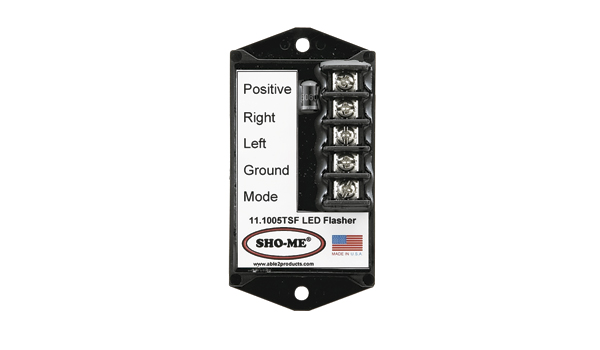

  • Model 11.1005TSF uses terminals instead of wires to simplify wiring connections.
  • Standard 12V; also available in 24V upon request.
  • Surface mounts with screws (provided).
  • Heavy-duty model measures 3-3/4" H x 7/8" D x 3-5/8" L. Other models measure 2" H x 1/2" D x 4" L.
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps per O/P Total Amps
11.1005SF 2 3A Max each 6A Max
11.1005SF.HD 2 6A Max each 12A Max
11.1005TSF 2 3A Max each 6A Max
Instructions
11.1005SF LED Flasher - Strobe Flash View PDF
11.1005SF.HD LED Flasher - Heavy-Duty View PDF
11.1005TSF LED Flasher - Terminals View PDF

LED Flashers with strobe-style patterns

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.




Flash Patterns
1. Random
2. Double Alternating
3. Quad Alternating
4. Quint Alternating
5. MEGA Alternating
6. Double Simultaneous
7. Quad Simultaneous
