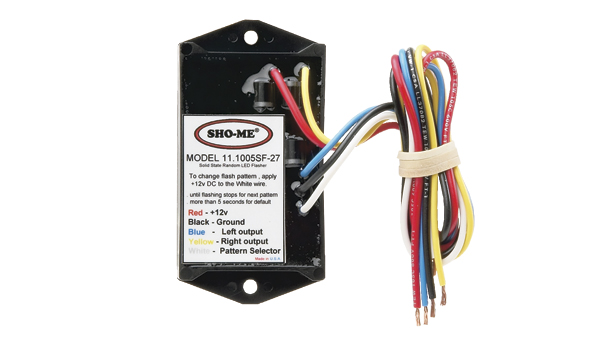

LED Flasher with
27 Strobe-Style Patterns
Model 11.1005SF-27
- Dependable, solid-state, two-output LED flasher has 27 strobe-style flash patterns. User-selectable patterns include alternating, simultaneous and random modes with up to 1200 FPM.
- Epoxy-sealed electronics provide reliable operation and protection against moisture, vibration and shock. Excellent for applications requiring exterior mounting.
- Standard 12V; also available in 24V upon request.
- Surface mounts with screws (provided).
- Measures 2" H x 1/2" D x 4" L
- For use with LED lights only.
- Made in the U.S.A.
Specifications
O/P = Output |
Model |
O/P |
Amps per O/P |
Total Amps |
11.1005SF-27 |
2 |
3A Max each |
6A Max |
Model and Description
Call for pricing |
11.1005SF-27 |
LED Flasher - 27 Patterns |
Instructions
11.1005SF-27 |
LED Flasher - 27 Patterns |
View PDF |
Click on thumbnail image to open enlarged view.
Flash Patterns
1. |
Alternating 120 FPS/M |
2. |
Simultaneous 120 FPS/M |
3. |
Alternating 240 FPS/M |
4. |
Simultaneous 240 FPS/M |
5. |
Alternating 800 FPS/M |
6. |
Simultaneous 800 FPS/M |
7. |
Alternating 1200 FPS/M |
8. |
Simultaneous 1200 FPS/M |
9. |
Double Alternating |
10. |
Double Simultaneous |
11. |
Quad Alternating |
12. |
Quad Simultaneous |
13. |
Double-ON Alternating |
14. |
Double-ON Simultaneous |
15. |
Quad-ON Alternating |
16. |
Quad-ON Simultaneous |
17. |
MEGA-ON Alternating |
18. |
MEGA-ON Simultaneous |
19. |
ULTRA-ON Alternating |
20. |
ULTRA-ON Simultaneous |
21. |
Quad-R Single-L Quad-L Single-R |
22. |
MEGA-R Single-L MEGA-L Single-R |
23. |
ULTRA-R Single-L ULTRA-L Single-R |
24. |
Phased |
25. |
Phased - ULTRA |
26. |
Single-Double-Hex |
27. |
Random All (default) |
