Flashpoint® Bi-Color
LED Beacons

Models 12.7233 / 12.7243 / 12.7253

  • Alert distracted drivers with ONE beacon that has TWO selectable colors for maximum visual impact.

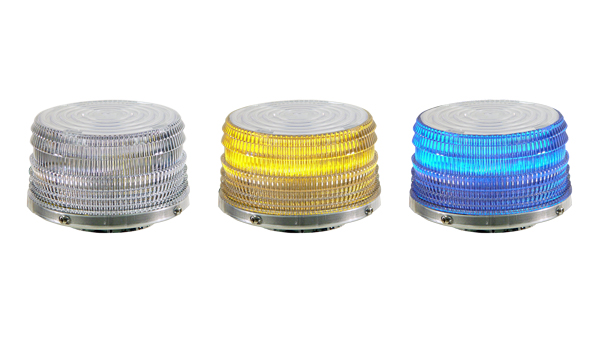

  • All models have (12) 3W LEDs in two tiers of (6) colored LEDs. LEDs are available in amber, blue, green, red and white.
  • Amber models meet SAE J845 Class 2 standards.
  • Self-contained flasher has three modes: Color 1 - Quad Flash, Color 2 - Quad Flash, and Both Colors - Alternating Quad Flash.
  • 3" polycarbon fresnel lens available in clear only.

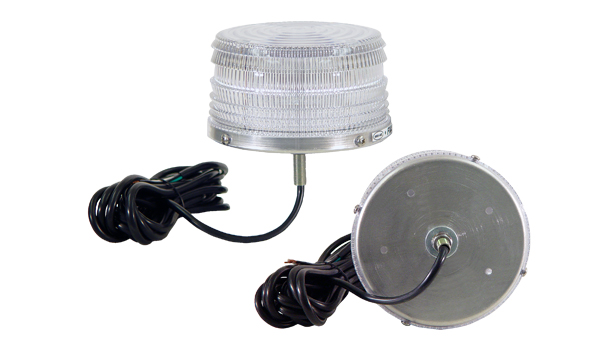

  • Model 12.7233 has an aluminum base with a standard center bolt mount and includes 12" wires for installation. Pipe mount with 1" threads is available for an additional charge. Switch sold separately.

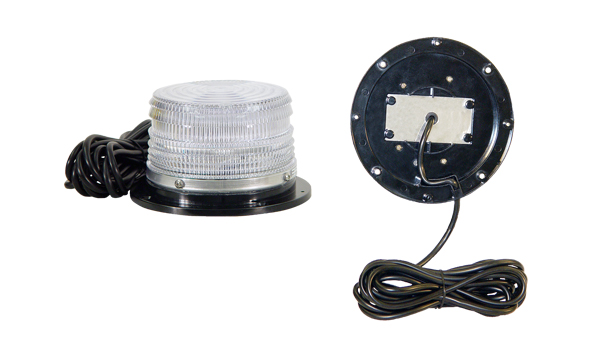

  • Model 12.7243 has a black plastic flush-mount base and includes 10" wires for installation. Switch sold separately.

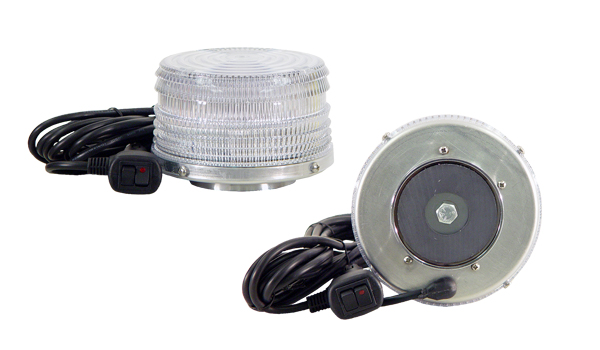

  • Model 12.7253 has a rust-resistant aluminum base with a 90 lb-pull magnet and includes a 15' straight cord with a switched plug-in adapter.
  • 12 Volt / Five year warranty.
  • Made in the U.S.A.
Specifications
Model Amps Mount Lens H x Diameter
12.7233 1.5A Stud 3" 3-1/4" x 5-1/2"
12.7243 1.5A Flush 3" 4" x 6-5/8"
12.7253 1.5A Magnet 3" 3-3/4" x 5-1/2"
Suggested Retail Price
Suggested retail price
12.7233* Beacon - 3" Lens, Stud Mount $  306.18
12.7243 Beacon - 3" Lens, Flush Mount $  306.18
12.7253 Beacon - 3" Lens, Magnet Mount $  306.18
* For Pipe-Mount (standard 1" thread) add: $    19.54

Flashpoint Bi-Color LED Beacons

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.




Parts and Accessories
Suggested retail price
11.1002 LED Double Switch $  45.10
11.1012 LED Micro Switch $  55.38
22.0113 3" Replacement Lens $  22.48
Instructions
12.7233 Beacon - Stud Mount View PDF
12.7243 Beacon - Flush Mount View PDF
12.7253 Beacon - Magnet Mount View PDF
