Flashpoint®
360° LED Beacons

Model 12.6233(SF) / 12.6243(SF) / 12.6253(SF)

  • These 360° beacons have internal flashers to provide a superior warning signal with a low amp draw.
  • Six super-bright 3W LEDs are available in solid arrays of amber, blue, green, red or white.
  • Models 12.6233, 12.6243 and 12.6253 each have a self-contained flasher with quad flash.
  • Models 12.6233SF, 12.6243SF and 12.6253SF each have a self-contained flasher with 5 strobe flash patterns - Quad, Triple, Double, Single and Random.
  • Available in three mounting styles: stud mount, flush mount and magnet mount.

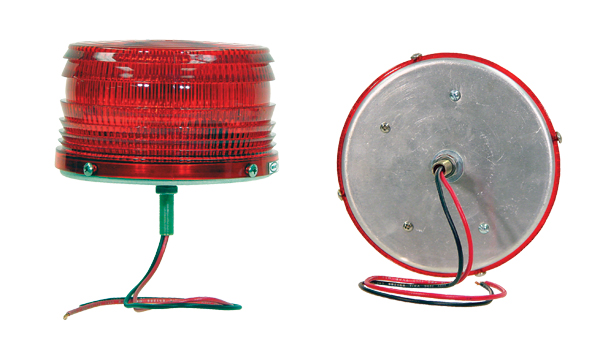

  • Models 12.6233 and 12.6233SF have an aluminum base with a standard center bolt mount and include 12" wires for installation. Pipe mount with 1" threads is available for an additional charge. Switch sold separately.

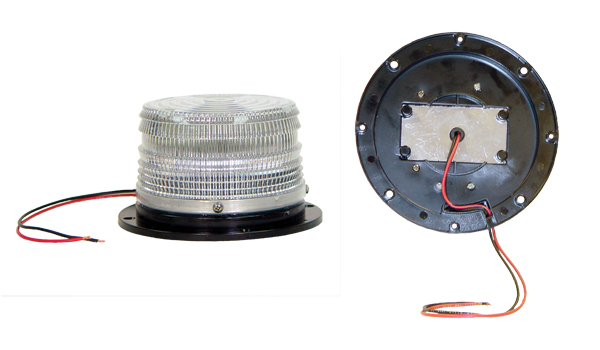

  • Models 12.6243 and 12.6243SF have a black plastic flush-mount base and include 10" wires for installation. Switch sold separately.

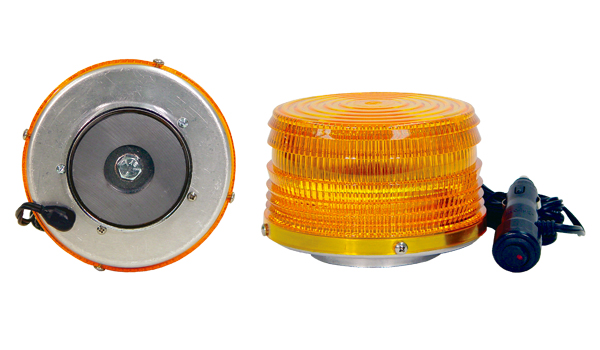

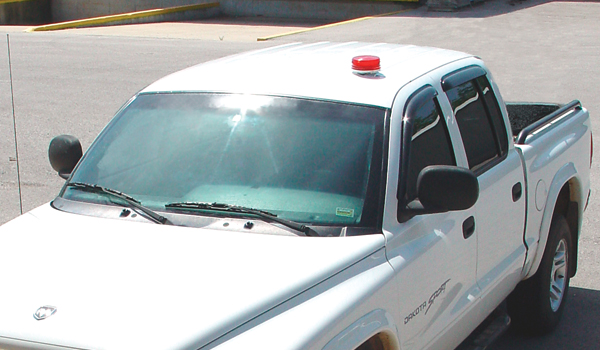

  • Models 12.6253 and 12.6253SF have a rust-resistant aluminum base with a 90 lb-pull magnet and include a 15' straight cord with a switched plug-in adapter.
  • Specify color of 3" fresnel lens: amber, blue, clear, green or red.
  • Amber models meet SAE J845 Class 2 standards.
  • 12 Volt / Five year warranty.
  • Made in the U.S.A.
Specifications
Model Amps Mount Lens H x Diameter
12.6233 1.5A Stud 3" 3-1/4" x 5-1/2"
12.6233SF 1.5A Stud 3" 3-1/4" x 5-1/2"
12.6243 1.5A Flush 3" 4" x 6-5/8"
12.6243SF 1.5A Flush 3" 4" x 6-5/8"
12.6253 1.5A Magnet 3" 3-3/4" x 5-1/2"
12.6253SF 1.5A Magnet 3" 3-3/4" x 5-1/2"
Suggested Retail Price
Suggested retail price
12.6233* 3" Lens, Stud, Quad Flash $  242.20
12.6233SF* 3" Lens, Stud, Strobe Flash $  242.20
12.6243 3" Lens, Flush, Quad Flash $  242.20
12.6243SF 3" Lens, Flush, Strobe Flash $  242.20
12.6253 3" Lens, Magnet, Quad Flash $  242.20
12.6253SF 3" Lens, Magnet, Strobe Flash $  242.20
* For Pipe-Mount (standard 1" thread) add: $    20.32

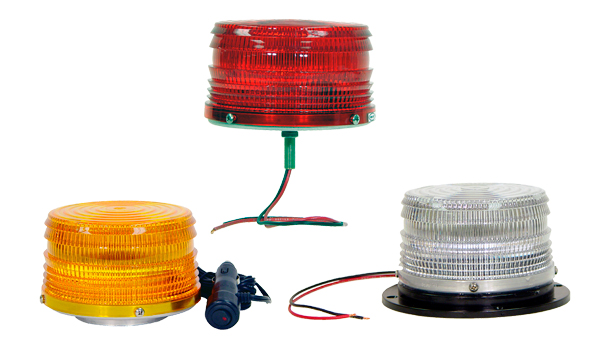

Flashpoint 360 Degree LED Beacons

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Parts and Accessories
Suggested retail price
10.0895 20A Single Switch with Panel $  19.78
11.1002 LED Double Switch $  46.90

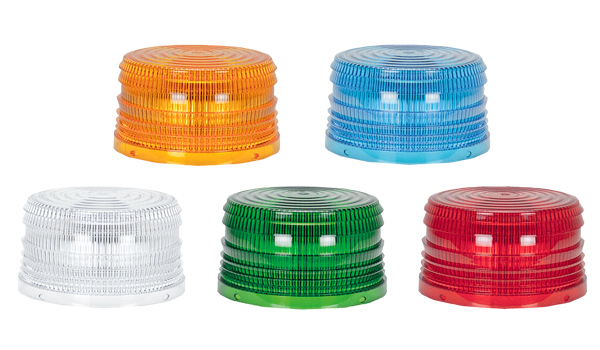

22.0113 3" Replacement Lens $  23.38
Instructions
12.6233 Instructions View PDF
12.6233SF Instructions View PDF
12.6243 Instructions View PDF
12.6243SF Instructions View PDF
12.6253 Instructions View PDF
12.6253SF Instructions View PDF
