LightStorm® LED
Off-Road / Scene Lights

Models 12.6501 / 12.6502 / 12.6503 / 12.6504 / 12.6505 / 12.6506

  • Dramatically brightens locations with super-bright 3W SHO-OFF® LEDs with reflectors.
  • Floods surrounding area with wide-angle white light.
  • Turns on and off instantly - no waiting for lights to warm up.
  • Each scene light is comprised of a series of stacked reflector modules containing twelve 3W LEDs.
  • Six lengths accommodate a variety of applications.

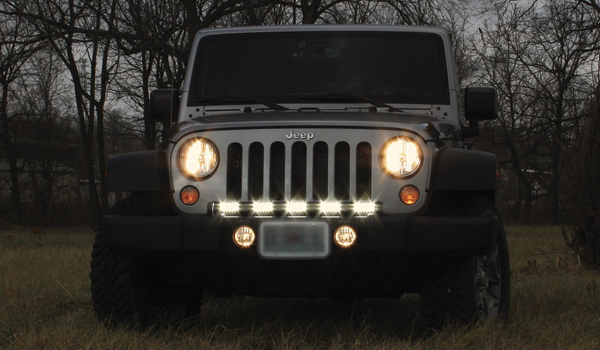

  • Ideal for off-road vehicles, RVs, pickups, farm equipment, and police/fire vehicles.
  • Sturdy extruded aluminum housing.

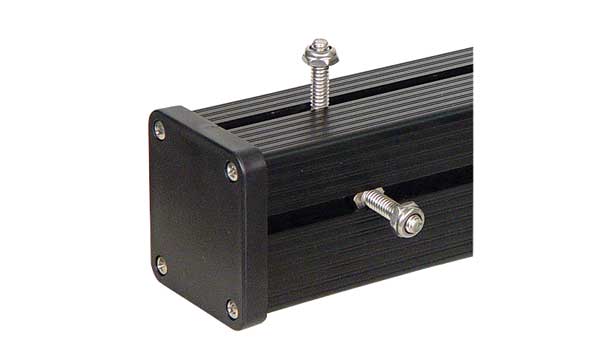

  • Versatile T-slot (slide bolt) mounting channels on back and underside.
  • Clear lens cover protects LEDs from dust and debris.
  • Heavy-duty L brackets and 15-foot cable included.
  • Cable exits from bottom of light.
  • Custom mounting brackets sold separately.
  • 12V standard, 24V available upon request.
  • Made in the U.S.A.
Specifications
Model 12.6501
Amperage: 1.2 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 5-3/8" L

Model 12.6502
Amperage: 2.4 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 11-3/8" L

Model 12.6503
Amperage: 3.6 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 18" L

Model 12.6504
Amperage: 4.8 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 24" L

Model 12.6505
Amperage: 6.0 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 30-1/4" L

Model 12.6506
Amperage: 7.2 amps max
Dimensions: 2-1/4" H x 2-3/8" W x 41-5/16" L

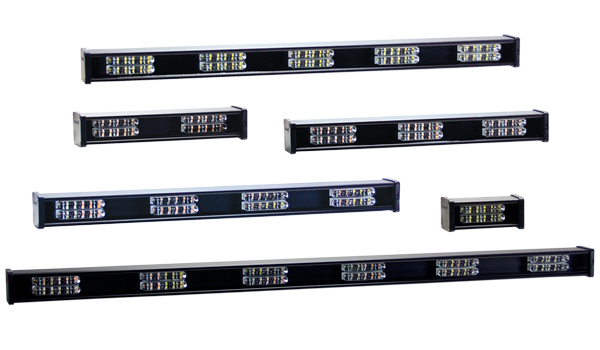

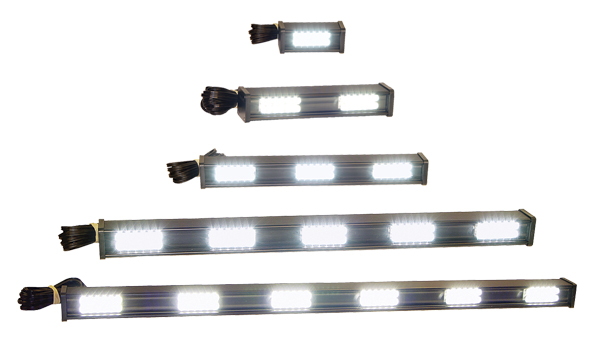

Six models of LightStorm Off-Road / Scene Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Suggested Retail Price
Suggested retail price
12.6501 1 section SHO-OFF LEDs $    229.66
12.6502 2 sections SHO-OFF LEDs $    417.56
12.6503 3 sections SHO-OFF LEDs $    626.36
12.6504 4 sections SHO-OFF LEDs $    835.14
12.6505 5 sections SHO-OFF LEDs $ 1,043.92
12.6506 6 sections SHO-OFF LEDs $ 1,252.70
Parts and Accessories
Suggested Retail Price
11.4473 L Brackets - pair (Channel Mount) $   11.06
Instructions
12.6500 Off-Road / Scene Lights View PDF
