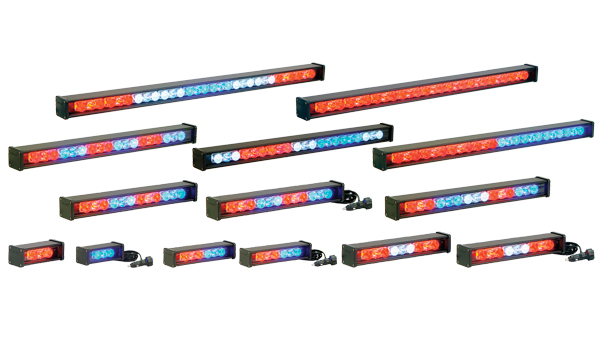

LightStorm®
LED Warning Sticks
Models 12.6101 / .6101S / .6102 / .6102S / .6103 / .6103S / .6104 / .6104S / .6105 / .6106 / .6107 / .6108 / .6109 and .6110
- Select the perfectly-sized warning light for your vehicle from our collection of LightStorm LED Warning Sticks.
- Three-watt Luminator LEDs utilize Total Reflection optics to provide exceptionally bright light.
- Diffusing lenses on two-thirds of the Luminator LEDs in each warning stick disperse light horizontally. The other third provide concentrated forward light.
- Each group of three Luminators is available in your choice of amber, blue, green, red or white.
- Solid-state, self-contained flashers produce attention-grabbing patterns. Patterns vary with length of light.
- All standard models have a 15-foot power cable for hard wiring. (Remote switch sold separately.)
- Models 12.6101S / 12.6102S / 12.6103S and 12.6104S have 15-foot power cables and adapter plugs with POWER and MODE switches.
- Linear regulators eliminate RF interference.
- The sturdy aluminum housing has versatile T-slot (slide bolt) mounting channels on back and underside.
- A clear lens cover protects LEDs from dust, debris and inclement weather.
- End power cable location.
- Suitable for interior or exterior use.
- 12V / Made in the U.S.A. / 2 year warranty
Specifications
*Does not include pattern number 22 |
Model |
Amps |
LEDs |
Patterns |
Length |
12.6101 |
0.75 Max |
3 |
1-10 |
6-3/8" |
12.6101S |
0.75 Max |
3 |
1-10 |
6-3/8" |
12.6102 |
1.5 Max |
6 |
1-24 |
9-7/8" |
12.6102S |
1.5 Max |
6 |
1-24 |
9-7/8" |
12.6103 |
2.25 Max |
9 |
1-28* |
13-3/8" |
12.6103S |
2.25 Max |
9 |
1-28* |
13-3/8" |
12.6104 |
3.0 Max |
12 |
1-40* |
16-7/8" |
12.6104S |
3.0 Max |
12 |
1-40* |
16-7/8" |
12.6105 |
3.75 Max |
15 |
1-40* |
20-3/8" |
12.6106 |
4.50 Max |
18 |
1-40* |
23-7/8" |
12.6107 |
5.25 Max |
21 |
1-40* |
27-3/8" |
12.6108 |
6.0 Max |
24 |
1-40* |
30-7/8" |

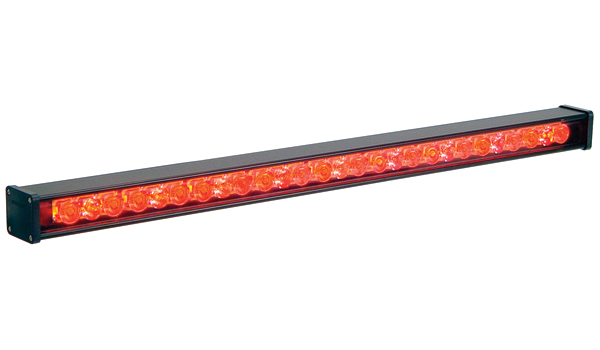

12.6109 |
6.75 Max |
27 |
1-40* |
34-3/8" |
12.6110 |
7.5 Max |
30 |
1-40* |
37-7/8" |
Model and Description
Call for pricing |

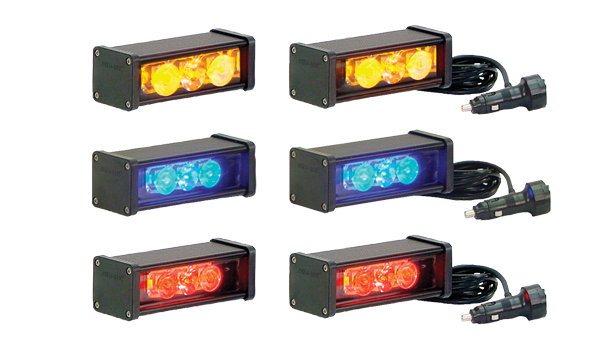

12.6101 |
6-3/8" Light - hardwire |
12.6101S |
6-3/8" Light - plug in |

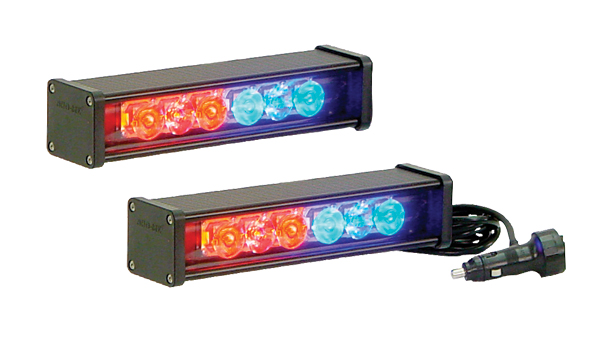

12.6102 |
9-7/8" Light - hardwire |
12.6102S |
9-7/8" Light - plug in |
12.6103 |
13-3/8" Light - hardwire |
12.6103S |
13-3/8" Light - plug in |
12.6104 |
16-7/8" Light - hardwire |
12.6104S |
16-7/8" Light - plug in |

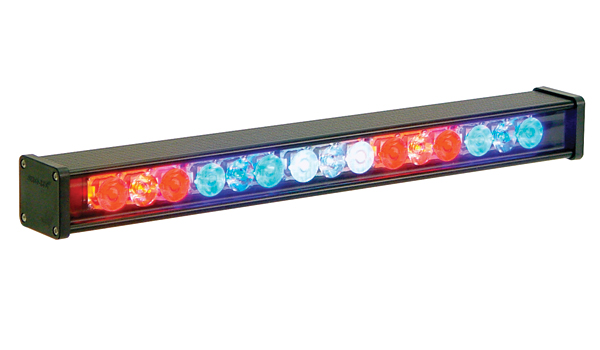

12.6105 |
20-3/8" Light - hardwire |

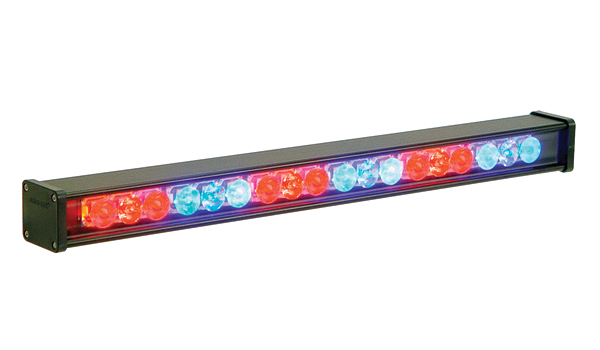

12.6106 |
23-7/8" Light - hardwire |

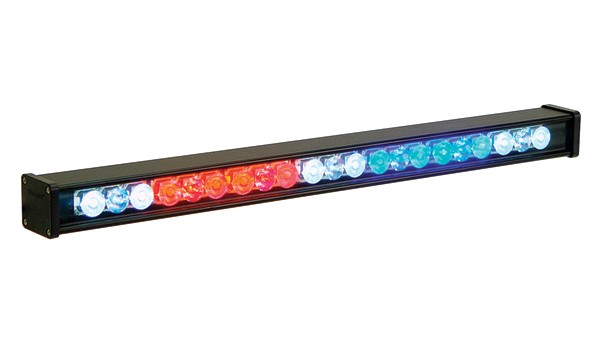

12.6107 |
27-3/8" Light - hardwire |

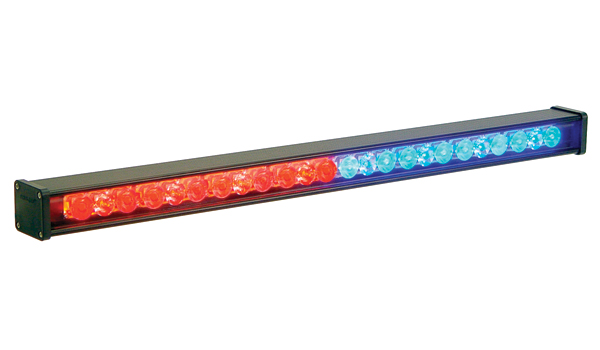

12.6108 |
30-7/8" Light - hardwire |
12.6109 |
34-3/8" Light - hardwire |

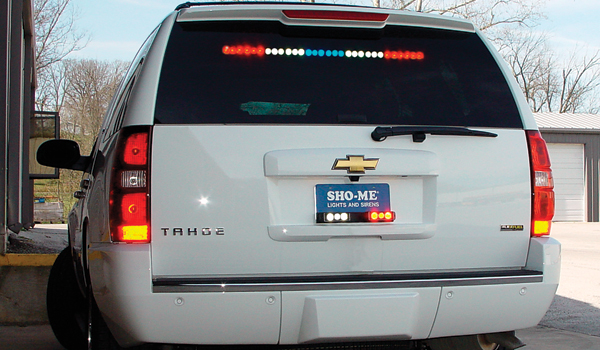

12.6110 |
37-7/8" Light - hardwire |
Parts and Accessories
Call for pricing |
11.4473 |
L Brackets - pair |
Click on thumbnail image to open enlarged view.
Flash Patterns
1. |
Simultaneous 120 FPM |
2. |
Simultaneous 240 FPM |
3. |
Simultaneous 600 FPM |
4. |
Simultaneous 1200 FPM |
5. |
Double Simultaneous |
6. |
Quad Simultaneous |
7. |
Double-ON Simultaneous |
8. |
Quad-ON Simultaneous |
9. |
Fast -Slow Simultaneous |
10. |
Random All (Default) |
11. |
Alternating 120 FPM ½ & ½ |
12. |
Alternating 240 FPM ½ & ½ |
13. |
Alternating 600 FPM ½ & ½ |
14. |
Alternating 1200 FPM ½ & ½ |
15. |
Double Alternating ½ & ½ |
16. |
Quad Alternating ½ & ½ |
17. |
Double-ON Alternating ½ & ½ |
18. |
Quad-ON Alternating ½ & ½ |
19. |
Fast -Slow Alternating ½ & ½ |
20. |
MEGA-ON Alternating ½ & ½ |
21. |
MEGA-ON Simultaneous |
22. |
Phased (12.6102 and 12.6102S only) |
23. |
Random Alternating Patterns - All |
24. |
Random Simultaneous Patterns - All |
25. |
Scan Slow |
26. |
Scan Fast |
27. |
Scan - MEGA |
28. |
Random Sequential Patterns - All |
29. |
Alternating 120 FPM even / odd sections |
30. |
Alternating 240 FPM even / odd sections |
31. |
Alternating 600 FPM even / odd sections |
32. |
Alternating 1200 FPM even / odd sections |
33. |
Double Alternating even / odd sections |
34. |
Quad Alternating even / odd sections |
35. |
Double -ON Alternating even / odd sections |
36. |
Quad-ON Alternating even / odd sections |
37. |
Fast -Slow Alternating even / odd sections |
38. |
MEGA-ON Alternating even / odd sections |
39. |
Scan Slow - Double |
40. |
Scan Fast - Double |
Instructions
12.6101 |
6" Warning Stick - hardwire |
View PDF |
12.6101S |
6" Warning Stick - plug-in |
View PDF |
12.6102 |
10" Warning Stick - hardwire |
View PDF |
12.6102S |
10" Warning Stick - plug-in |
View PDF |
12.6103 |
13" Warning Stick - hardwire |
View PDF |
12.6103S |
13" Warning Stick - plug-in |
View PDF |
12.6104 |
17" Warning Stick - hardwire |
View PDF |
12.6104S |
17" Warning Stick - plug-in |
View PDF |
12.6105 |
20" Warning Stick - hardwire |
View PDF |
12.6106 |
24" Warning Stick - hardwire |
View PDF |
12.6107 |
27" Warning Stick - hardwire |
View PDF |
12.6108 |
31" Warning Stick - hardwire |
View PDF |
12.6109 |
34" Warning Stick - hardwire |
View PDF |
12.6110 |
38" Warning Stick - hardwire |
View PDF |
