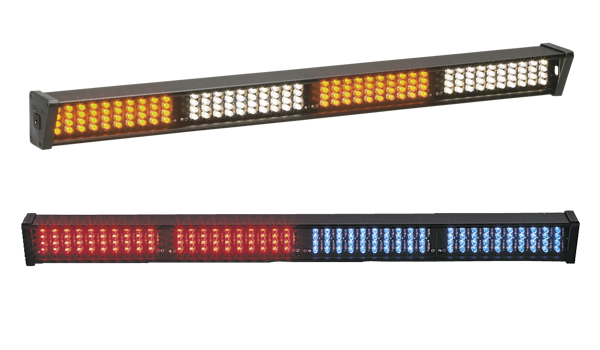

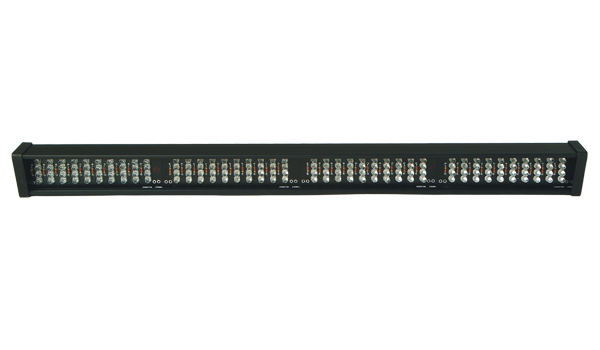

LED Quad Stick Light

Model 11.2720

  • Deliver extreme light with a 21" long stick light that can be used for deck, headliner and grille lighting.
  • Four side-by-side sections have a total of 160 high-intensity LEDs in your choice of amber, blue, green, red or white.

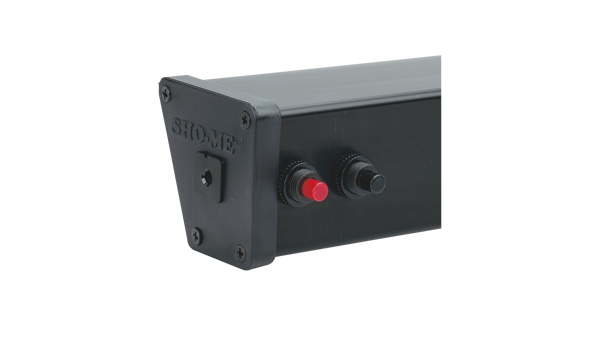

  • Standard housing-mounted push-button power & mode switches control seven flash patterns. Also available with an optional housing-mounted rotary pattern selector with up to 15 flash patterns (for an additional charge).
  • The durable extruded aluminum housing has a clear lens cover to protect LEDs from dust and debris.
  • Includes a 10' power cord, fused adapter plug and L brackets. Additional mounting options are sold separately. Back cable exit.
  • For even more versatility, consider ordering this housing with interwoven Chameleon LEDs - contact factory for pricing.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • Other lights in this series include Double Stick Light, Triple Stick Light and Quint Stick Light.
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs Dimensions
11.2720 2.0A 160 2" H x 2" D x 21" L
Suggested Retail Price
Suggested retail price
11.2720 LED Quad Stick Light $ 509.26
11.2720P Waterproof LED Quad Stick Light $ 555.18

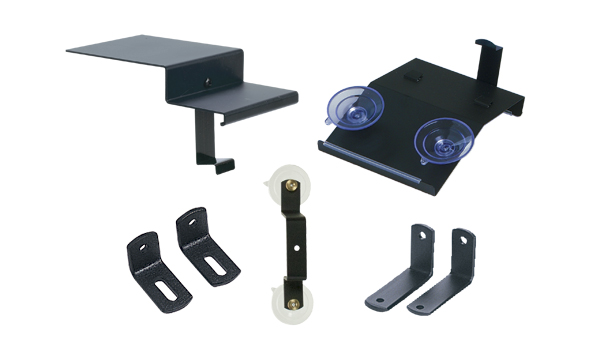

Parts and Accessories
Suggested Retail Price
11.2010 Dash Bracket $  16.04
11.2026 Headliner Bracket $  17.16
11.4472 L Brackets (pair) $    8.34
11.4474 Windshield L Brackets (pair) $  11.00

LED Quad Stick Light

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.





Flash Patterns
Standard Flash Patterns
  1. Alternating Quad Flash - left / right
  2. Simultaneous Quad Flash
  3. Sequential Quad Flash - left - right / right - left
  4. Alternating Single Flash - left / right
  5. Sequential Single Flash - left - right / right - left
  6. Alternating Double Flash - 1-3 / 2-4
  7. Random - patterns 1 - 6

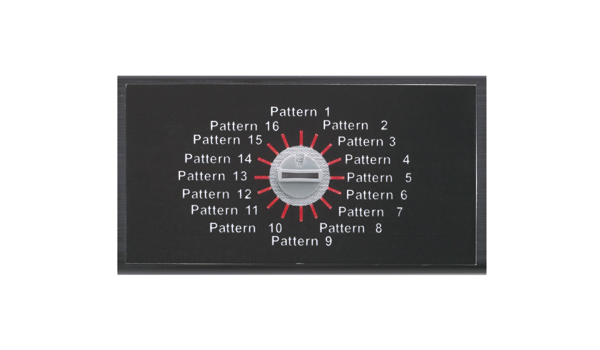

Rotary Selector Flash Patterns
  1. Alternating Single Flash - 1-3 / 2-4
  2. Simultaneous MEGA Flash
  3. Alternating Double Flash - ends / center
  4. Inverted Double Scan
  5. Alternating Single Flash - left / right
  6. Alternating Single Flash - ends / center
  7. Simultaneous Single Flash
  8. Double Scan 2
  9. Double Scan 1
10. Alternating Quad Flash - left / right
11. Alternating Quad Flash - ends / center
12. Simultaneous Double Flash
13. Simultaneous Quad Flash
14. Random Fast
15. Random All
Instructions
11.2720 LED Quad Stick Light View PDF
11.2720.ROT LED Quad Stick Light - rotary View PDF
