12V Self-Contained
Short LED Arrow Boards

Models 02.6316WP / 02.6334WP / 02.6352WP

  • Bring the warning power of an LED arrow board with you wherever you go.
  • Waterproof internal flasher with four operational modes: right arrow, left arrow, double arrow and center bar.
  • Two center-off, housing-mounted toggle switches for pattern selection.
  • 20-foot power cable with adapter plug.
  • 40.5" long housing has (8) 4" diameter LED lamps.

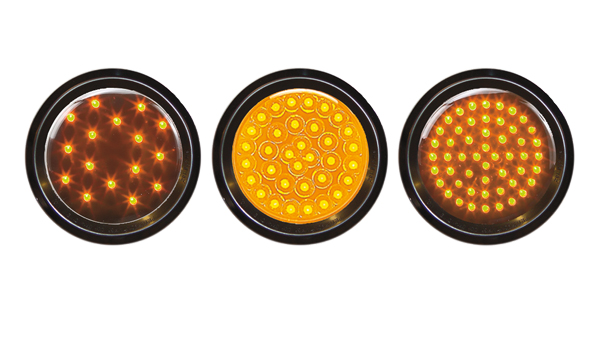

  • PAR 36 lamps are available in three styles:
    (1) Standard LED - 16 LEDs per lamp,
    (2) Mega-Bright LED - 34 LEDs per lamp,
    (3) Ultra-Bright LED - 52 LEDs per lamp.
  • Heavy-gauge, epoxy-coated aluminum construction.
  • Comes with a durable ABS plastic dust cover that protects wiring from weather and dust.
  • Mounting brackets sold separately.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 1.6 amps max (Standard LED lights)
  2.4 amps max (Mega-Bright LED lights)
  5.2 amps max (Ultra-Bright LED lights)
Dimensions: 13" H x 40-1/2" L x 3" D (Arrow Board)
Wiring: 20 ft. pre-wired heavy-duty harness
Suggested Retail Price
Suggested retail price

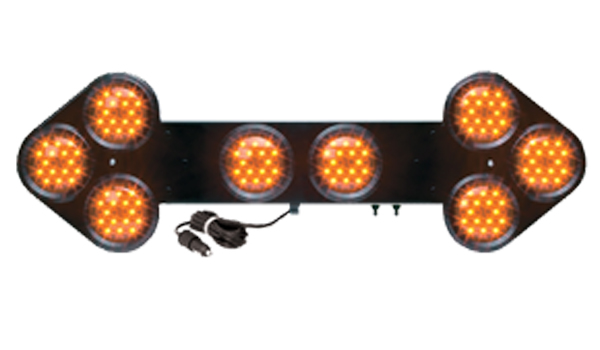

02.6316WP Short Board (Standard) $   906.36

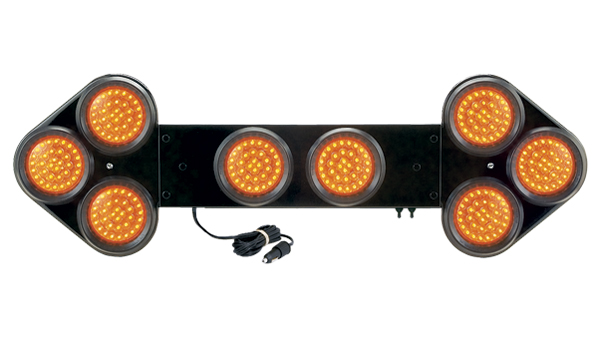

02.6334WP Short Board (Mega-Bright) $1,003.28

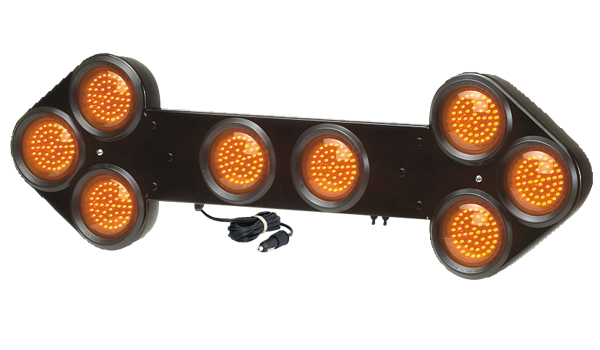

02.6352WP Short Board (Ultra-Bright) $1,333.00

Self-Contained Short LED Arrow Board

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Double Arrow
 4. Center Bar
Parts and Accessories
Suggested Retail Price
02.6016 Magnetic Mounting Bracket (pair) $ 130.10
02.6018 Tailgate Mounting Bracket (pair) $   93.56
02.8516 Standard PAR 36 LED Light $   56.18
02.8534 Mega-Bright PAR 36 LED Light $   74.08
02.8552 Ultra-Bright PAR 36 LED Light $ 107.30
Instructions
02.6316WP Instructions View PDF
02.6334WP Instructions View PDF
02.6352WP Instructions View PDF
