12V Self-Contained
Two-Piece LED Arrow Boards

Models 02.6216WP / 02.6234WP / 02.6252WP

  • Bring the warning power of an LED arrow board with you wherever you go.
  • Self-contained flasher eliminates need for separate control box .
  • Split housing mounts on bucket trucks and other vehicles where a traditional arrow board would be difficult to position.
  • Waterproof internal flasher with four operational modes: right arrow, left arrow, double arrow and corner caution lamps.
  • Two center-off, housing-mounted toggle switches control pattern selection.
  • 20-foot power cable with adapter plug.
  • Each panel has five 4" diameter amber LED lamps.
  • LED lamps are available in three styles:

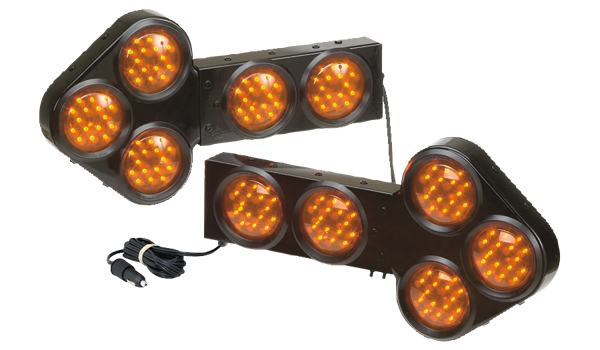

    Standard PAR 36 LED with 16 high-intensity LEDs,

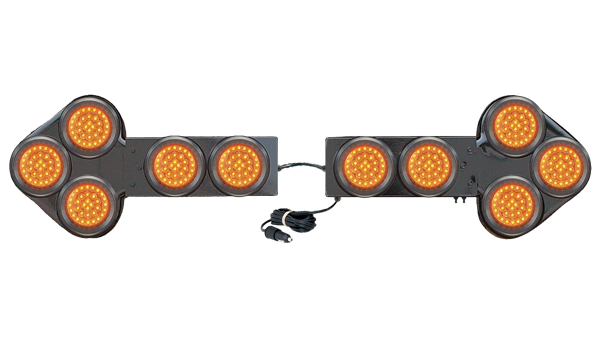

    Mega-Bright PAR 36 LED with 34 high-intensity LEDs in metalized chambers,

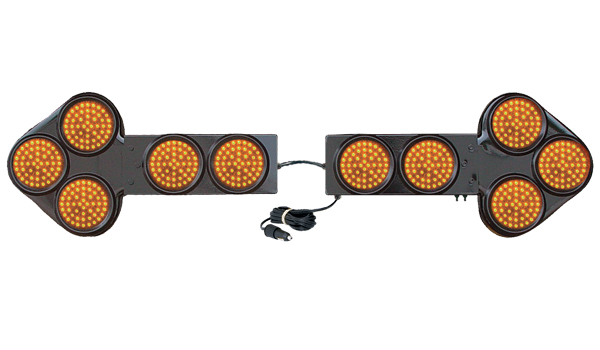

    Ultra-Bright PAR 36 LED with 52 high-intensity LEDs.
  • Heavy-gauge, epoxy-coated aluminum construction.
  • Six heavy-duty threaded inserts in each panel accommodate a variety of mounting applications.
  • Mounting brackets sold separately.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 2.0 amps max (Standard LED)
  3.0 amps max (Mega-Bright LED)
  6.5 amps max (Ultra-Bright LED)
Dimensions: 13" H x 24" L x 2-1/2" D (each piece)
Wiring: 20 ft. power cable with adapter plug
Suggested Retail Price
Suggested retail price
02.6216WP Two-Piece (Standard LEDs) $1,214.16
02.6234WP Two-Piece (Mega-Bright) $1,331.46
02.6252WP Two-Piece (Ultra-Bright LEDs) $1,745.02

Self-Contained Two-Piece LED Arrow Board

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Double Arrow
 4. Corner Lamps
Parts and Accessories
Suggested Retail Price
02.6018 Tailgate Mounting Bracket (pair) $   93.56
02.6220 Magnetic Mounting Bracket (pair) $ 249.06
02.8516 Standard PAR 36 LED Light $   56.18
02.8534 Mega-Bright PAR 36 LED Light $   74.08
02.8552 Ultra-Bright PAR 36 LED Light $ 107.30
Instructions
02.6216WP Instructions View PDF
02.6234WP Instructions View PDF
02.6252WP Instructions View PDF
