Flashpoint® X-TREME
LED Beacons
Models, 13.2134 / 13.2136 / 13.2144 / 13.2146 / 13.2154 / 13.2156

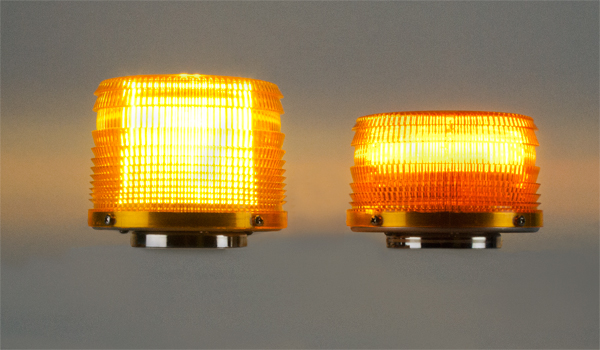

- Four LED panels, each with 30 LED dies, project 360° of intense light that fills the lens from top to bottom.
- A built-in flasher generates a double flash pattern that commands the attention of motorists and pedestrians.

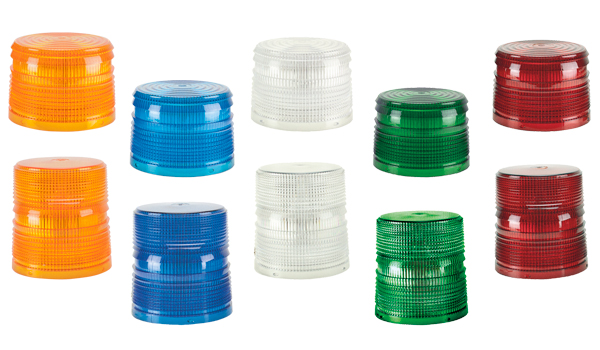

- Polycarbon fresnel lenses are available in 4" or 6" heights in amber, blue, clear, green or red.

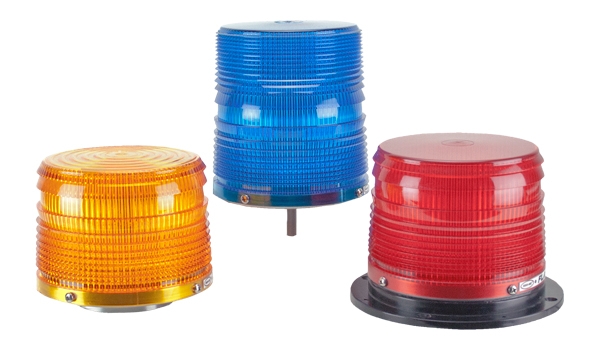

- Models 13.2134 and 13.2136 have stud-mount aluminum bases and include 12" wires for installation. Available with 1" standard pipe thread upon request. Switch sold separately.
- Models 13.2144 and 13.2146 have black plastic flush-mount bases and include 10" wires for installation. Switch sold separately.
- Models 13.2154 and 13.2156 have rust-resistant aluminum bases with 90 lb-pull magnets and include 15' straight cords with switched plug-in adapters.
- 12 Volt / 2 year warranty.
- Made in the U.S.A.
Specifications
Model |
Amps |
Mount |
Lens |
H x Diameter |
13.2134 |
2.0A |
Stud |
4" |
4-1/4" x 5-1/2" |
13.2136 |
2.0A |
Stud |
6" |
6-1/4" x 5-1/2" |
13.2144 |
2.0A |
Flush |
4" |
5" x 6-5/8" |
13.2146 |
2.0A |
Flush |
6" |
7" x 6-5/8" |
13.2154 |
2.0A |
Magnet |
4" |
4-3/8" x 5-1/4" |
13.2156 |
2.0A |
Magnet |
6" |
6-3/8" x 5-1/4" |
Model and Description
Call for pricing |
13.2134* |
Beacon - 4" Lens, Stud Mount |
13.2136* |
Beacon - 6" Lens, Stud Mount |
13.2144 |
Beacon - 4" Lens, Flush Mount |
13.2146 |
Beacon - 6" Lens, Flush Mount |
13.2154 |
Beacon - 4" Lens, Magnet Mount |
13.2156 |
Beacon - 6" Lens, Magnet Mount |
* For Pipe-Mount (standard 1" thread) add: |
Click on thumbnail image to open enlarged view.
Parts and Accessories
Call for pricing |
05.1 |
Single Switch with Panel |
22.0104 |
4" Replacement Lens |
22.0106 |
6" Replacement Lens |
Instructions
13.2134 |
Beacon - Stud Mount - 4" Lens |
View PDF |
13.2144 |
Beacon - Flush Mount - 4" Lens |
View PDF |
13.2146 |
Beacon - Flush Mount - 6" Lens |
View PDF |
13.2154 |
Beacon - Magnet Mount - 4" Lens |
View PDF |
13.2156 |
Beacon - Magnet Mount - 6" Lens |
View PDF |
