Flash Force LED Mini Bars

Models 11.1400.000 / 11.1400.008

  • Powerful 18W LED modules on each end of this low-profile mini bar create high visibility at the corners.
  • Hybrid design has 352 high-intensity LEDs and two SHO-OFF 18W LED modules - one at each end of the mini bar.

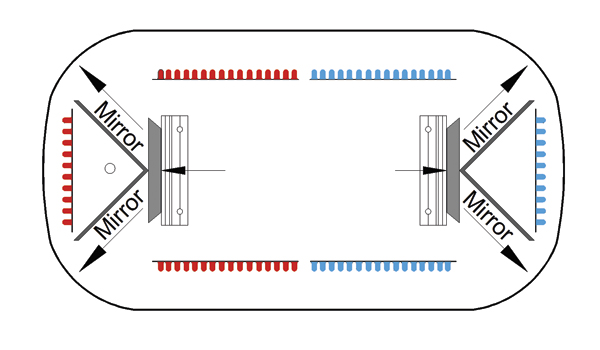

  • V-shaped mirrors enhance the flash of the LED modules and create a wide light beam for greater visibility.
  • Solid-state flasher has seven strobe-type patterns.
  • Low-profile design improves fuel efficiency.
  • UV-resistant dome protects LEDs from dust & debris.
  • Rigid, heavy-duty aluminum base won't warp or bend.
  • LEDs available in amber, blue, green, red and white.
  • Hardwire models have a 15' power cable.
  • Plug-In models have a 15' straight power cord with a fused adapter plug with a POWER rocker switch and a MODE momentary switch, and four 90 lb-pull magnets.
  • End power cord location.
  • 12V standard, also available in 24V upon request.
  • Made in the U.S.A.
Specifications
Model Amps Dimensions
11.1400.000 5.0 Max 2-3/4" H x 9-1/8" W x 17-1/4" L
11.1400.008 5.0 Max 3" H x 9-1/8" W x 17-1/4" L
Model and Description
Call for pricing
11.1400.000 Flash Force - Hardwire
11.1400.008 Flash Force - Plug-In
Parts and Accessories
Call for pricing
05.11 Remote Double Switch
11.0308 Repl. Magnet w/ Hardware
11.4476 Self-Leveling Bracket
11.4959 Hi-Rise Legs (pair)
33.0870 Headache Rack Brackets
90.6127 Replacement Dome

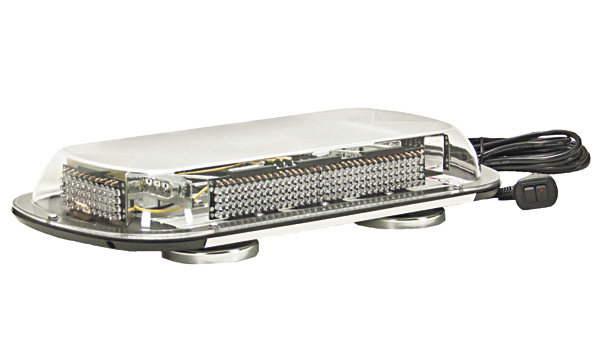

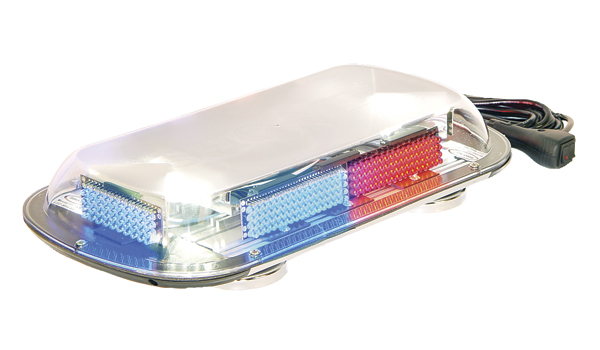

Flash Force LED Mini Bar

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
 1. Alternating - Double Flash
 2. Alternating - Quad Flash
 3. Alternating - Quint Flash
 4. Simultaneous - Double Flash
 5. Simultaneous - Quad Flash
 6. Alternating - MEGA Flash
 7. Random
Instructions
11.1400.000 Flash Force - Hardwire Instructions
11.1400.000 Flash Force Layout
11.1400.008 Flash Force - Plug-In Instructions
