Micro-Rotary LED Switch
with Multi-Output Flasher

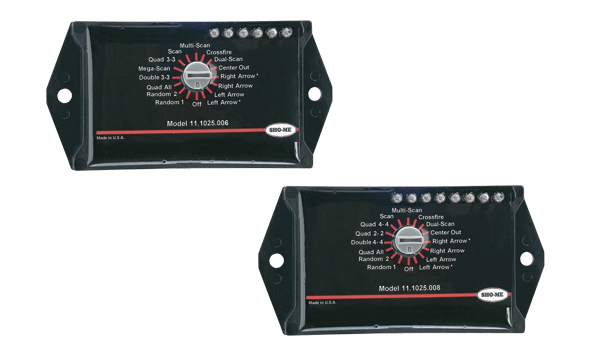

Models 11.1025.006 / 11.1025.008
- Easily control LED lighting systems with these solid-state, multi-output LED flashers with built-in micro-rotary switches.
- Micro-rotary switch enables fingertip control of 15 flash patterns including crossfire, directional arrows and center out.
- LED flash pattern indicator lights visually display selected flash pattern.
- Epoxy-sealed to ensure reliable operation and protect against moisture, vibration and shock.
- Surface mounts with screws (provided).
- Model 11.1025.006 has six negative 1A outputs. Model 11.1025.008 has eight negative 1A outputs.
- Standard 12V; also available in 24V upon request.
- Measures 2" H x 1/2" D x 4" L
- For use with LED lights only.
- Negative switched.
- Made in the U.S.A.
Specifications
O/P = Output |
Model |
O/P |
Amps/ O/P |
Total Amps |

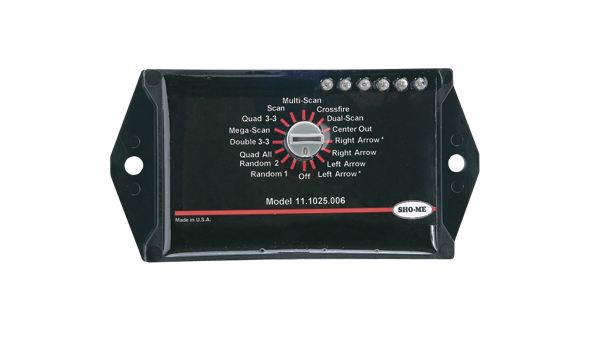

11.1025.006 |
6 |
1A Max Each (-) |
5A Max |

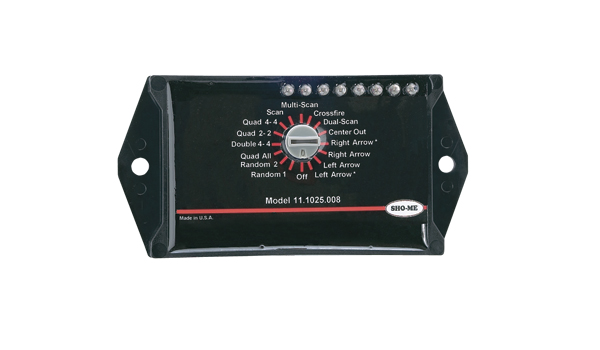

11.1025.008 |
8 |
1A Max Each (-) |
5A Max |
Model and Description
Call for pricing |
11.1025.006 |
Rotary Sw. - 6 Output Flshr |
11.1025.008 |
Rotary Sw. - 8 Output Flshr |
Instructions
11.1025.006 |
Rotary Sw. - 6 Output Flshr |
View PDF |
11.1025.008 |
Rotary Sw. - 8 Output Flshr |
View PDF |
Click on thumbnail image to open enlarged view.
Flash Patterns
1. |
Multi-Scan |
2. |
Crossfire |
3. |
Dual Scan |
4. |
Center Out |
5. |
Right Arrow |
6. |
Right Arrow - Double End Flash |
7. |
Left Arrow |
8. |
Left Arrow - Double End Flash |
9. |
Random 1 |
10. |
Random 2 |
11. |
Quad All |
12. |
Double Halves |
13. |
MEGA Scan or Quad 2-2 |
14. |
Quad Halves |
15. |
Scan |
