LED Portable Folding
Directional Arrow

18", 36", 48" & 60"

  • Safely control traffic flow and protect workers with the LED Portable Folding Directional Arrow.

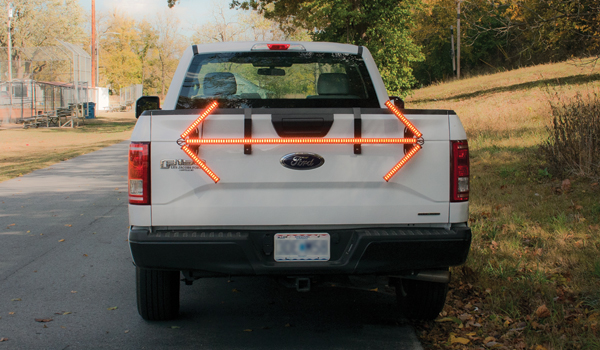

  • Available with amber LEDs in 36", 48" and 60" lengths, this effective warning light fits most utility, construction, tow and D.O T. vehicles.

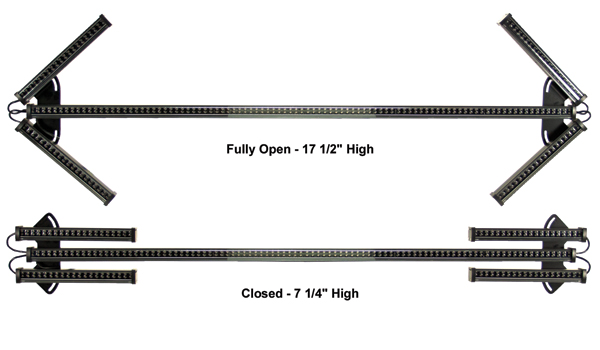

  • The LED Portable Folding Directional Arrow is easy to transport and simple to store. It easily expands from 7-1/4" H when fully closed to 17-1/2" H when open.

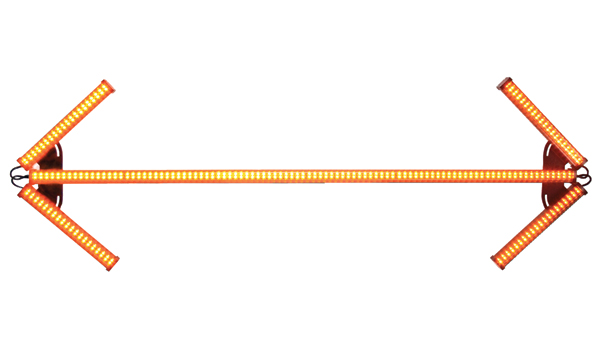

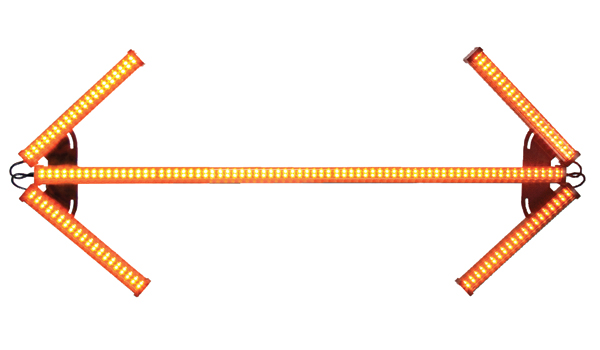

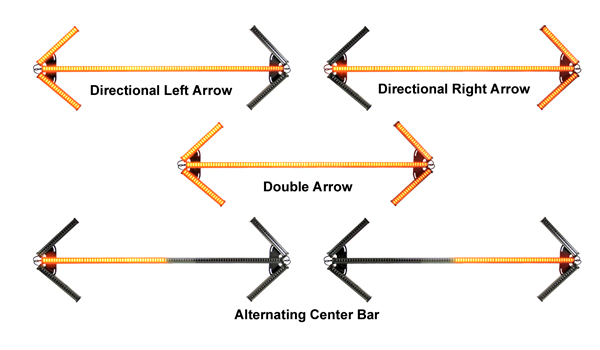

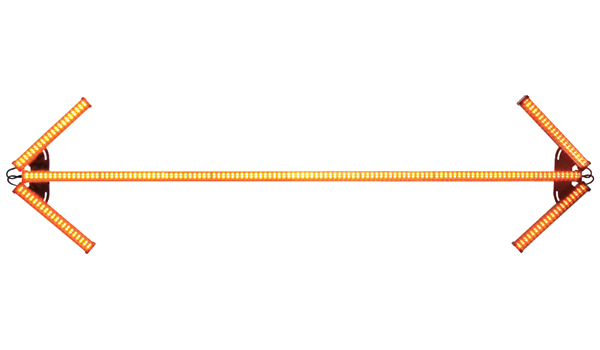

  • Four directional patterns: center out double arrow, right arrow, left arrow and alternating center bar.

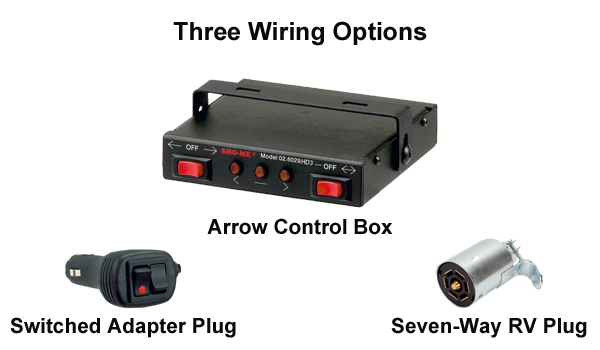

  • Available in three wiring configurations: arrow control box with 15-foot cable; switched plug-in adapter with 15-foot cable; or RV plug with blade connectors, housing-mounted momentary switch and 5-foot cable.
  • A variety of brackets (sold separately) utilize the integral T-slot channels located on the bottom and back of the arrow housing.
  • Two year warranty
  • 12 Volt
  • Made in the U.S.A.
Specifications
Models Amps LEDs H x W x L (Open)
18" 2.0A 168 17-1/2" x 1-7/8" x 21-1/2"
36" 2.0A 304 17-1/2" x 1-7/8" x 36-3/4"
48" 2.0A 352 17-1/2" x 1-7/8" x 48-3/4"
60" 2.5A 400 17-1/2" x 1-7/8" x 60-3/4"
<
Model and Description
Call for pricing
01.1815.A00 18" Arrow with Adapter Plug
01.1820.A00 18" Arrow with Control Box
01.1825.A00 18" Arrow with RV Plug
01.3615.A00 36" Arrow with Adapter Plug
01.3620.A00 36" Arrow with Control Box
01.3625.A00 36" Arrow with RV Plug
01.4815.A00 48" Arrow with Adapter Plug
01.4820.A00 48" Arrow with Control Box
01.4825.A00 48" Arrow with RV Plug
01.6015.A00 60" Arrow with Adapter Plug
01.6020.A00 60" Arrow with Control Box
01.6025.A00 60" Arrow with RV Plug

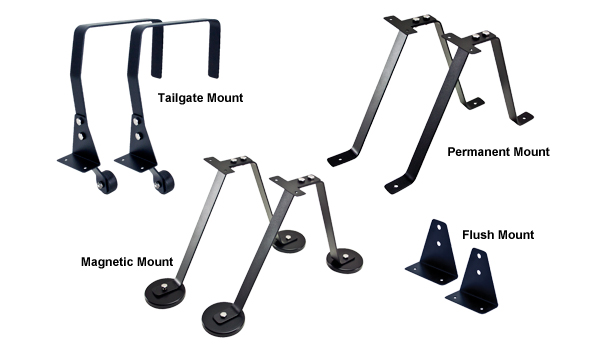

Parts and Accessories
Call for pricing
01.4010 Tailgate Mount (pair)
01.4012 9-1/2" H Permanent Mount (pair)
01.4014 9-3/4" H Magnetic Mount (pair)
90.4436 Flush Mount Brackets (pair)

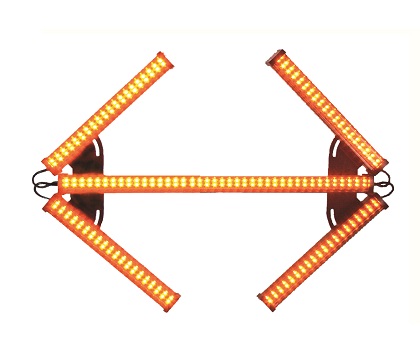

LED Portable Folding Directional Arrow

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.






Instructions
01.1815.A00 Instructions*** View PDF
01.1820.A00 Instructions*** View PDF
01.1825.A00 Instructions*** View PDF
01.3615.A00 Instructions View PDF
01.3620.A00 Instructions View PDF
01.3625.A00 Instructions View PDF
01.4815.A00 Instructions View PDF
01.4820.A00 Instructions View PDF
01.4825.A00 Instructions View PDF
01.6015.A00 Instructions View PDF
01.6020.A00 Instructions View PDF
01.6025.A00 Instructions View PDF
