Standard Arrow Boards

Models 02.6000 / 02.6009 / 02.6100 / 02.6052 / 02.6116 / 02.6134

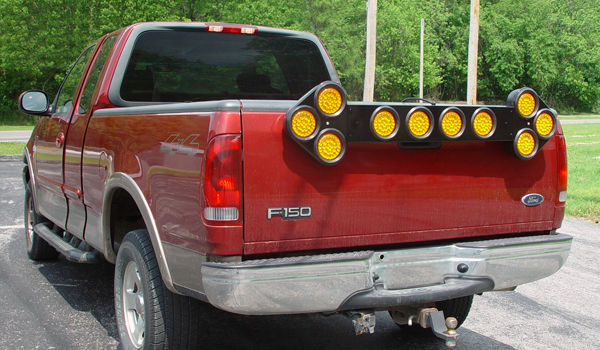

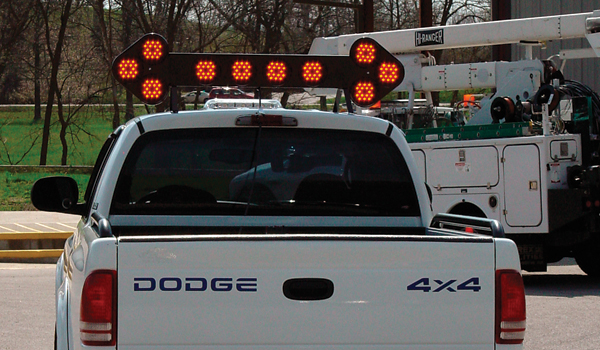

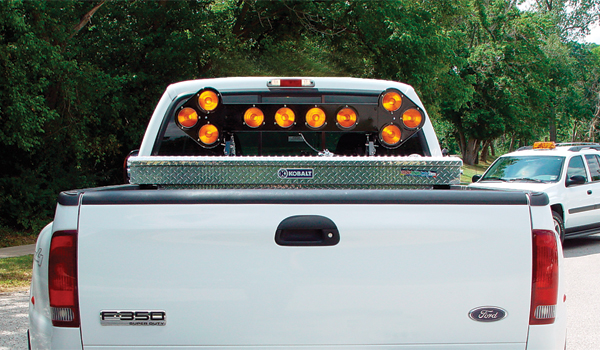

  • A traditional workhorse designed to fit standard-sized vehicles. Effectively keeps work zones safe.
  • Ten 4" diameter amber lamps are available in six styles: Standard LED, Mega-Bright LED, Ultra-Bright LED, LumenX® LED, Regular Incandescent and Shock-Mounted Incandescent.
  • Alert motorists and control traffic flow with four operational modes (60 single FPM): right arrow, left arrow, double arrow and center bar.
  • Cab-mounted control box has two "center off" rocker switches, flash pattern indicator lights, a 20-foot pre-wired harness, and a bail bracket for mounting.
  • Standard plug-in connectors allow easy removal and reattachment of the Arrow Board.
  • All Standard Arrow Boards measure 13" H x 3" D x 54" L and are constructed of sturdy, heavy-gauge, epoxy-coated aluminum.
  • A durable ABS plastic dust cover is included to protect wiring from weather and dust.
  • Model 02.6029HD3 control box measures 1-1/4" H x 6-1/4" D x 6" L.
  • 12V standard (Model 05.2412.020 24V converter is available for LED models 02.6009, 02.6052, 02.6116 and 02.6134. Sold separately.)
  • Standard Arrow Boards with LED lamps are also available in Portable versionswith internal flashers and plug-in wiring.
  • Mounting brackets are sold separately.
  • Made in the U.S.A.
Specifications
Model Amps Lamp Type

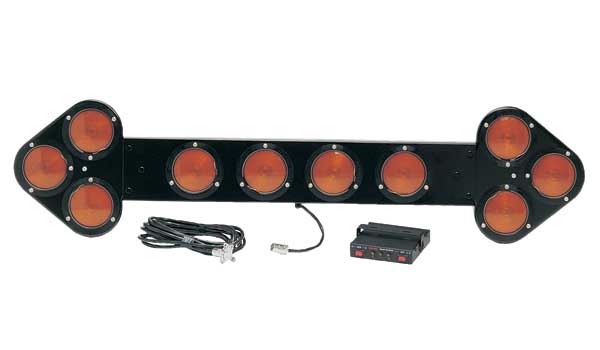

02.6000 21 Max Incandescent

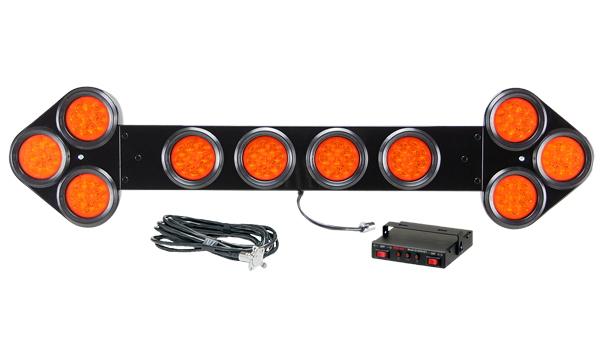

02.6009 4.0 Max LumenX® - 9 LEDs per lamp

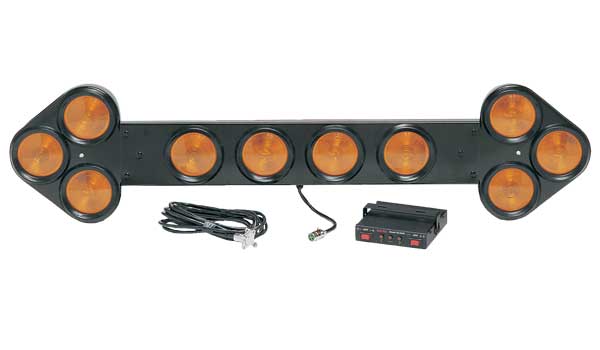

02.6100 21 Max Shock-Mounted Incandescent

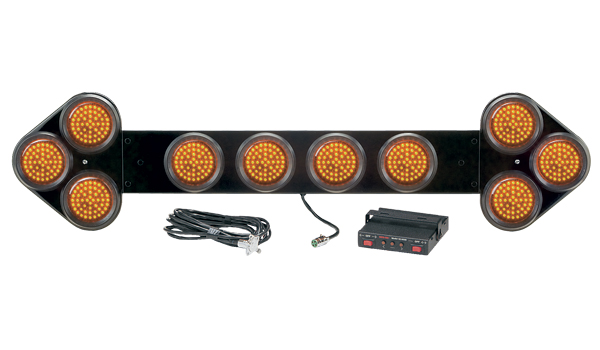

02.6052 6.5 Max Ultra-Bright - 52 LEDs per lamp

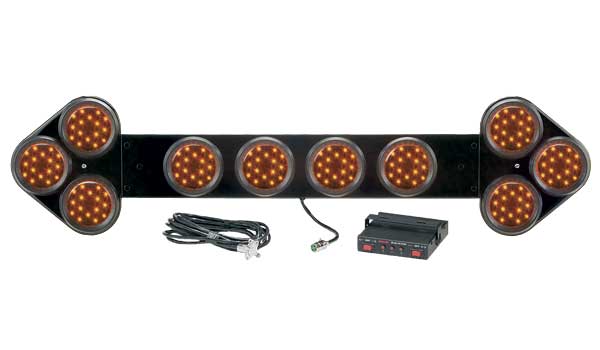

02.6116 2.0 Max Standard - 16 LEDs per lamp

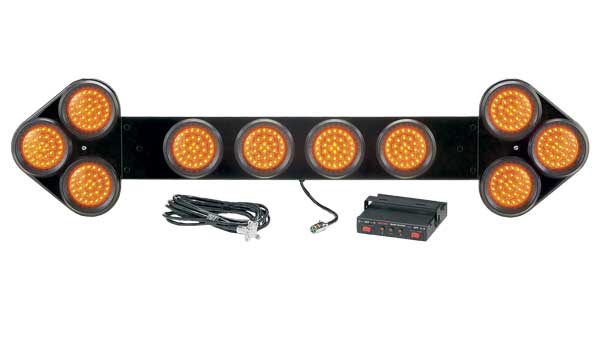

02.6134 3.0 Max Mega-Bright - 34 LEDs per lamp

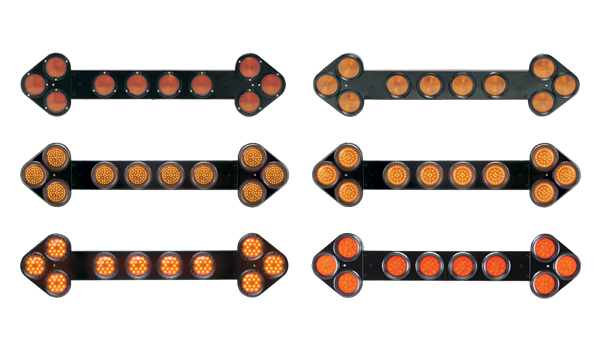

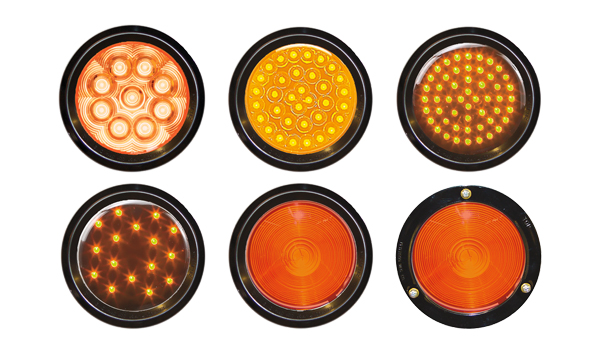

Standard Arrow Boards with six bulb styles.

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.

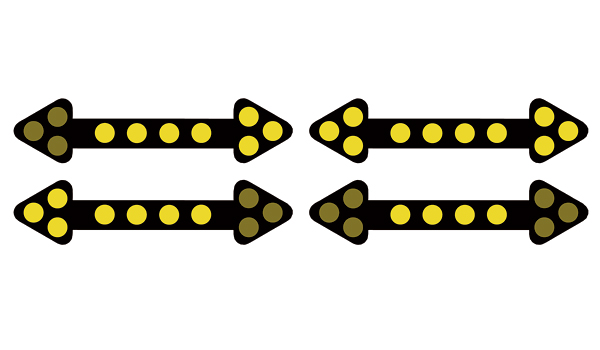

Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Center Bar
 4. Double Arrow
Parts and Accessories
Call for pricing
02.5949 LumenX® LED Bulb Assembly
02.6016 Magnetic Mount Bracket (pair)
02.6017 Permanent Mount Bracket (pair)
02.6018 Tailgate Mount Bracket (pair)
02.6029HD3 Controller
02.6032 Regular Lamp Assembly
02.6042 Hinged Assembly (for 02.6017)
02.6152 Shock-Mounted Lamp Assembly
02.6225 Flush Mount Brackets (pair)
02.8516 Standard PAR 36 LED Light
02.8534 Mega-Bright PAR 36 LED Light
02.8552 Ultra-Bright PAR 36 LED Light
05.2412.020 24V DC - 12V DC Converter
90.3057 Replacement Sealed 27W Lamp
90.6257 Replacement Lens
92.1156 Replacement 27W Bulb
Instructions
02.6000 Board - Incandescent Lamps View
02.6009 Board - LumenX® Lamps View
02.6029HD3 Control Box View
02.6052 Board - Ultra-Bright LEDs View
02.6100 Board - Shock-Mounted Lamps View
02.6116 Board - Standard LEDs View
02.6134 Board - Mega-Bright LEDs View
