MEGA LED Scene Lights

10.8000 Series

  • Steady-burning, instant-on LEDs light up the night.
  • Energy-efficient white LEDs with up to 30,000 lamp life for 12V - 24V vehicles.
  • Models 10.8036 and 10.8072 have 60° flood reflectors. Other models have 60° flood and 30° spot LED reflectors.
  • 100% sealed housing is moisture-, dirt- and dust-resistant.
  • IP67 rated.
  • Temperature range: -80° F to 168° F.
  • Black housing of cast aluminum alloy.
  • Ratcheted brackets permit vertical adjustment.
  • 2 year warranty.
  • Includes mounting kit and double-insulated cable.
Specifications
Model 10.8036.W00 with (12) White LEDs
All 60° Flood 2.5 Amps Max 2,160 Lumens
4-1/2" H x 3-1/2" D x 10-1/8" L

Model 10.8072.W00 with (24) White LEDs
All 60° Flood 4.0 Amps Max 4,200 Lumens
4-1/2" H x 3-1/2" D x 16" L

Model 10.8120.W00 with (40) White LEDs
(24) Spot / (16) Flood 8.0 Amps Max 7,200 Lumens
4-1/2" H x 3-1/2" D x 24-1/4" L

Model 10.8180.W00 with (60) White LEDs
(36) Spot / (24) Flood 11 Amps Max 10,800 Lumens
4-1/2" H x 3-1/2" D x 34-3/8" L

Model 10.8240.W00 with (80) White LEDs
(40) Spot / (40) Flood 15 Amps Max 12,600 Lumens
4-1/2" H x 3-1/2" D x 44-1/2" L

Model 10.8300.W00 with (100) White LEDs
(52) Spot / (48) Flood 19 Amps Max 14,400 Lumens
4-1/2" H x 3-1/2" D x 54-1/2" L

MEGA LED Scene Lights

Click on thumbnail image to open enlarged view.

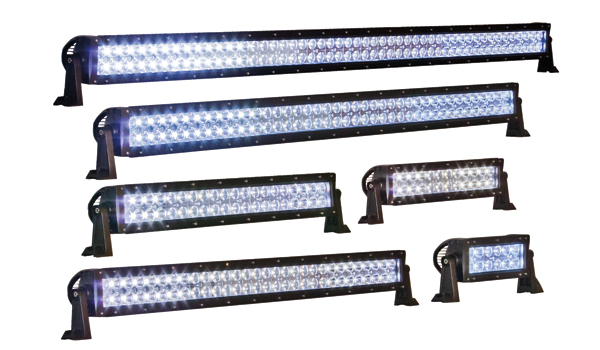

10.8000 Series MEGA LED Scene Lights

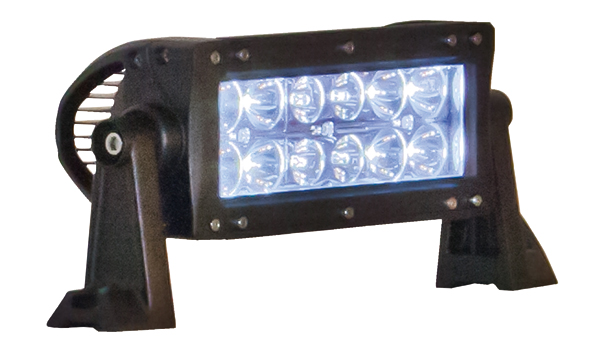

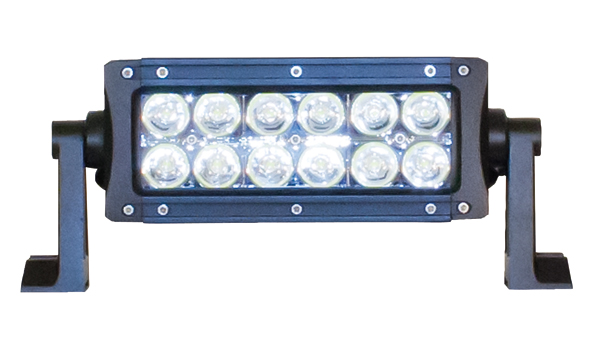

MEGA 36W LED Scene Light
Model 10.8036.W00 with 12 LEDs

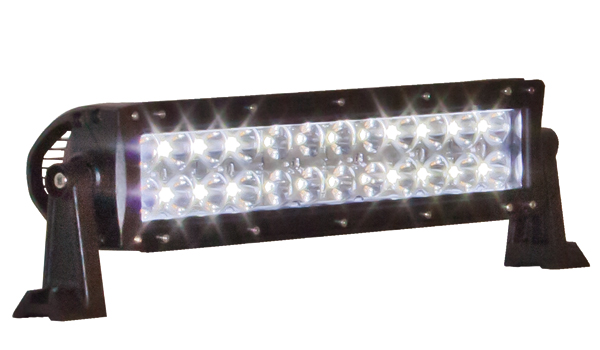

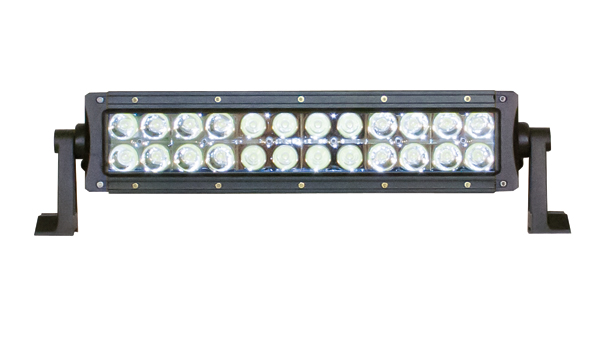

MEGA 72W LED Scene Light
Model 10.8072.W00 with 24 white LEDs

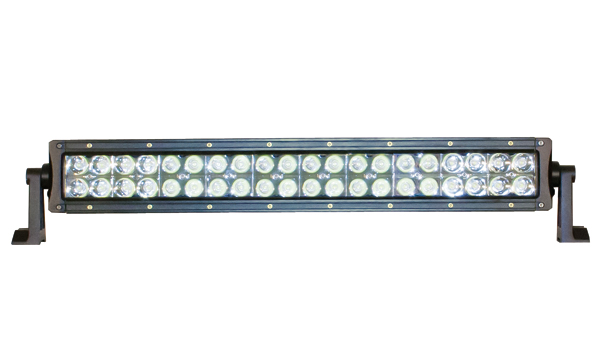

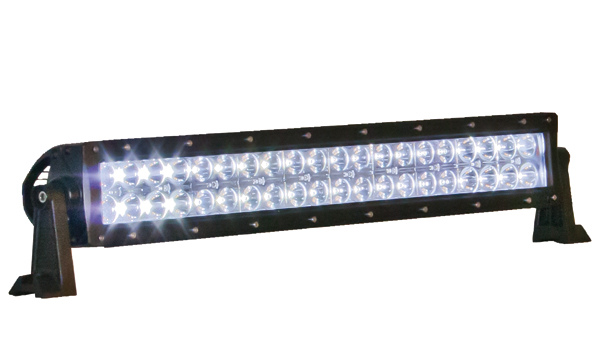

MEGA 120W LED Scene Light
Model 10.81200.W00 with 40 white LEDs

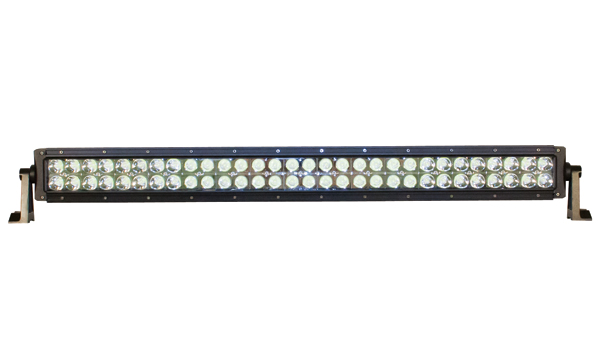

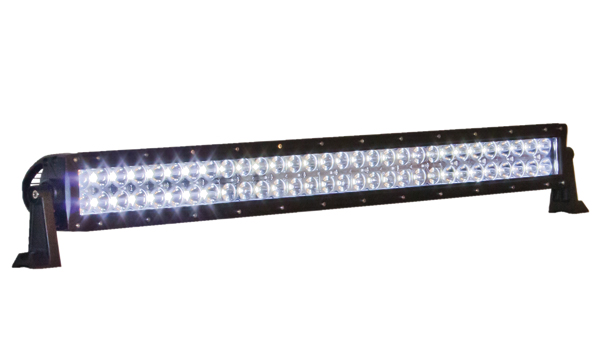

MEGA 180W LED Scene Light
Model 10.8180.W00 with 60 white LEDs

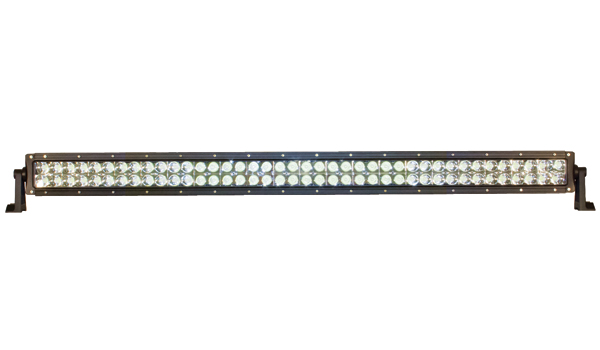

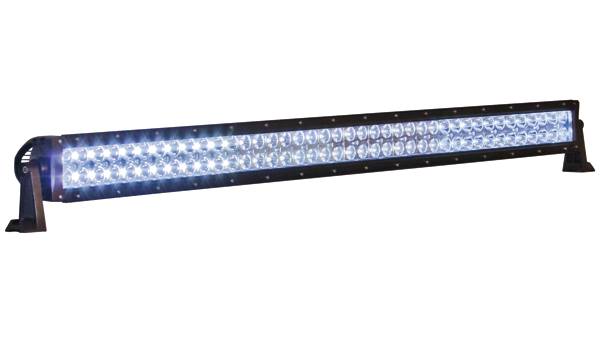

MEGA 240W LED Scene Light
Model 10.8240.W00 with 80 white LEDs

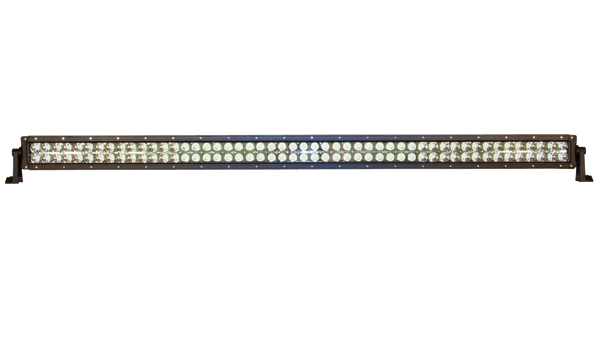

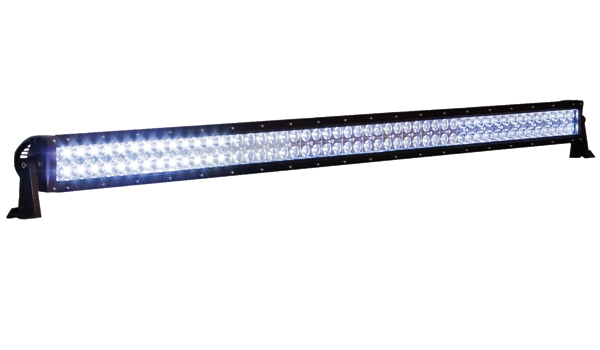

MEGA 300W LED Scene Light
Model 10.8300.W00 with 100 white LEDs

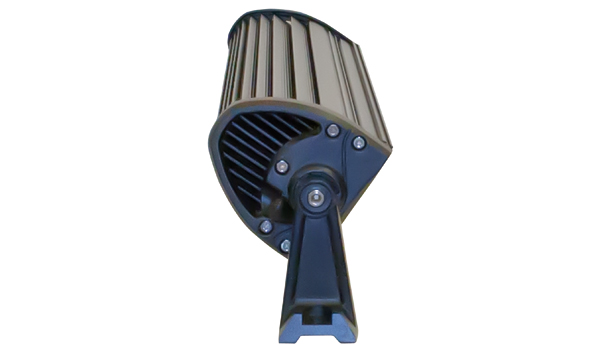

Adjustable mounting brackets
Vertically direct light

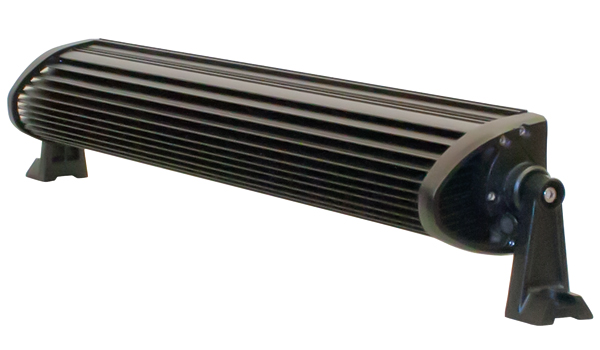

Integrated passive heat sink

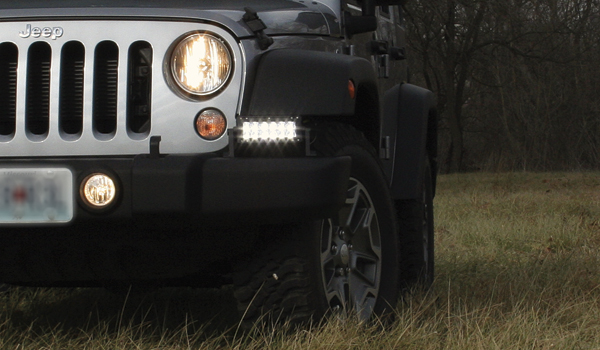

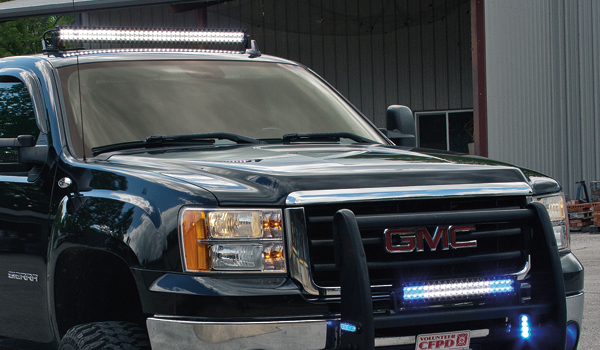

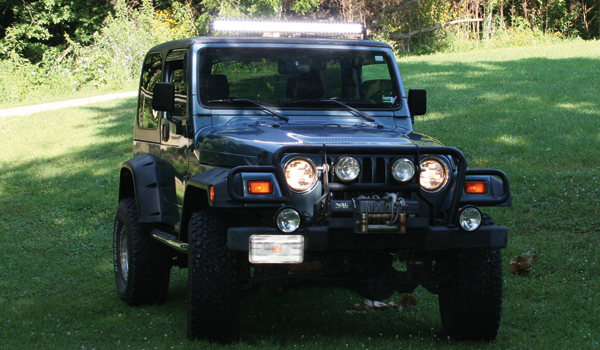

Broad-beamed, high-intensity light illuminates any scene.

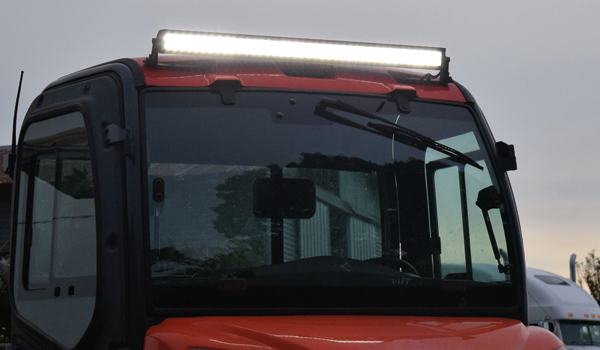

Broad-beamed, high-intensity light illuminates any scene.
100% sealed housing protects LEDs from moisture, dust and debris.
Instant-ON LEDs


Instructions
10.8036.W00 Instructions View PDF
10.8072.W00 Instructions View PDF
10.8120.W00 Instructions View PDF
10.8180.W00 Instructions View PDF
10.8240.W00 Instructions View PDF
10.8300.W00 Instructions View PDF
Suggested Retail Price
Suggested retail price
10.8036.W00 36W Scene Light $ 142.80
10.8072.W00 72W Scene Light $ 199.92
10.8120.W00 120W Scene Light $ 248.88
10.8180.W00 180W Scene Light $ 293.76
10.8240.W00 240W Scene Light $ 330.48
10.8300.W00 300W Scene Light $ 367.20
