Large Arrow Boards

Model 02.7000 / .7009 / .7016 / .7034 / .7052

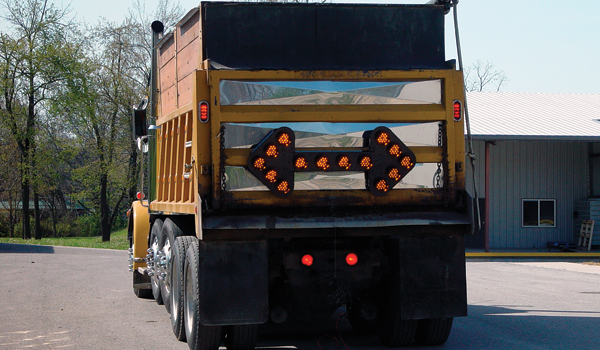

  • Motorists can't miss this large directional light. The oversized design for use on large vehicles makes a big impact and keeps work zones safe.
  • Each Large Arrow Board has (14) 4" diameter amber lamps that are available in five styles: Standard LED, LumenX® LED, Mega-Bright LED, Ultra-Bright LED, and Incandescent.

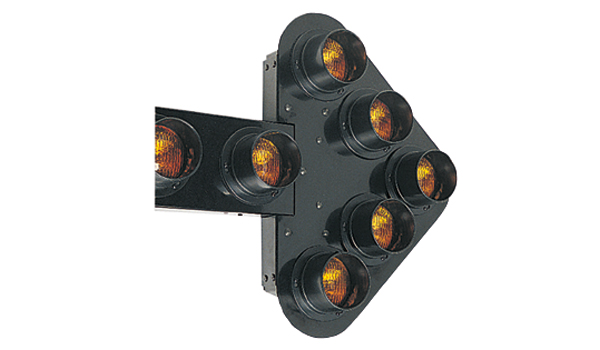

  • High-impact plastic Sun Visor mounting rings increase visibility up to 1/2 mile.
  • Standard plug-in connectors allow easy removal and reattachment of Arrow Board.
  • Warn approaching vehicles with five operational modes (60 FPM): right arrow, left arrow, double arrow, center bar and corner caution lamps.

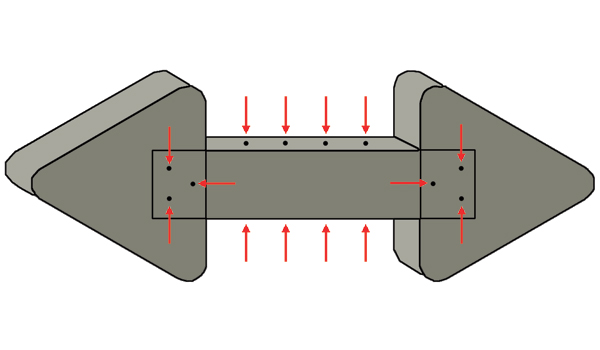

  • Fourteen heavy-duty threaded inserts accommodate a variety of mounting applications.
  • All Large Arrow Boards measure 24" H x 2-1/2" D x 60" L and are constructed of sturdy, heavy-gauge, epoxy-coated aluminum. (Depth does not include Sun Visor mounting rings.)

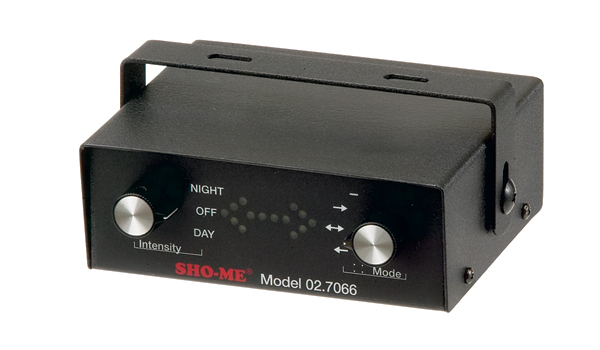

  • Model 02.7066 control box has a POWER switch, MODE selection dial, day & night intensity settings and flash pattern indicator lights, a 20' pre-wired harness, and a bail bracket for cab mounting. The control box measures 2-1/4" H x 5-1/8" D x 6" L.
  • 12V standard (Model 05.2412.020 24V converter is available for LED models 02.7009, 02.7016, 02.7034 and 02.7052. Sold separately.)
  • Mounting brackets are sold separately.
  • Made in the U.S.A.
Specifications
Model Amps Lamp Type
02.7000 20A Max Incandescent - 27W each
02.7009 5.6A Max LumenX® - 9 LEDs per lamp
02.7016 2.8A Max Standard - 16 LEDs per lamp
02.7034 4.2A Max Mega-Bright - 34 LEDs per lamp
02.7052 9.1A Max Ultra-Bright - 52 LEDs per lamp
Model and Description
Call for pricing

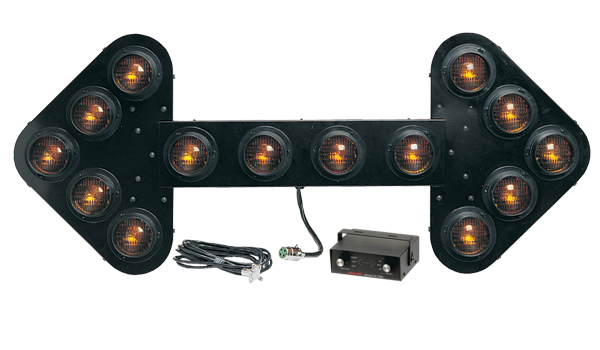

02.7000 Large Board - Incandescent
02.7009 Large Board - LumenX® LEDs

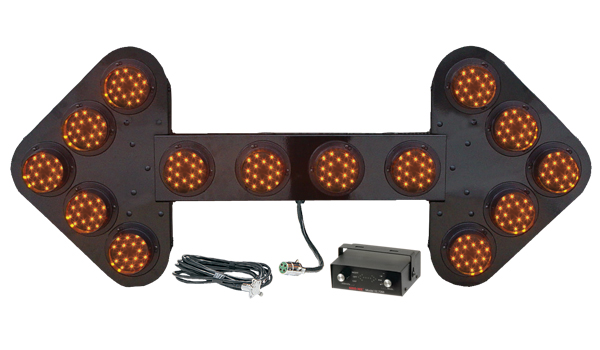

02.7016 Large Board - Standard LEDs
02.7034 Large Board - Mega-Bright LEDs

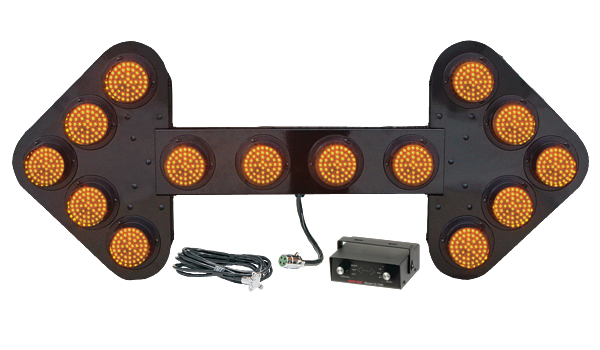

02.7052 Large Board - Ultra-Bright LEDs

Large Arrow Boards

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.

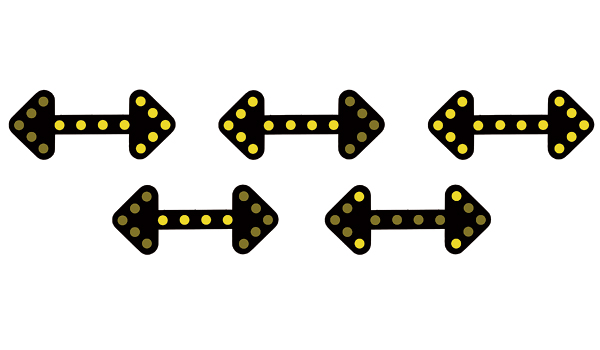

Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Double Arrow
 4. Center Bar
 5. Corner Caution Lamps
Parts and Accessories
Call for pricing
02.5949 LumenX® LED Bulb Assembly
02.6018 Tailgate Mounting Bracket
02.6225 Flush Mount Brackets (pair)
02.7066 Control Box
02.8516.A00 Standard PAR 36 LED Light
02.8534.A00 Mega-Bright PAR 36 LED Light
02.8552.A00 Ultra-Bright PAR 36 LED Light
05.2412.020 24V DC - 12V DC Converter
90.6175 Sun Visor Mounting Ring
93.7414Y Replacement 18W Bulb
Instructions
02.7000 Large Board - Incandescent View
02.7009 Large Board - LumenX® LEDs View
02.7016 Large Board - Standard LEDs View
02.7034 Large Board - Mega-Bright LEDs View
02.7052 Large Board - Ultra-Bright LEDs View
02.7066 Control Box View
