LED Scene Lighters
Models 10.8571 / 10.8572 / 10.8574
- Create a safe, well-lit environment for workers and motorists with LED Scene Lighters. Heavy-duty U-brackets elevate LED Scene Lights for greater visibility and improved general area lighting.

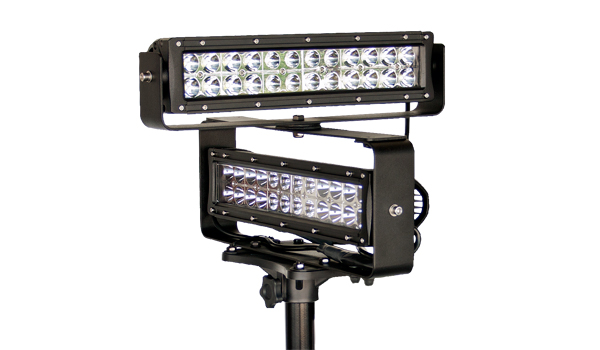

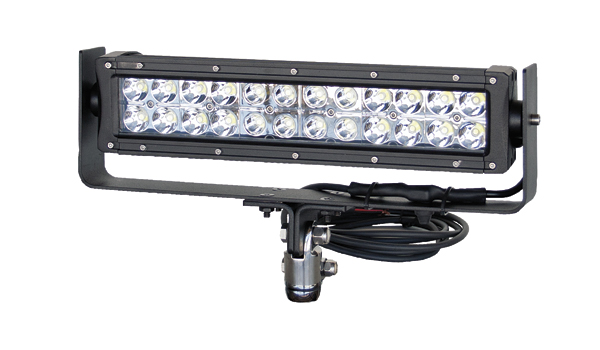

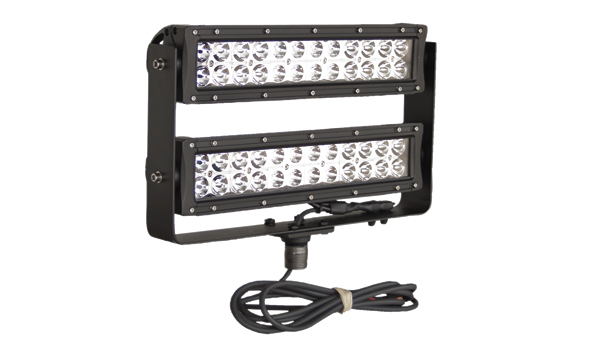

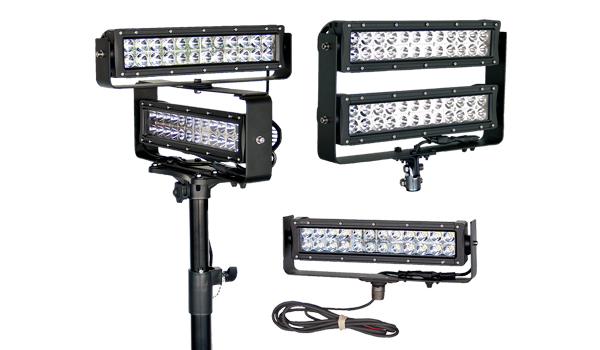

- Single LED Scene Lighters have one 72W light head in a pipe-mount or swivel-mount U-bracket. Double LED Scene Lighters have two 72W light heads stacked within a single pipe-mount or swivel-mount U-bracket. Pivoting Double LED Scene Lighters have two 72W light heads in individual U-brackets connected with a pivot mechanism. Each light head can be independently rotated to where light is needed most.
- All models are available with either a swivel-mount fitting (base sold separately) or with a standard 3/4" pipe-mount fitting.

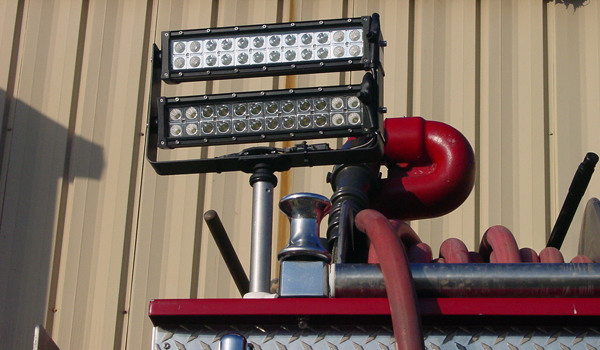

- Swivel-mount models are compatible with Unity® mounting brackets (sold separately). Pipe-mount models attach to existing telescopic vehicle mounts or to a portable tripod.

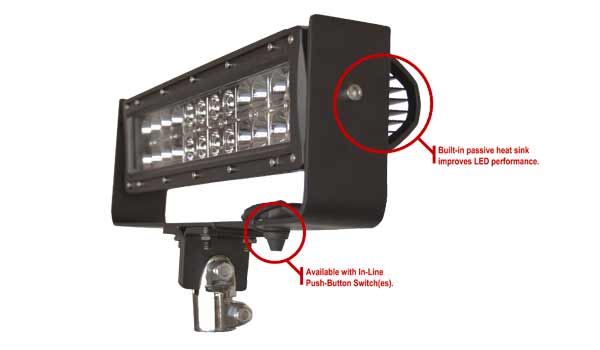

- Order with in-line, water-resistant, push-button switch(es) or hardwire to a remote 12V- 24V switch (sold separately).
- Steady-burning, white (6000K) LEDs in each light are energy efficient, maintenance free, and provide reliably bright light for up to 30,000 hours.
- Each light head has 24 white LEDs. The four LEDs on the ends of each light head have 60° flood reflectors creating a widespread beam of light for even coverage. The center 16 LEDs in each light head have spot reflectors that produce a concentrated, long-reaching beam.
- Heavy-duty light housings are made of a cast aluminum alloy and have clear lens covers that protect the LEDs from dust and debris.
- Scene Lighters measure 14-1/2" long, 3-1/2" deep and 8 - 11" high depending upon the model.
- Designed for weather and vibration resistance.
- Includes hardware and an 8' insulated cable.
- IP67 water and dust rated.
- 12 - 24 Volt / 1 year warranty.
Specifications
Model |
Amps |
LEDs |
Lumens |
Height |
10.8571 |
4.0 Max |
(24) |
4200 |
8" H |
10.8572 |
8.0 Max |
(48) |
8400 |
11" H |
10.8574 |
8.0 Max |
(48) |
8400 |
11-3/4" H |
Click on thumbnail image to open enlarged view.
Model and Description
Call for pricing |
10.8571SW.00P |
(1) Light / Switch / Pipe |
10.8571HW.00P |
(1) Light / No Switch / Pipe |
10.8571SW.0SV |
(1) Light / Switch / Swivel |
10.8571HW.0SV |
(1) Lt / No Switch / Swivel |
10.8572SW.00P |
(2) Lights / Switch / Pipe |
10.8572HW.00P |
(2) Lts / No Switch / Pipe |
10.8572SW.0SV |
(2) Lts / Switch / Swivel |
10.8572HW.0SV |
(2) Lts / No Switch / Svl |
10.8574SW.00P |
(2) Pivot Lts / Sw / Pipe |
10.8574HW.00P |
(2) Pivt Lts / No Sw / Pipe |
10.8574SW.0SV |
(2) Pivot Lts / Sw / Svl |
10.8574HW.0SV |
(2) Pivt Lts / No Sw / Svl |
Parts and Accessories
Call for pricing |
|
10.8400 |
Tripod Light Stand |
10.8571.BRKT |
Single Bracket |
10.8572.BRKT |
Double Bracket |
10.8575 |
AC-DC LED Power Supply |
