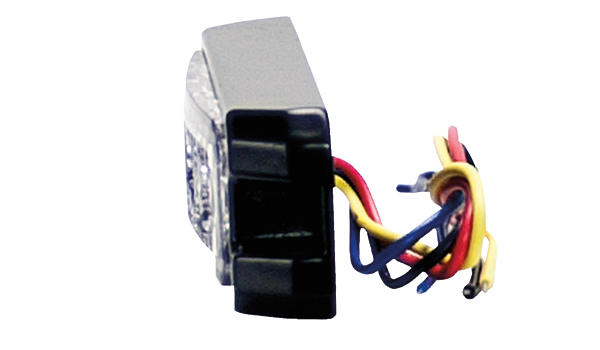

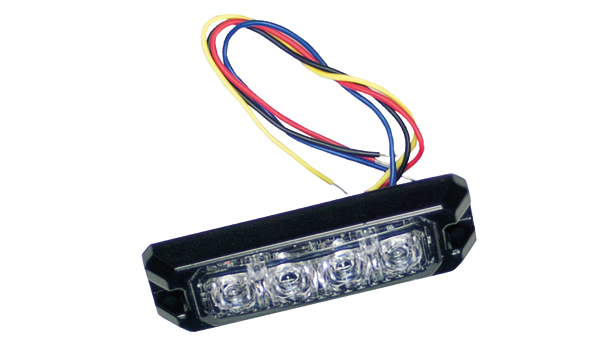

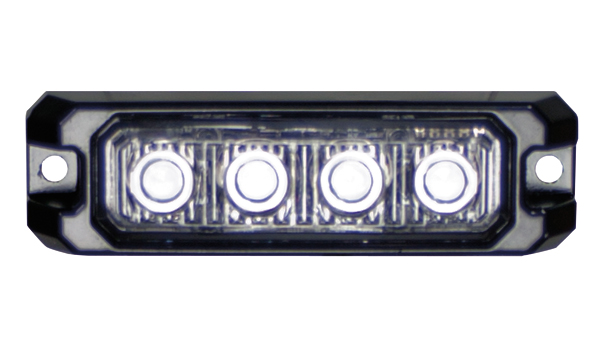

MEGA 43 LED Lights
Model 10.4322
- Measuring only four inches long, the MEGA 43 LED light projects high-intensity light from (4) 3W LEDs.
- The streamlined design of this surface-mount light plus a wide selection of optional brackets create endless options for mounting locations.

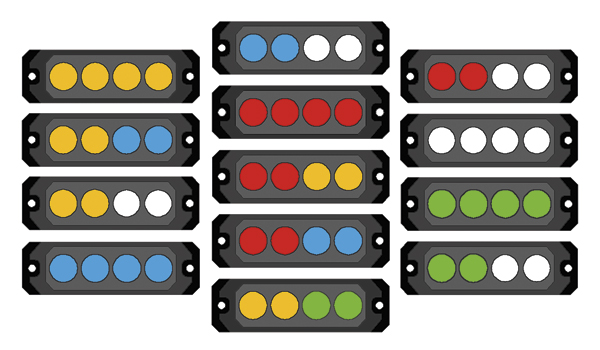

- Customize your warning system with split arrays in your choice of amber, blue, green, red and white.
- An internal flasher produces 21 selectable flash patterns specifically designed to attract attention. Built-in pattern memory recalls the last pattern used.
- Increase visual impact by synchronizing the flash patterns of multiple hardwired lightheads.
- The cast-aluminum housing and fully-encapsulated electronics withstand extreme weather and rough conditions. A clear diffusing lens creates a widespread light pattern and protects LEDs from dust and debris.
- Includes a mounting gasket, hardware and 6" pigtail.
- 12 - 24 Volt / 1 year warranty.
Specifications
Model |
Amps |
Dimensions |
10.4322 |
0.4A Max |
1-1/8" H x 3/4" D x 4" L |
Model and Description
Call for pricing |
10.4322 |
MEGA 43 LED Light |

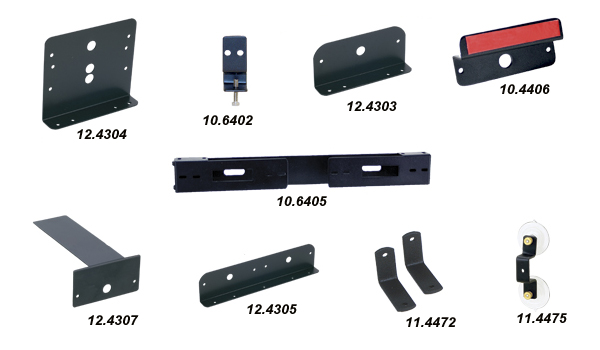

Parts and Accessories
Call for pricing |
|
10.4406 |
Flat Glass Bracket |
10.6402 |
Hood / Trunk Bracket |
10.6405 |
License Plate Bracket |
11.1002GSM |
LED Double Switch |
11.4472 |
L Brackets - pair |
11.4475 |
Glass Bracket w/ Suction Cups |
12.4303 |
Single Mount Bracket |
12.4304 |
Double Stack Bracket |
12.4305 |
Side By Side Bracket |
12.4307 |
Headliner Bracket |
Instructions
10.4322 |
MEGA 43 LED Light |
View PDF |
Click on thumbnail image to open enlarged view.
Flash Patterns
1. |
Quad Burst - Split |
2. |
Quad Burst - All |
3. |
Quad Burst - Alternating |
4. |
Quad - Split |
5. |
Quad - All |
6. |
Quad - Alternating |
7. |
Single - Split |
8. |
Single - All |
9. |
Single - Alternating |
10. |
Super Flash - Split |
11. |
Super Flash - All |
12. |
Super Flash - Alternating |
13. |
Quad/Single - Quad Burst - Split |
14. |
Quad/Single - Quad Burst - All |
15. |
Accelerator - Split |
16. |
Accelerator - All |
17. |
Express Flash |
18. |
California Steady with Pulse |
19. |
California Steady |
20. |
Steady All |
21. |
Cycle Flash - Split & All |
