Ignition Override

Model 05.0915

  • Developed for accidents, crime scenes, canines and inclement weather.
  • Emergency lights, radio, accessories, air conditioning and heating continue to operate even after the vehicle ignition is turned off, the key is removed and the doors are locked.
  • For added safety the steering wheel and gear shift also lock automatically.
  • Ignition override activates with a push button switch; disengages with a tap of the brake pedal.
  • Accommodates five circuits.
  • Optional wiring kit includes a push button switch, tie straps, splices, 50A automatic re-set circuit breaker, screws, ring terminals and all necessary wiring.
  • CAUTION: Must be installed by a qualified automotive technician who is familiar with the ignition and electrical systems of the vehicle in which this product is to be installed.
Model and Description
Call for pricing

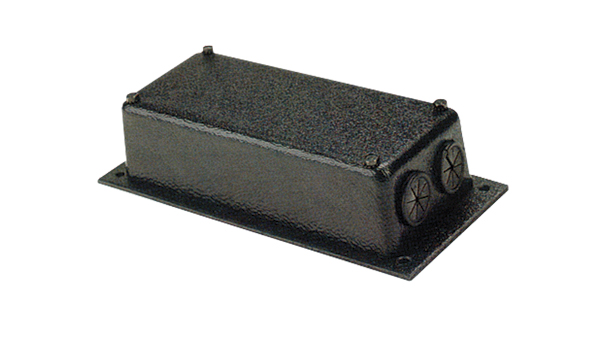

05.0915 Ignition Override - (Five Circuit)

Ignition Override

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.







Specifications
Voltage: 12 volt
Dimensions: 1-1/2" H x 2-3/4" W x 6-1/2" L
Parts and Accessories
Call for pricing

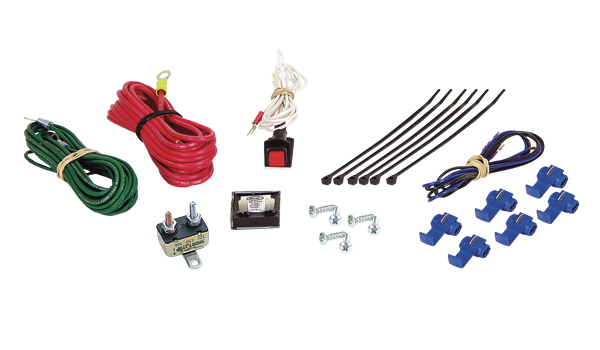

05.0917 Installation / Wiring Kit
Instructions
05.0915 Ignition Override View PDF
