Alternating Headlight Flashers

Model 03.W3041 / 03.W125 / 03.W126

  • For use with halogen and incandescent light heads.
  • 90 FPM per side. Custom flash rates available.
  • Override feature works with the vehicle's high/low beam switch to prevent high beams from flashing.
  • Model 03.W3041 is compatible with vehicles with ground-switching (GS) headlights.
  • Model 03.W125 is compatible with some daytime running lights (DRL) and requires a separate power switch.
  • Model 03.W126 has an additional low-current control wire which permits operation from an existing low-current switch.
  • 100% solid-state.
  • Waterproof.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 4 amps per side
Dimensions: 3-3/4" H x 7/8" D x 3-1/4" W
Model and Description
Call for pricing

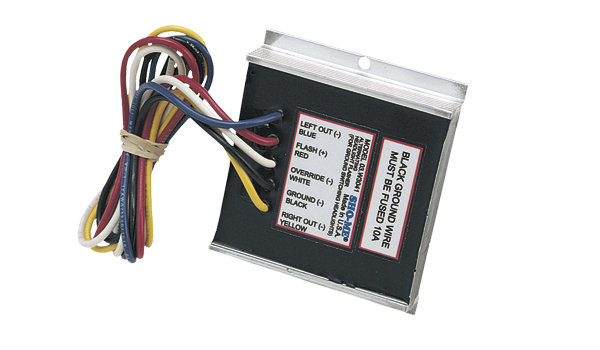

03.W3041 Alternating / GS

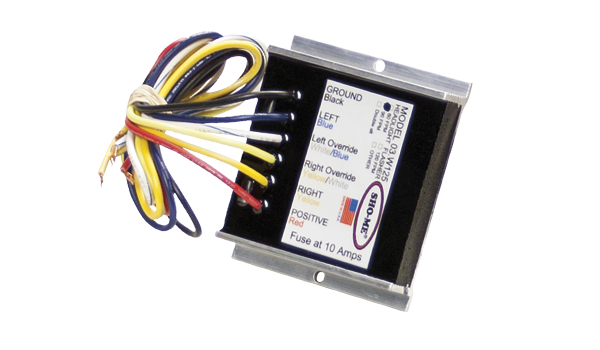

03.W125 Altern. / DRL / Isolated Switch

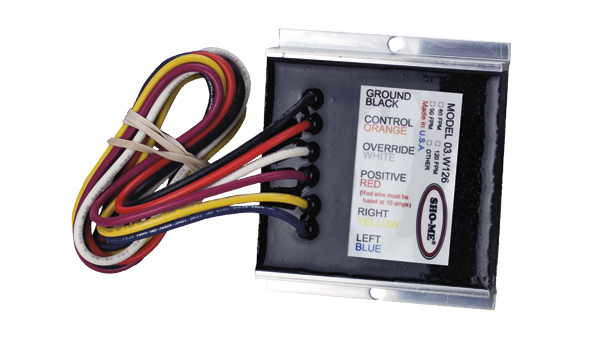

03.W126 Altern. / Uses Existing Switch

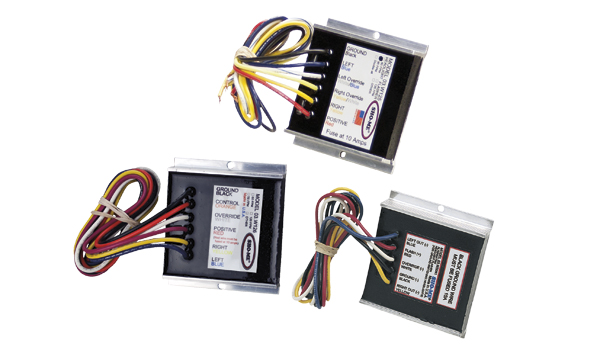

Alternating Headlight Flashers

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.





Instructions
03.W3041 Alternating / GS View PDF
03.W125 Altern. / DRL / Isolated Switch View PDF
03.W126 Altern. / Uses Existing Switch View PDF
