Short Arrow Boards

Model 02.6300 / .6309 / .6316 / .6334 / .6352

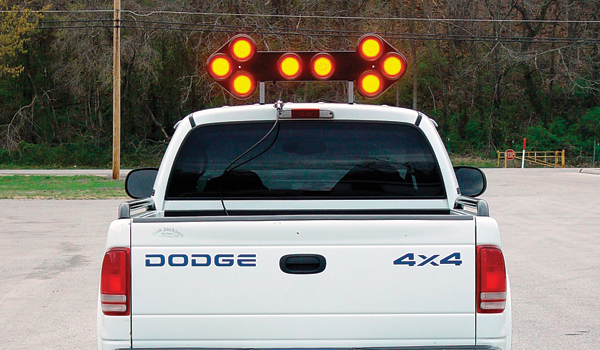

  • Space-saving length makes these arrow boards ideal for escort vehicles and emergency repair crews.

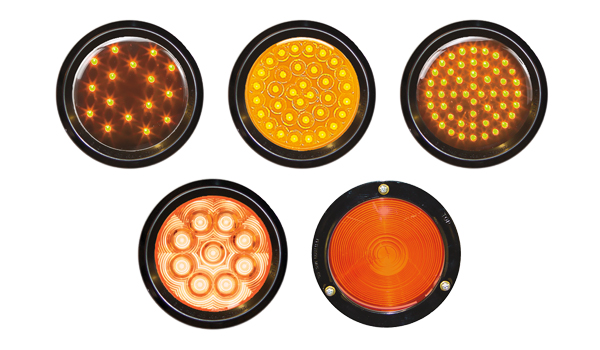

  • Each Short Arrow Board has eight 4" diameter amber lamps that are available in five styles: Standard LED, LumenX® LED, Mega-Bright LED, Ultra-Bright LED, and Incandescent.
  • Keep workers and motorists safe with four operational modes (60 FPM): right arrow, left arrow, double arrow and center bar.
  • All Short Arrow Boards measure 13" H x 3" D x 40-1/2" L and are constructed of sturdy, heavy-gauge, epoxy-coated aluminum.

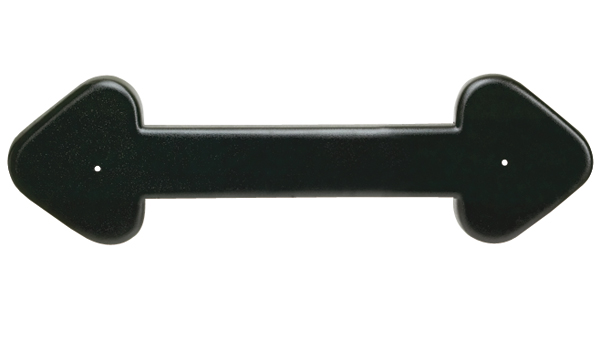

  • A durable ABS plastic dust cover is included to protect wiring from weather and dust.
  • Standard plug-in connectors allow easy removal and reattachment of Arrow Board.

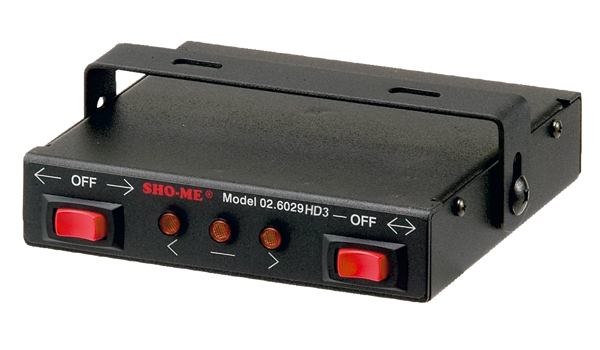

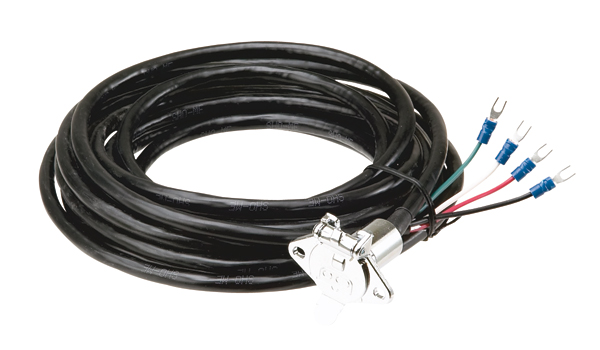

  • Model 02.6029HD3 control box has two "center off" rocker switches, flash pattern indicator lights, a 20-foot pre-wired harness, and a bail bracket for cab mounting. The streamlined housing measures a compact 1-1/4" H x 6-1/4" D x 6" L.
  • 12V standard (Model 05.2412.020 24V converter is available for LED models 02.6309, 02.6316, 02.6334 and 02.6352. Sold separately.)
  • Short Arrow Boards with LED lamps are also available in Portable modelswith internal flashers and plug-in wiring.
  • Mounting brackets are sold separately.
  • Made in the U.S.A.
Specifications
Model Amps Lamp Type
02.6300 17 Max Incandescent - 27W per lamp
02.6309 3.2 Max LumenX® - 9 LEDs per lamp
02.6316 1.6 Max Standard - 16 LEDs per lamp
02.6334 2.4 Max Mega-Bright - 34 LEDs per lamp
02.6352 5.2 Max Ultra-Bright - 52 LEDs per lamp
Model and Description
Call for pricing

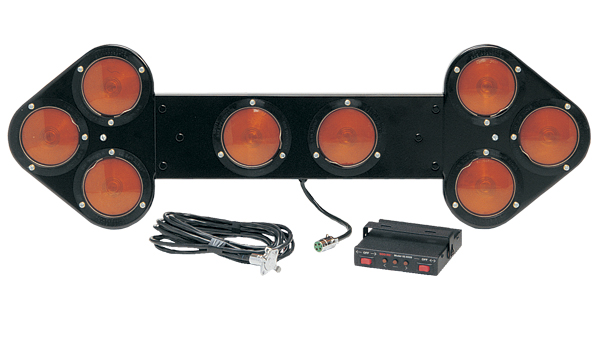

02.6300 Short Board - Incandescent

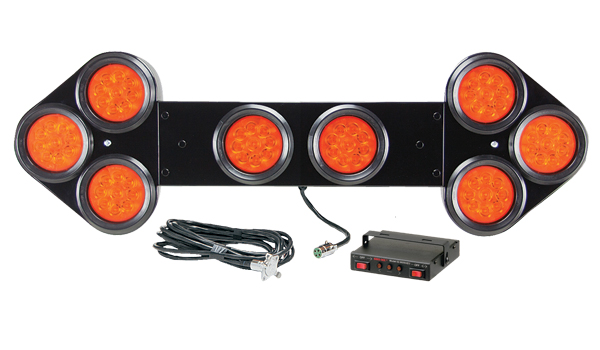

02.6309 Short Board - LumenX® LEDs

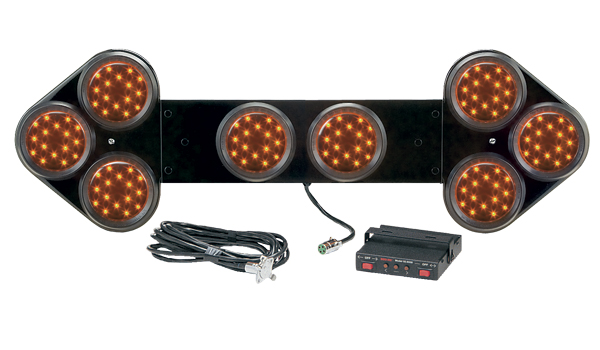

02.6316 Short Board - Standard LEDs

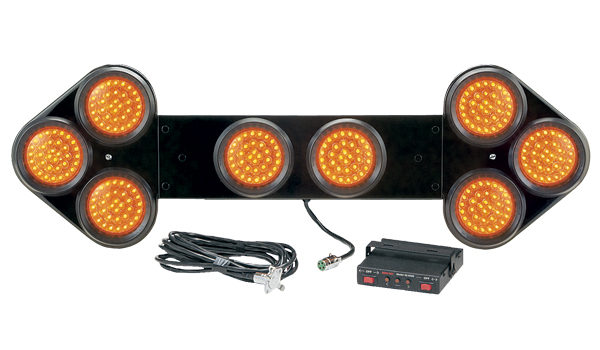

02.6334 Short Board - Mega-Bright LEDs

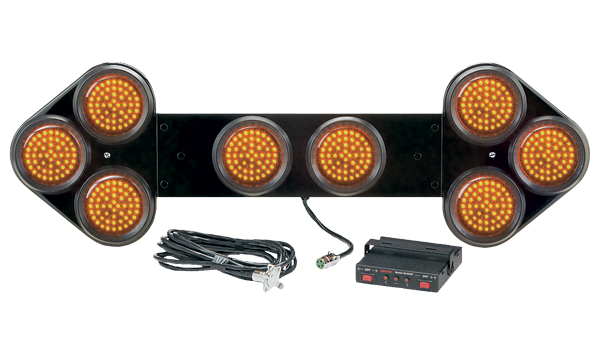

02.6352 Short Board - Ultra-Bright LEDs

Short Arrow Board

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.

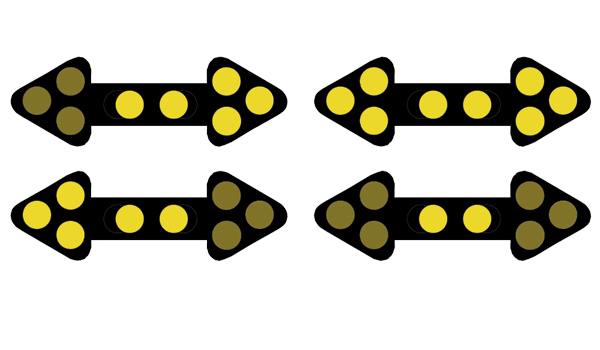

Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Double Arrow
 4. Center Bar
Parts and Accessories
Call for pricing
02.5949 LumenX® LED Bulb Assembly
02.6016 Magnetic Mounting Bracket (pr)
02.6017 Permanent Mount. Bracket (pair)
02.6018 Tailgate Mounting Bracket (pair)
02.6029HD3 Control Box
02.6032 Regular Lamp Assembly
02.6042 Hinged Assembly (for 02.6017)
02.6225 Flush Mount Brackets (pair)
02.8516 Standard PAR 36 LED Light
02.8534 Mega-Bright PAR 36 LED Light
02.8552 Ultra-Bright PAR 36 LED Light
05.2412.020 24V DC - 12V DC Converter
90.6257 Replacement Lens
92.1156 Replacement 27W Bulb
Instructions
02.6029HD3 Control Box View
02.6300 Short Board - Incandescent View
02.6309 Short Board - LumenX® Lamps View
02.6316 Short Board - Standard LEDs View
02.6334 Short Board - Mega-Bright LEDs View
02.6352 Short Board - Ultra-Bright LEDs View
