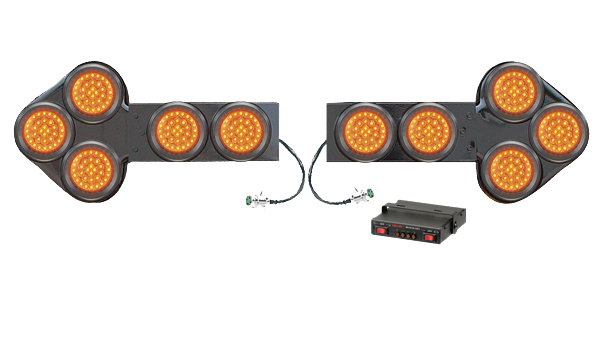

Two-Piece Arrow Boards

Models 02.6200 / .6209 / .6216 / .6234 / .6252

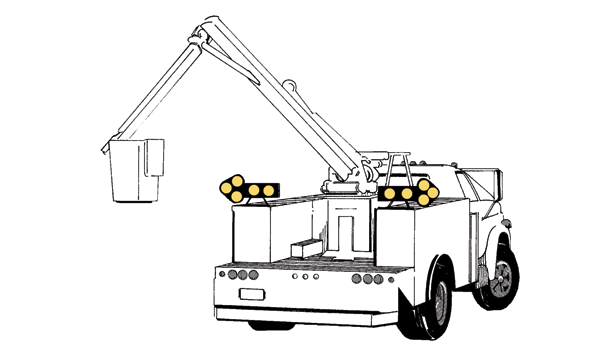

  • Split housing mounts on bucket trucks and other vehicles where a traditional arrow board would be difficult to install. Perfect wherever left and right mounted lights are required.

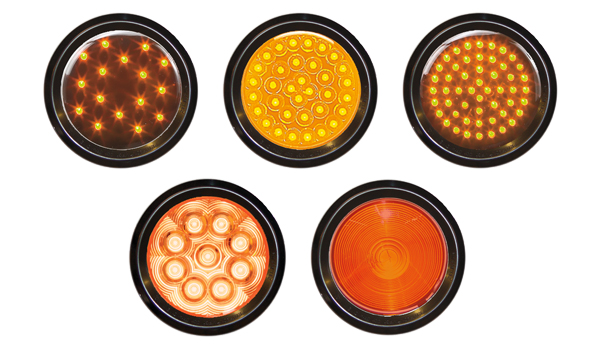

  • Each panel has five 4" diameter amber lamps which are available in five styles: Standard LED, LumenX® LED, Mega-Bright LED, Ultra-Bright LED, and Shock-Mounted Incandescent.
  • Warn oncoming motorists and keep workers safe with four operational modes (60 FPM): right arrow, left arrow, double arrow and corner caution lamps.
  • Each Arrow Board panel measures 13" H x 2-1/2" D x 24" L and is constructed of sturdy, heavy-gauge, epoxy-coated aluminum.

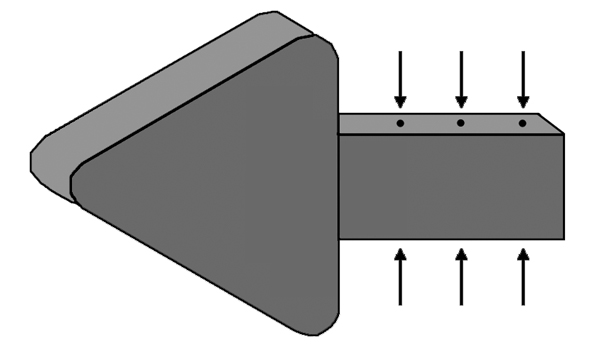

  • Six heavy-duty threaded inserts in each panel accommodate a variety of mounting applications.
  • Standard plug-in connectors allow easy removal and reattachment of Arrow Boards.

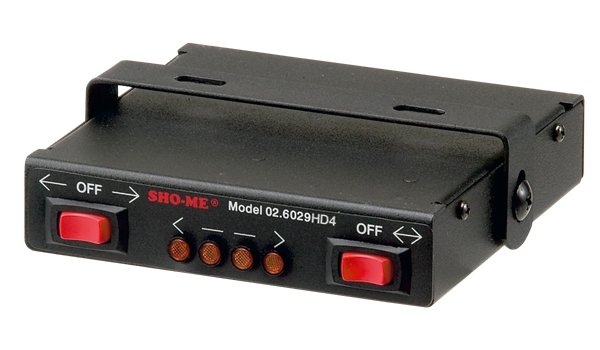

  • Model 02.6029HD4 control box has two "center off" rocker switches, flash pattern indicator lights, two 15-foot pre-wired heavy-duty harnesses, and a bail bracket for cab mounting. The streamlined housing measures a compact 1-1/4" H x 6-1/4" D x 6" L.
  • 12V standard (Model 05.2412.020 24V converter is available for LED Models 02.6209, 02.6216, 02.6234 and 02.6252. Sold separately.)
  • Two-Piece Arrow Boards with LED lamps are also available in Portable versionswith internal flashers and plug-in wiring.
  • Mounting brackets are sold separately.
  • Made in the U.S.A.
Specifications
Model Amps Lamp Type

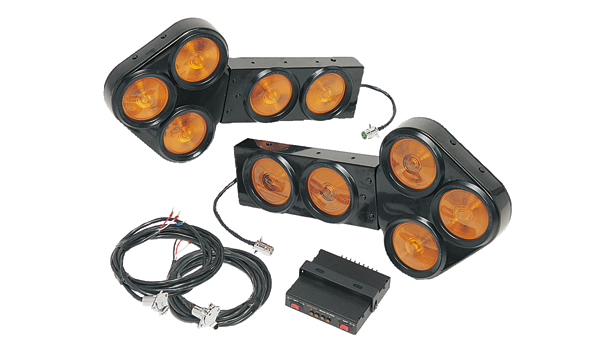

02.6200 21 Max Shock-Mounted Incandescent

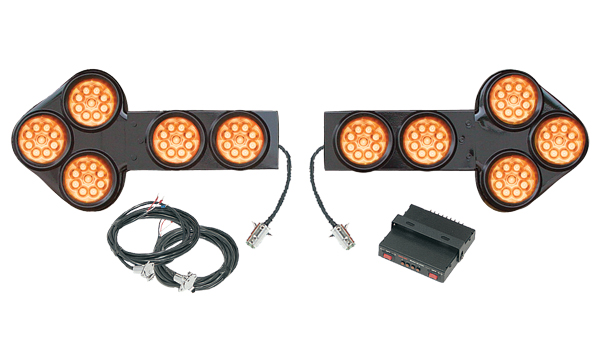

02.6209 4.0 Max LumenX® - 9 LEDs per lamp

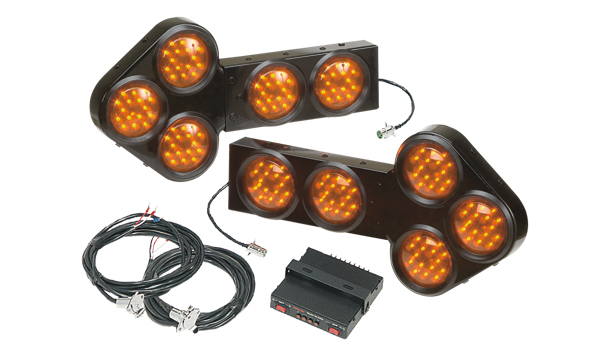

02.6216 2.0 Max Standard - 16 LEDs per lamp
02.6234 3.0 Max Mega-Bright - 34 LEDs per lamp

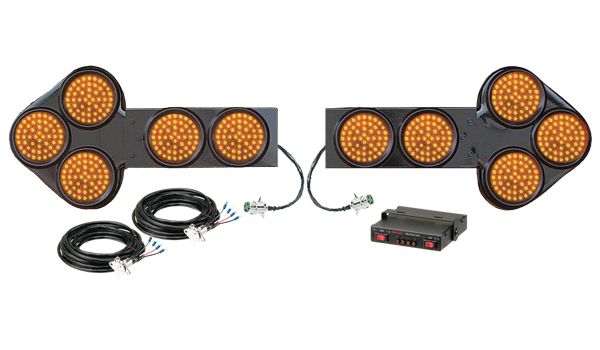

02.6252 6.5 Max Ultra-Bright - 52 LEDs per lamp
Model and Description
Call for pricing
02.6200 Two-Piece - Incandescent
02.6209 Two-Piece - LumenX® LEDs
02.6216 Two-Piece - Standard LEDs
02.6234 Two-Piece - Mega-Bright LEDs
02.6252 Two-Piece - Ultra-Bright LEDs

Two-Piece Arrow Board

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.

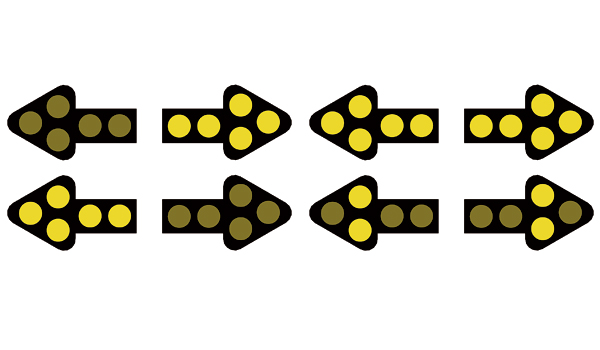

Flash Patterns
 1. Right Arrow
 2. Left Arrow
 3. Double Arrow
 4. Corner Lamps
Parts and Accessories
Call for pricing
02.5949 LumenX® LED Bulb Assembly
02.6018 Tailgate Mounting Bracket (pair)
02.6029HD4 Control Box
02.6152 Shock-Mounted Lamp Assemb.
02.6210 Permanent Mount. Bracket (pair)
02.6220 Magnetic Mounting Bracket (pr)
02.6230 Flush Mounting Bracket (pair)
02.8516 Standard PAR 36 LED Light
02.8534 Mega-Bright PAR 36 LED Light
02.8552 Ultra-Bright PAR 36 LED Light
05.2412.020 24V DC - 12V DC Converter
90.3057 Sealed 27W Lamp
Instructions
02.6029HD4 Control Box View
02.6200 Two-Piece - Incandescent Lamps View
02.6209 Two-Piece - LumenX®Lamps View
02.6216 Two-Piece - Standard LEDs View
02.6234 Two-Piece - Mega-Bright LEDs View
02.6252 Two-Piece - Ultra-Bright LEDs View
