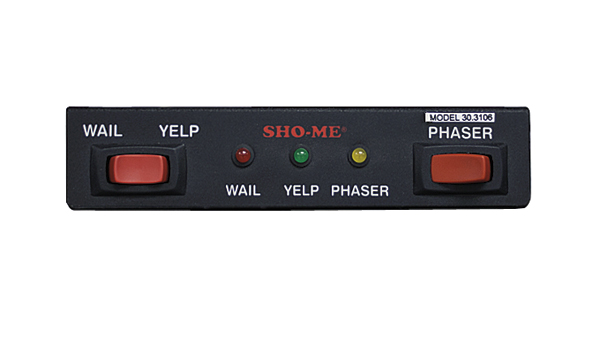

Three-Function
Dash-Mount Sirens

Models 30.3106 / 30.3109

  • Compact and easy-to-operate, this amplifier has three clearly-marked siren sounds.
  • Discretely mounts under the dash - even in vehicles with very limited space.
  • The streamlined housing holds a center-off rocker switch to control the Wail and Yelp sounds and a momentary rocker switch to operate the Phaser or Air Horn sounds.
  • Model 30.3106 has Wail and Yelp tones with the Phaser sound. Model 30.3109 has Wail and Yelp tones with the Air Horn sound.
  • Daylight-viewable LED lights indicate at a glance which siren sound has been selected.
  • Powers one 100W RMS speaker with an 11 ohm impedance.  (Speaker available separately. View)
  • Engineered to withstand reverse polarity and high-voltage spikes for reliable operation. Solid-state electrical components provide years of dependable service.
  • Includes an adjustable bail bracket and all wiring.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Watts: 100 watts
Amperage: 10A Average / 15A Max
Dimensions: 1-3/8" H x 6" D x 6" L
Model and Description
Call for pricing
30.3106 Siren w/ Wail, Yelp & Phaser
30.3109 Siren w/ Wail, Yelp & Air Horn

Three-Function Dash-Mount Sirens

Click on thumbnail image to open enlarged view.

Link to larger image
Link to larger image
Link to larger image






Click on a button to hear a siren sound.
Instructions
30.3106 Siren w/ Wail, Yelp & Phaser View PDF
30.3109 Siren w/ Wail, Yelp & Air Horn View PDF
