Full Feature PLUS
Dash-Mount Siren
Model 30.2200
- Be ready for any emergency situation with this multi-feature siren with 12 operational modes including the unique Intersection Mode.
- Select Tap, Radio Rebroadcast, Standby, Wail, Yelp, Hi-Lo, Warble, and Whoop functions with the handy rotary switch.
- Three pushbutton momentary switches control the Air Horn, Phaser and Intersection features.
- To engage the Intersection Mode, press the momentary INTER button. The siren will automatically cycle through the Yelp, Phaser and Air Horn sounds. Press the INTER button again and the original siren sound will resume.
- Limit one-handed fumbling for controls while driving by adapting the Tap and Air Horn modes for vehicle horn ring.
- When in Tap mode, tap the HORN button, the vehicle horn (if wired for horn ring) or the optional foot switch (if wired) to cycle through the Wail, Whoop, Warble, Yelp and Phaser tones. Each time the button, horn or foot switch is tapped, a new sound will be emitted.
- When the optional Park feature is engaged, the faceplate lights flash and the siren modes (with the exception of PA and Air Horn) are deactivated.

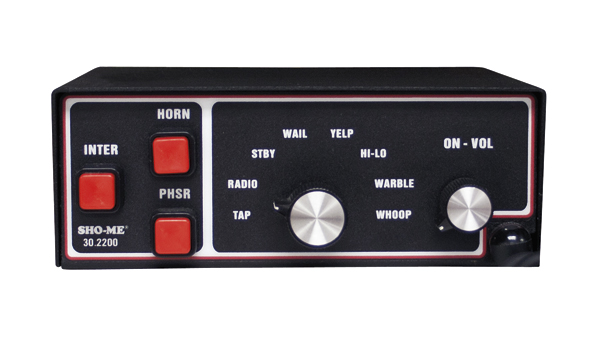

- The powder-coated steel housing has an illuminated faceplate; a rotary switch for mode selection; three momentary switches for Air Horn, Phaser and Intersection features; and an ON-VOL dial that controls PA volume.
- The hard-wired, noise-canceling PA microphone has a momentary push-to-talk button on one side. A tangle-free 4' coiled cord conserves space in the vehicle interior and keeps the area neat.
- The Full Feature PLUS Siren powers one 100W RMS speaker with an 11 ohm impedance. (Speaker available separately. View)
- A plug-in connector simplifies installation.
- The amplifier is engineered to withstand reverse polarity and high-voltage spikes for reliable operation. Solid-state electrical components provide years of dependable service.
- Includes a bail bracket, metal microphone mounting clip and all necessary wiring.
- Made in the U.S.A.
Model and Description
Call for pricing |
30.2200 |
Full Feature PLUS Siren |
Click on thumbnail image to open enlarged view.
Click on a button to hear a siren sound.
Specifications
Voltage: |
12 volt |
Watts: |
100 watts |
Amperage: |
10A Average / 15A Max |
Dimensions: |
2-1/4" H x 6-1/2" D x 6" L |
Parts and Accessories
30.0107 |
Foot Switch |
30.2110 |
PA Microphone |
View our selection of speakers |
more |
Instructions
30.2200 Instructions |
View PDF |
