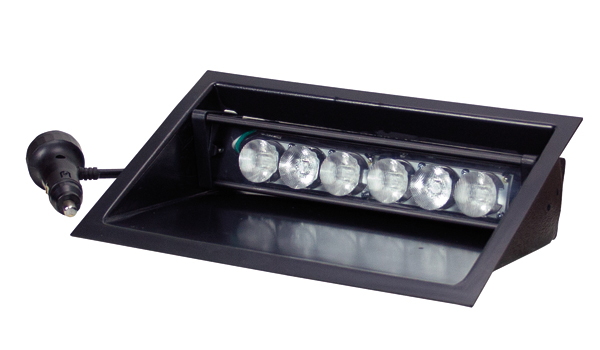

Luminator LED Dash Light

Models 12.2809 / 12.2810

  • Six 3W Luminator LEDs incorporate Total Internal Reflection optics to provide exceptionally bright light.
  • Diffusing lenses on four of the six Luminator LEDs disperse light horizontally. The remaining two provide concentrated forward light.
  • Available with or without an internal flasher.
  • Model 12.2809 has a 10 pattern internal flasher and a lighter adapter plug with POWER & MODE switches.
  • Model 12.2810 is direct wire and must be connected to a remote flasher. (Sold separately.)

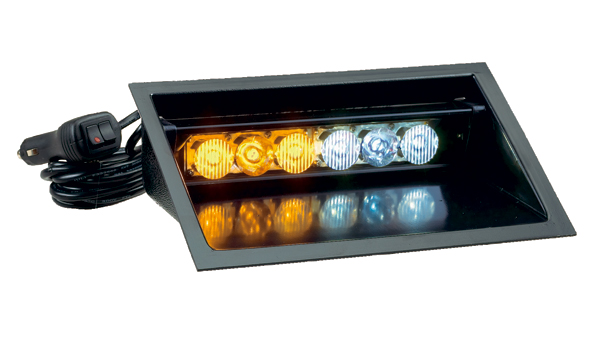

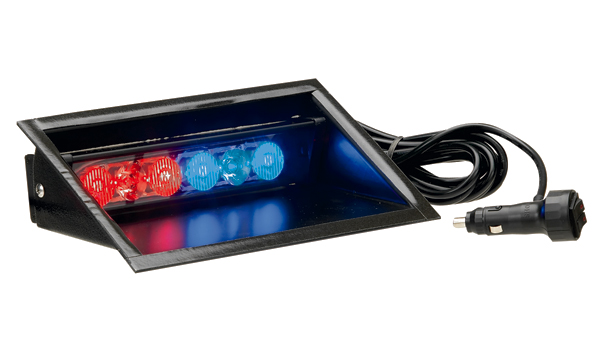

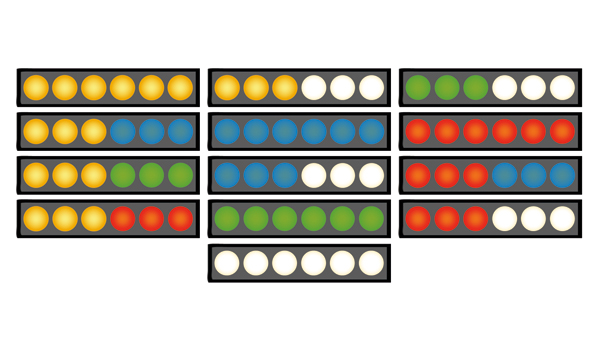

  • Available in solid or split arrays of amber, blue, green, red and white.
  • Black anodized aluminum housing. Clear lens cover.
  • Includes removable flashback shield.
  • Rear power cable location.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 1.5 amps max per light
Dimensions: 2-7/8" H x 9-3/4" W x 6-3/8" D
(including shield)
Wiring: 12.2809 - 15 foot cable / adapter plug
  12.2810 - 3 foot power wire
Suggested Retail Price
Suggested retail price
12.2809 Dash Light $  414.04
12.2810 Dash Light - no flasher $  414.04

Luminator LED Dash Light

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.





Flash Patterns for 12.2809
1. Double Alternating
2. Quad Alternating
3. Double ON Alternating
4. Quad ON Alternating
5. Wig Wag 1
6. Wig Wag 2
7. Wig Wag 3
8. Phased
9. Ultra Flash
10. Random
Parts and Accessories
Suggested Retail Price

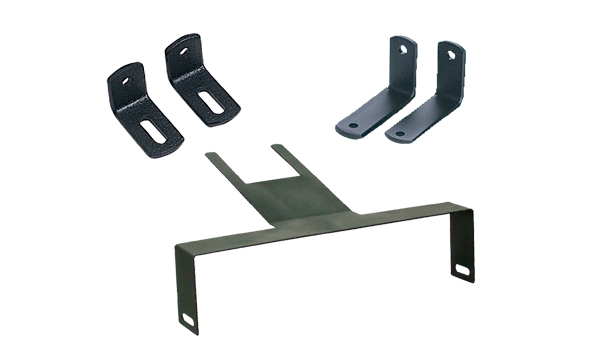

11.4472 L Brackets (pair) $   8.94
11.4474 Windshield L Brackets (pair) $ 11.80
11.5015 Windshield Adhesive $   6.46
12.6155 Headliner Bracket $ 16.22
Instructions
12.2809 Luminator Dash Light View PDF
