Luminator Trio / Siren ATV Kit

Model 12.10ATV

  • Waterproof siren and LED lights create a two-pronged ATV warning system that is ideal for golf courses, public parks, trails and shopping malls.
  • Attract attention with four Trio Lights with internal flashers and 10 user-selectable flash patterns.
  • Use the 125db Hi-Lo Siren to effectively alert pedestrians and other vehicles of your approach or to call attention to another hazard.

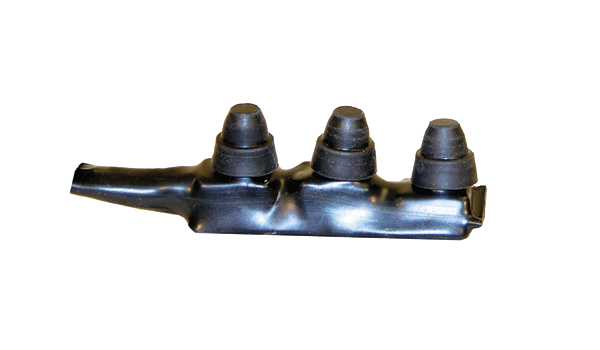

  • Activate the system with a waterproof handlebar switch with three push buttons to control power to siren, power to lights and flash mode of lights.
  • The compact size of both the lights and siren permit mounting in a variety of locations.
  • Heavy-duty compact LED lightheads provide powerfully bright light with a low-amp draw.
  • Each Trio Light has three 3W Luminator LEDs. Diffusing lenses on the outer Luminator LEDs spread light horizontally while the center Luminator LED provides forward light.
  • Customize your kit with a choice of Luminator LED arrays in amber, blue, green, red or white.
  • Black Trio housings have clear polycarbonate lenses to protect LEDs from dust and debris.

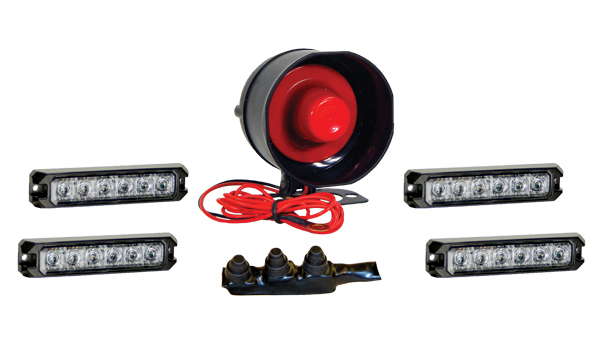

  • Kit includes (4) Trio Lights with 18" wiring, (1) 20W 125db Hi-Lo Siren with 48" wiring, (1) handlebar switch with 48" wiring and mounting brackets.
  • Double-stick tape and Velcro (included) is used to fasten the switch in an easy-to-reach location.
  • 12 Volt
Specifications
Model Amps H x D x L
12.10ATV Kit 7.5A Total
05.0530 9.0A Load 1-1/4" x 3/4" x 4"
10.3604 1.5A Max 4-1/8" x 3-1/8" x 3-3/8"
12.5003 1.5A Max ea. 1-1/2" x 1-1/2" x 5-1/8"
Suggested Retail Price
Suggested retail price
12.10ATV Luminator Trio / Siren ATV Kit $  650.42

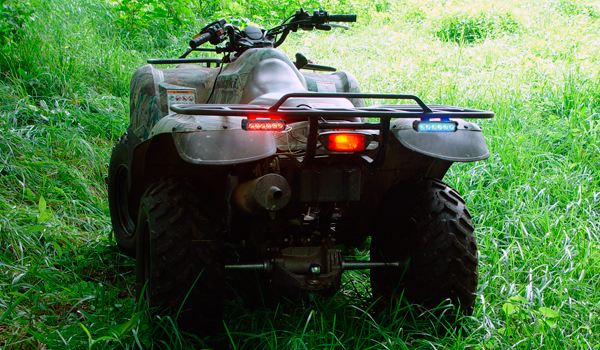

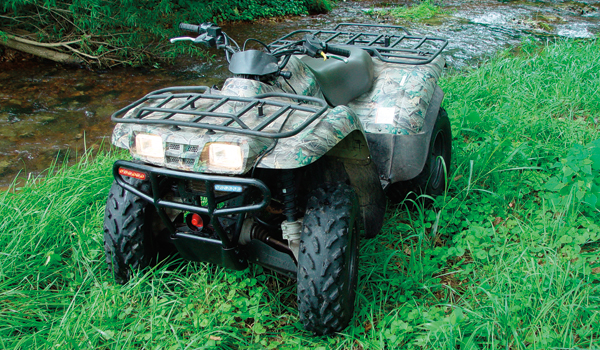

ATV LED & Siren Kit

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
1. Single Alternating Flash - 134 FPM
2. Double Alternating Flash - 268 FPM
3. Quad Alternating Flash - 536 FPM
4. Super Flash - 1070 FPM
5. Single-ON - 134 FPM
6. Quad-ON - 536 FPM
7. Triple Flash - 401 FPM
8. Hyper Flash - 1873 FPM
9. Steady
10. Random
Parts and Accessories
Suggested Retail Price
05.0530 Handlebar Switch $   39.70
10.3604 Hi-Lo Siren $   35.52
12.5003 Luminator LED Trio Light $ 143.80
Instructions
12.10ATV Luminator Trio / Siren ATV Kit View PDF
